Chapter 2 Installation
Connecting a PC or a Terminal to the Console Port
2-38
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02

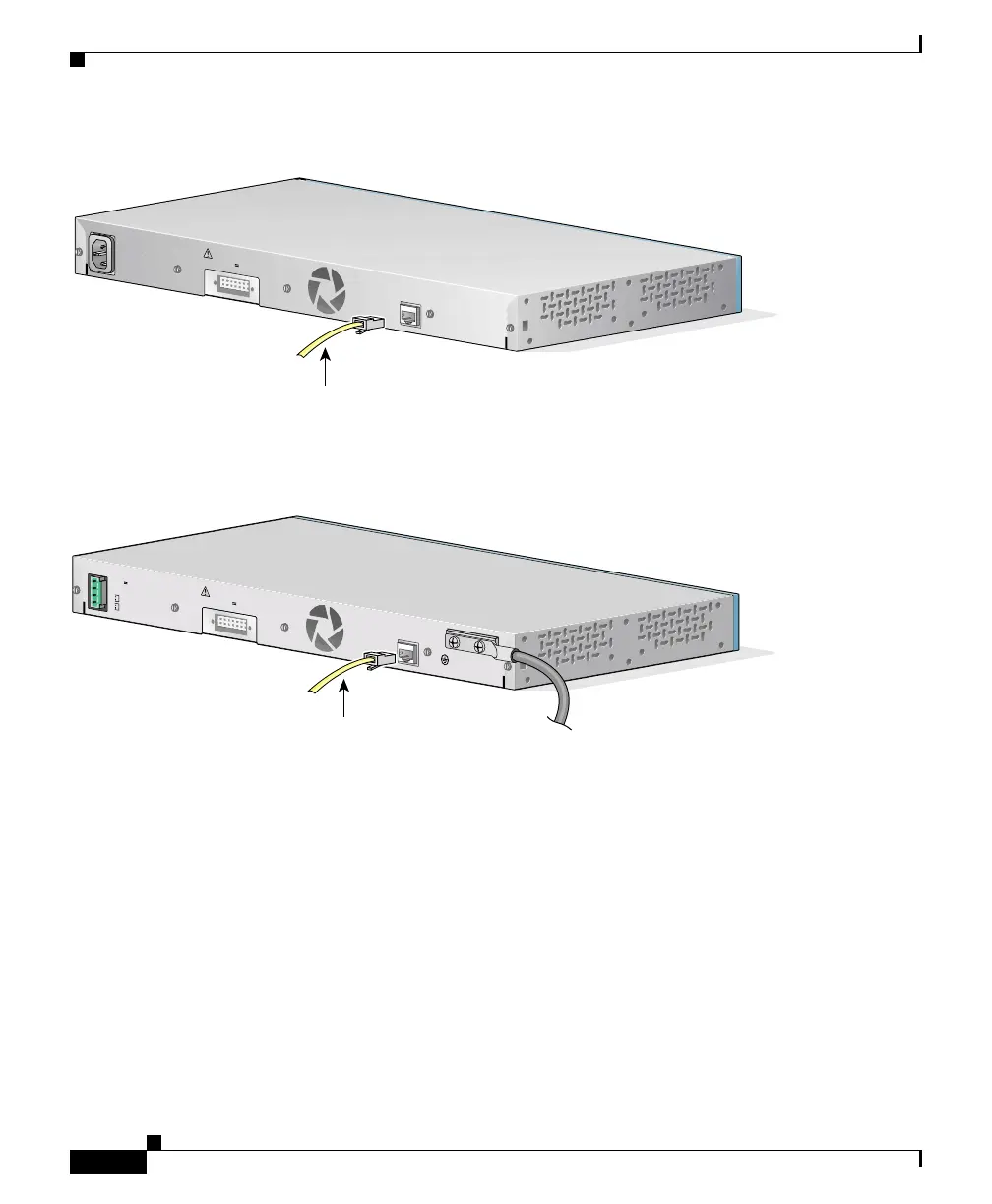

Figure 2-31 Connecting to the Console Port
Figure 2-32 Connecting to a Console Port Only on Catalyst 2950G-24-EI-DC Switches
RATING
100-127V~
@ 1A
200-240V~
@0.5A
50-60Hz
DC INPUT FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL.
+12V @4.5A
CONSOLE
Rollover cable
45586
DC INPUT FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL.
+12V @4.5A
36 - 72V
1 - 0.5A
CONSOLE
A
B
65519
Rollover cable
