Operator's Manual - Encore S20/L20 Page -13-

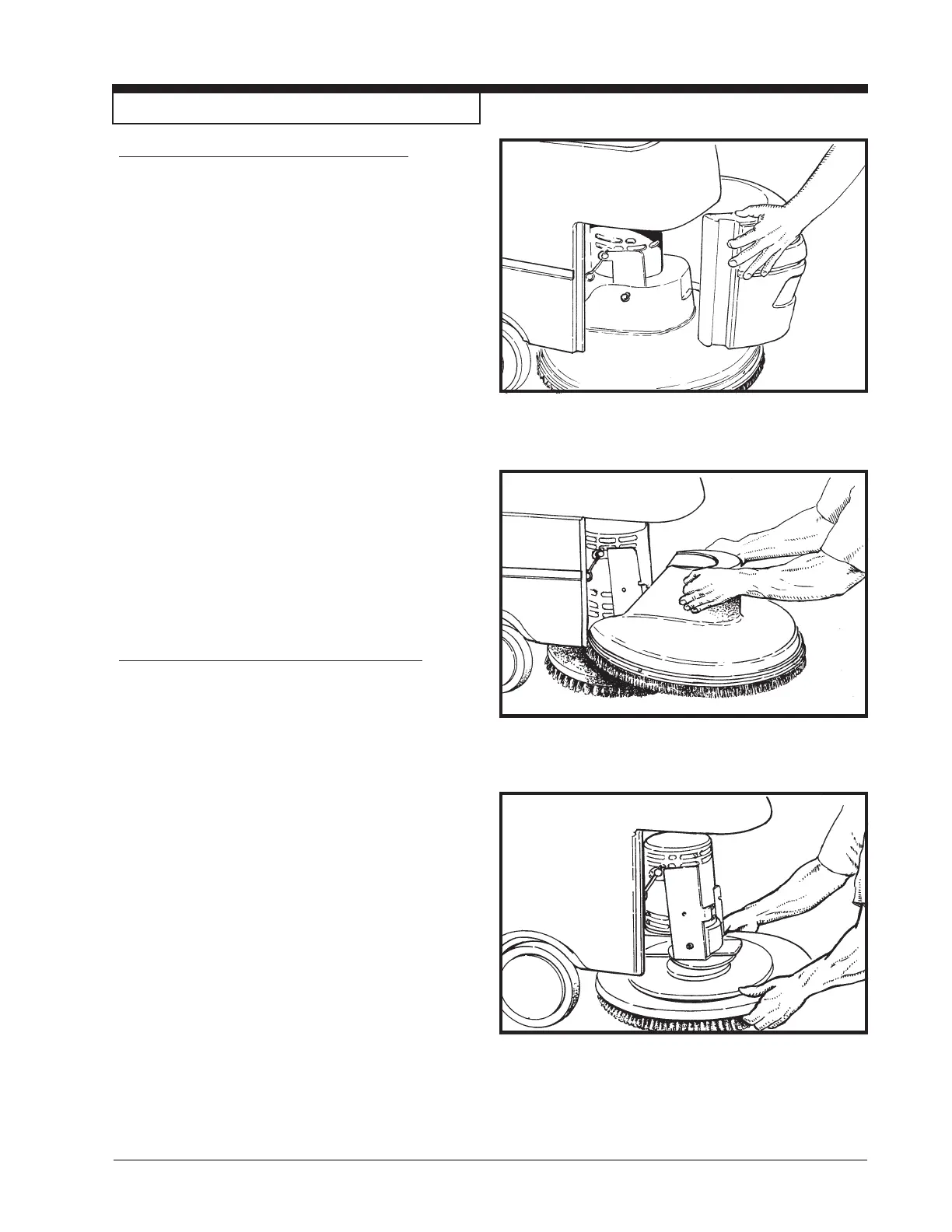

Figure 15a
Figure 15b
Figure 15c
How To Install The Brush Or Pad Driver
To install the brush or pad driver on the machine,
follow this procedure:
1. Turn the key switch "OFF".
2. Put the brush switch in the "UP" position.
3. Go to the front of the machine.
4. Open the brush motor cover and remove the
brush housing. See figures 15a and 15b.
5. Put a brush or pad driver under the brush hous-
ing. See figure 15c.
6. Align the lugs on the motor with the slots in the
brush gimbal.
7. Pull the brush up and rotate counter clockwise
until gimbal locks.
8. Replace brush housing and close brush motor
cover.
How To Remove The Brush or Pad Driver
To remove the brush or pad driver from the machine,
follow this procedure:
1. Put the brush switch in the "UP" position.
2. Turn the key switch "OFF".
3. Go to the front of the machine.
4. Open the brush motor cover and remove brush
housing. See figures 15a-15c.
5. Rotate brush clockwise with a quick snapping
action until brush releases.
6. Replace brush housing and close brush motor
cover.
How To Prepare the Machine For Operation
