Operator's Manual - Encore S20/L20 Page -37-
Ref # Part No. Description Qty.
1 63431A Frame 1
2 87607A Washer, Nylon 1
4 85811A Screw,
5
/16-18 x
3
/4 7
5 85727A Screw,
3
/8-16 x 1 3
6 85836A Screw,
3
/8-16 x 2 1
7 87031A Washer, Flat,
3
/8, SS 8
8 920110 Nut,
5
/16-18 ESNA 7
9 915044 Key,
3
/16 x
3
/16 x 1 2
10 69204B Wheel, Traverse (Grooved) 2
69204A Wheel, Traverse (Smooth)opt. 2
11* 10380A Transaxle (incl 30, 31, 32, 33) 1
12 62435A Clamp, Transaxle 2
13 81105A Nut,
3
/8-16 ESNA 4
14 962620 Screw, Hex,
5
/16-24 x
3
/4 2
15 980652 Washer, Lock,
5
/16 2
16 980205 Washer 2
NOTE: *69165A Transaxle Assembly has been cross-
referenced to 10380A but service parts are still available
Ref # Part No. Description Qty.
17 61675A Caster 1
18 61252A Bracket, Squeegee 1
19 61433A Nut, Spacer 1
20 85391A Screw,
1
/4-20 x
5
/8 1
21 608210 Spacer, Bolt 1
22 51516A Bushing 1
23 980651 Washer, Flat, Plated,
5
/16 4
24 81112A Nut,
5
/16 ESNA Thin SS 1
25 87616A Washer 5
26 57423A Ring, Retainer 2
27 85814A Screw,
5
/16 -18 x 1¼ 1
28 47202A Suppressor 1
29 699202 Wire Tie 2
30 81217A Nut, ¼-20 S.S. Thin 8
31 87026A Washer, Flat ¼ S.S. 8
32 61437A Wheel Assembly 2
33 52827A Transaxle (after serial #AC0068) 1
Transaxle P/N
Qty Description *69165A 52827A
1 Motor, Transaxle 45044A 40579A
1 Coupler, Motor Drive 52660A 50983A
1 Gear Box and Assemlby 69189A 40577A
1 Brush Asm., Comm End 52940A 40578A
2 Sleeve, Elastomeric 51202A 51056A
2 Flange, Wheel Kit 10135A
Clarke
®
Encore L20

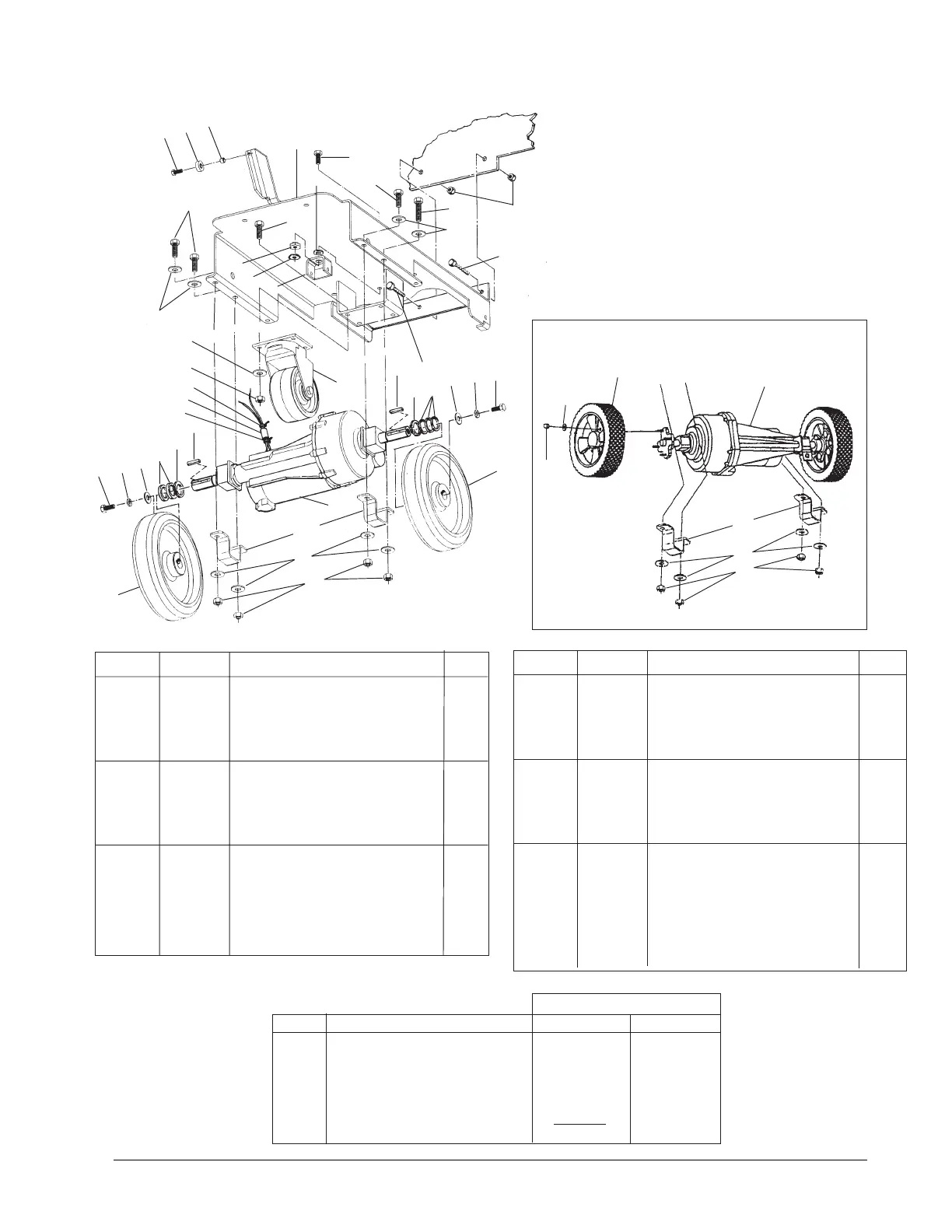

Frame Transaxle Assembly Drawing and Parts List 8/04
4
19
24
4
20
22
21
5
7
23
8
2
4
5
7
6
8
27
16
15
14
17
9
26
25
10
13
7
12
11
10
14
15
16
25
26
9
29
28
29
1
18
Starting with serial #AC0068
30
31
32
33
12
7
13
