Clarke Encore S20 User Manual

Page -36- Clarke
®
Operator's Manual -Encore S20/L20
Clarke
®
Encore S20/L20

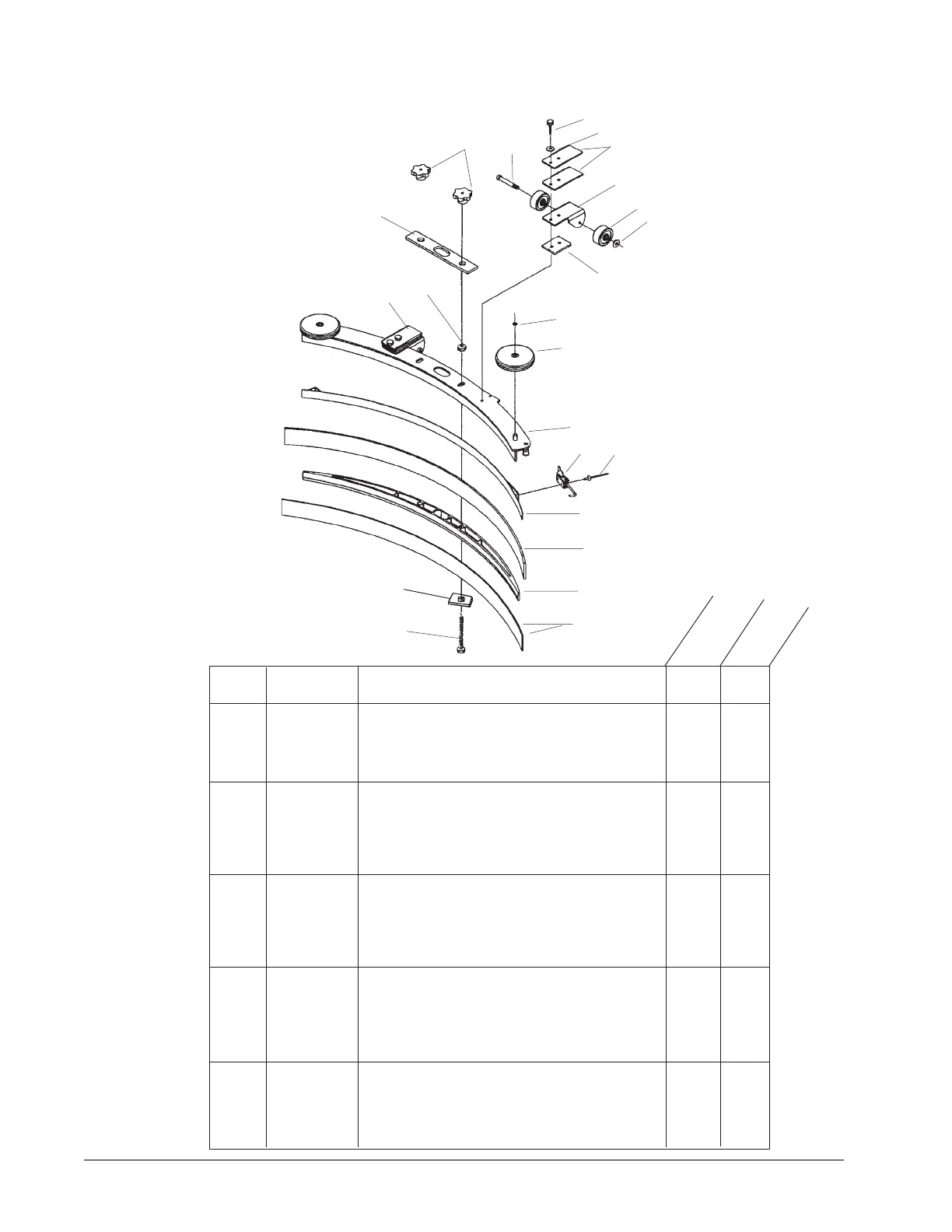

Squeegee Assembly Drawing 6/04
Drawing # 10068A and 10129A (used on machines built after 4-8-03, starting with Serial #AC2077)
39" 32"
Ref. # Part No. Description Qty Qty
1 80252A Screw, ¼-20 x 1 Hex SS - 4
80253A Screw, ¼-20 x 1½ Hex SS 4 -
2 980657 Washer, ¼ Lock 4 4
3 60243A Bracket, Squeegee Wheel 2 2
4 30049B Wheel, Squeegee 4 4
5 81104A Nut, ¼-20 2 2
6 60254A Bolt, Shoulder
5
/16x 2¼ 2 2
7 50958A Ring,
3
/8 ID Snap 2 2
8 30048A Wheel, Guide, 4 Inch Diameter 2 2
9 60272A Channel, Squeegee Weldment 39” 1 -
60234A Channel, Squeegee Weldment 32” - 1
10 50835A Latch, Squeegee Clamp 1 1
11 930086 Rivet, 3/16 x .450 Aluminum 2 2
12 60252A Strap, Clamp, Squeegee Retainer 39” 1 -
60232A Strap, Clamp, Squeegee Retainer 32 - 1
13 30069A Blade, Rear, Gum Rubber, 39” 1 -
30067A Blade, Rear, Gum Rubber, 32” - 1
14 30058A Spacer, Squeegee 39” 1 -
30047A Spacer, Squeegee 32 - 1
15 30091A Blade, Front Ribbed 39” 1 -
30066A Blade, Front Ribbed 32” - 1
16 80011A Screw,
3
/8-16 x 3 2 2
17 81301A Nut,
3
/8-16 Jam SS 2 2
18 34260B Gasket 1 1
19 25201A Knob 2 2
20 60358A Shim, Squeegee Wheel 2 2
21 61370A Weight 8 4
22 80280A Nut, Squeegee Backup 2 2
10068A
10129A
1
2
21
3
4
5
6
20
19
18
7
8
17
21
9
10
11
12
13
14
15
16
22
