Operator's Manual - Encore S20/L20 Page -49-
Clarke
®

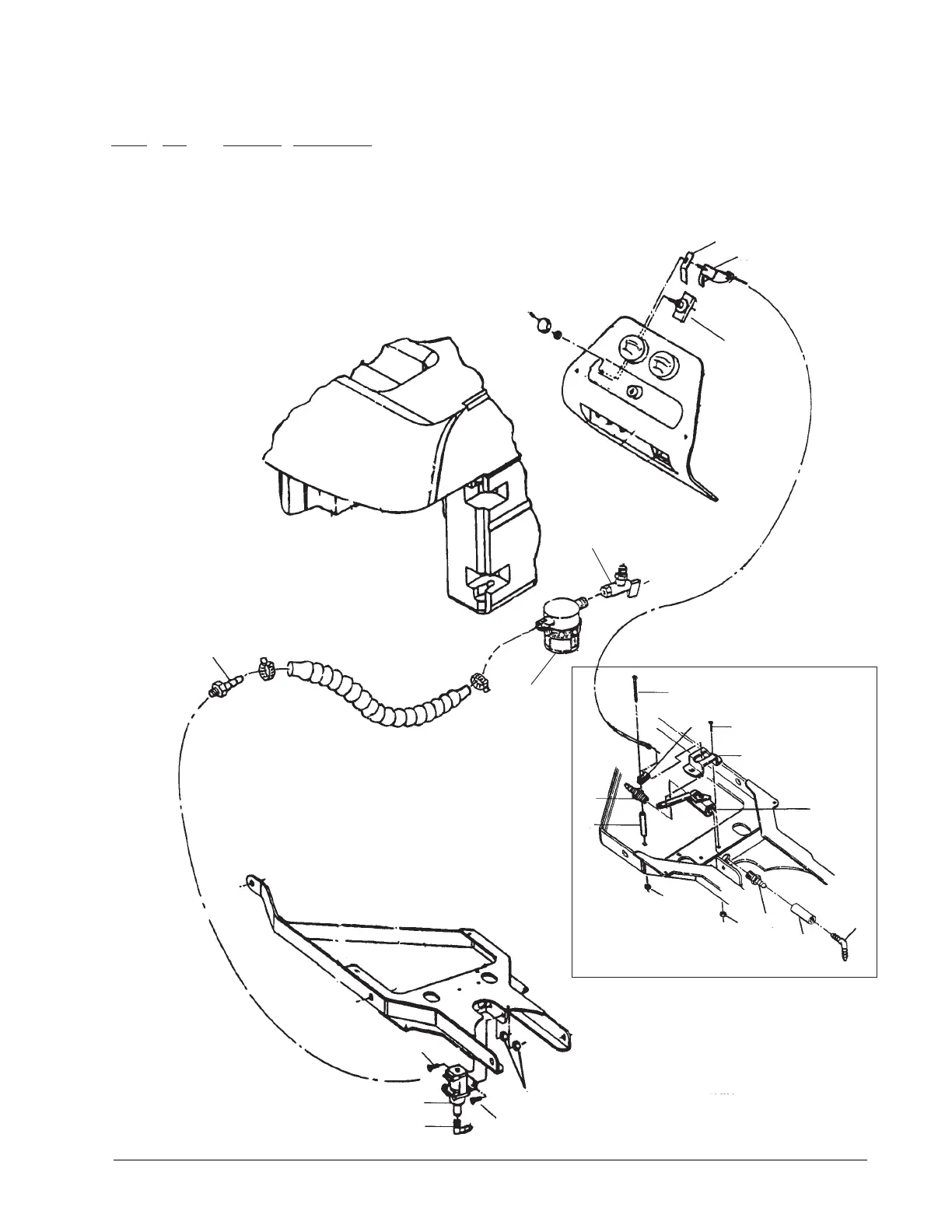

Encore S20 Drawing & Parts List
Electronic Solution Valve Kit 10669A 8/04
(this diagram is for models with Solution Shut-Off)
Parts included in Kit:
Ref # Qty Part No. Description
1 1 53619A Hosebarb, 3/8 x ¼ NPT
2 1 44308A Solution Control Module
3 1 51526A Hosebarb, Elbow
4 1 59610A Solution Valve
5 2 85391A Screw ¼-20
6 2 81104A Nut, ¼-20 ESNA
7 1 30131A Hose, Adapter
(not used on models w/solution shut-off valve)
8 1 51204A Valve Solution
9 1 53562A Filter Bowl
NI 1 49776A Harness, Solution Valve
NI 6 699202 Cable Ties
2
*
NOTE: * indicates parts included in Kit.
NOTE: x indicates parts that are shown
only for removal and are already present
on machine.
Reference pages 32 & 33
1
*
5
*
5
4
*
3
*
x
x
x
x
x
x
x
x
x
x
x
x
x
x
6
*
*
9
8
