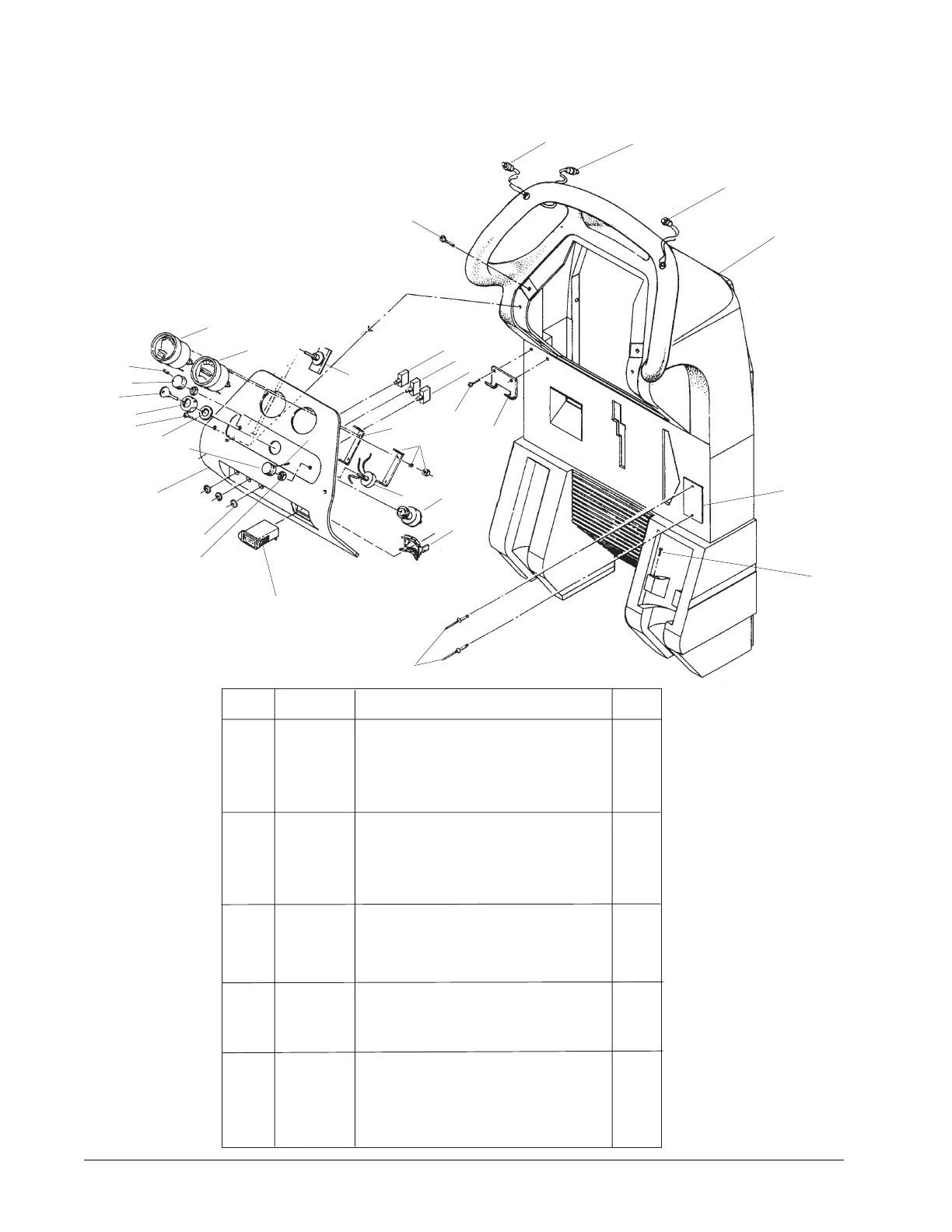

Electrical Cover Assembly Drawing and Parts List 2/03
Ref # Part No. Description
1 40158A Switch, Reverse 1
2 53077B Switch, Forward/Reverse 2
3 32415B Cover, Rear Encore 20L 1
4 962957 Screw 2
5 66987A Hanger, Hose 1
6 84237A Screw 4
7 41433B Breaker, 40 Amp, Brush 1
8 45702A Potentiometer, Asm. 1
(Included w/mach. harness 49765B)
9 47380A Switch, Key 1
10 44308B Control, Flow, Solution 1
11 912226 Meter, Hour 1
12 962262 Screw, Set, 8-32 x ¼ 2
13 55502A Knob 2
14 32405A Panel, Control L20 1
15 87052A Washer, Switch 1
16 55413A Key (included with #9) 2
18 40217B Meter, Battery 1
19 40218A Meter, Brush 1
20 41422B Breaker, 25 Amp, Traverse 1
21 41448B Breaker, 30 Amp, Vac 1
22 85518A Screw, ¼-20 x
3
/4 PN 2
23 83010A Rivet 2
24 70080A Plate (models without brake) 1
70079A Plate (models with brake) 1
NI 47708A ¼ F.I.M.Q.D 6
NI 47712A ¼ F.I.F.Q.D 1
Qty.
L20
12
2
3
4
5
6
7
21
20
18
19
8
9
11
11
8
7
14
12
13
6
15
9
16
13
12
18
19
10
22
23
24
(for machines with a 41150C traverse controller)
