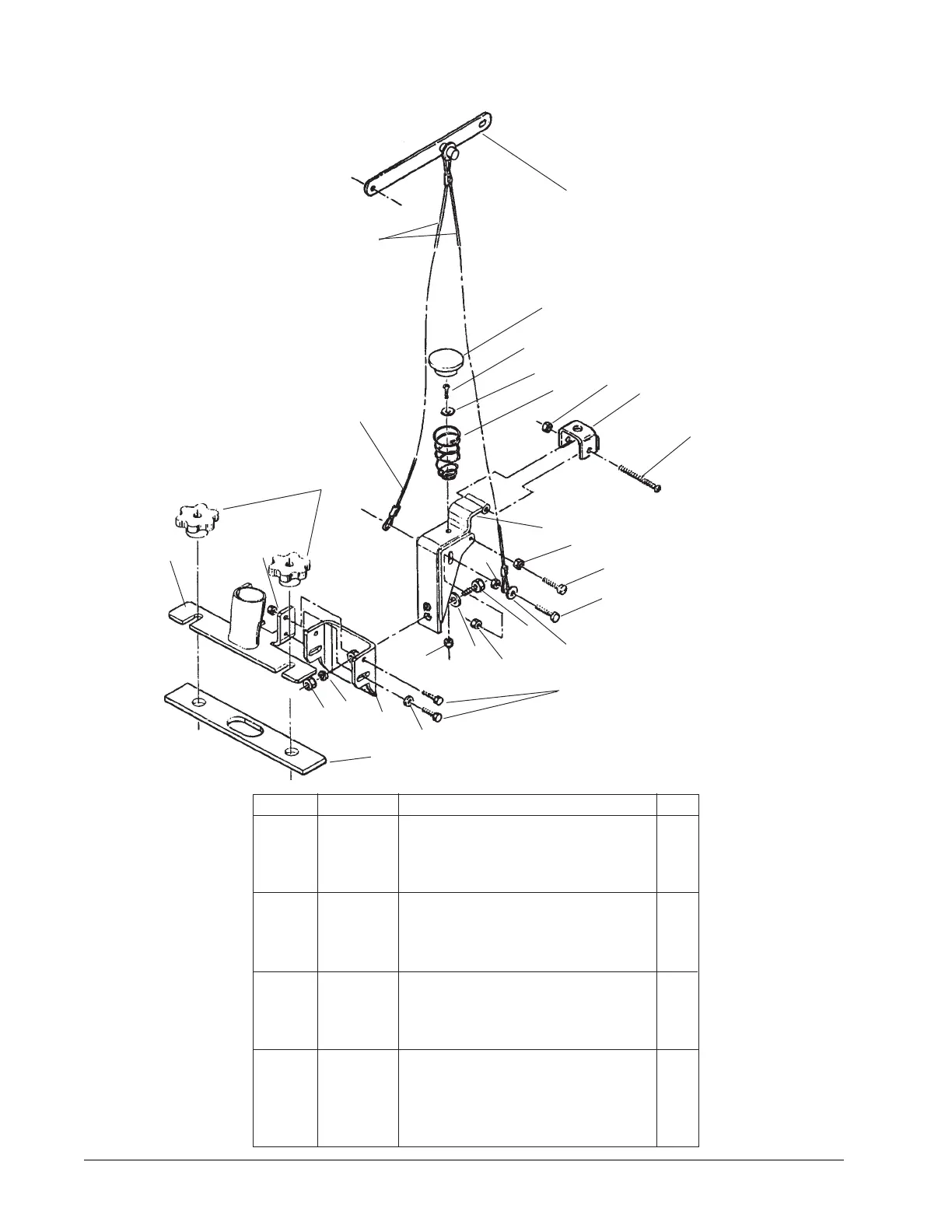

Squeegee Lift Assembly Drawing and Parts List 10/03
Drawing # 18814A
Ref # Part No. Description Qty.
1
ref.21,pg56, 65
Handle -
2 30517A Bushing 1
3 85600A Screw, ¼-20 x
3
/4 1
4 87026A Washer, ¼, SS 3
5 50034A Spring, Squeegee 1
6 81104A Nut, Nylock, ¼ 6
7 85396A Screw, ¼-20 x 2 SS 1
8 60225A Swivel, Squeegee 1
9 170915 Screw, ¼-20 x
3
/4 4
10 920208 Nut, ¼-20, Plated 4
11 962481 Screw, ¼-20 x 1¼ Hex 2
12 85730A Screw,
3
/8-16, Hex 1
13 87031A Washer, Flat,
3
/8, SS 3
14 69860B Pin, Bracket Weldment 1
16 34260B Gasket, Squeegee Ref.
17 61263A Bracket, Tube 1
18 25201A Knob, Clamping Ref.
19 61677A Cable, Lift, Squeegee -
20 86408A Screw, ¼-20x1 Truss 2
21 980638 Lockwasher,
3
/8 LT Spring Type 1
22 81111A Nut, 3/8-16 ESNA 1
1
2
3
4
5
6
ref.
7
8
10
20
11
10
13
12
13
6
6
9
4
14
16
6
17
18
19
19
21
22
