Page -50- Clarke
®
Operator's Manual -Encore S20/L20
Tools Needed:
Adjustable wrench 3/8” diameter drill bit
Short or right angle Phillips
®
screwdriver 7/16” diameter drill bit
Wire strippers 15/32” diameter drill bit
Wire terminal crimpers 7/8” diameter drill bit
Drill motor
Ref # Part No. Description Qty
1 41418B Breaker, Circuit 10 Amp 1
2 47320A Toggle Switch 1
3 49770A Harness, ESP 1
4 47905A Terminal, Male Q.D. 1
5 911933 Terminal, Ring 1
6 920296 Nut, 10-24 ESNA 4
7 980643 Washer #10 8
8 722021 Hose Clamp 2
9 51526A Barb, 90° 1
10 51518A Bushing 1
11 962862 Screw 10-24 x 1½ 4
12 30172A Hose 8” 1
13 692870 Elbow, Swivel 1
14 45937A Pump 1
15 53631A Elbow, Swivel Pump 2
16 722030 Hose clamp 3
17 30451A Hose PVC 1
18 50342A Adapter, Recovery Tank 1
19 56682A O Ring 1
20 980019 Washer, Nylon 1
21 920802 Nut, Nylon 1
22 30452A Hose, Clear 17½” 1
23 55112A Hose Barb 1
24 53997A Filter 1
25 646302 Plate, Switch 1
NI 699202 Cable Ties 12
2
25
2
3
1
5
4
17
9
10
7
11
8
12
8
13
14
6
8
16
24
23
16
22
21
20
19
16
15
18
1
Ref # Part No. Description Qty
Clarke
®

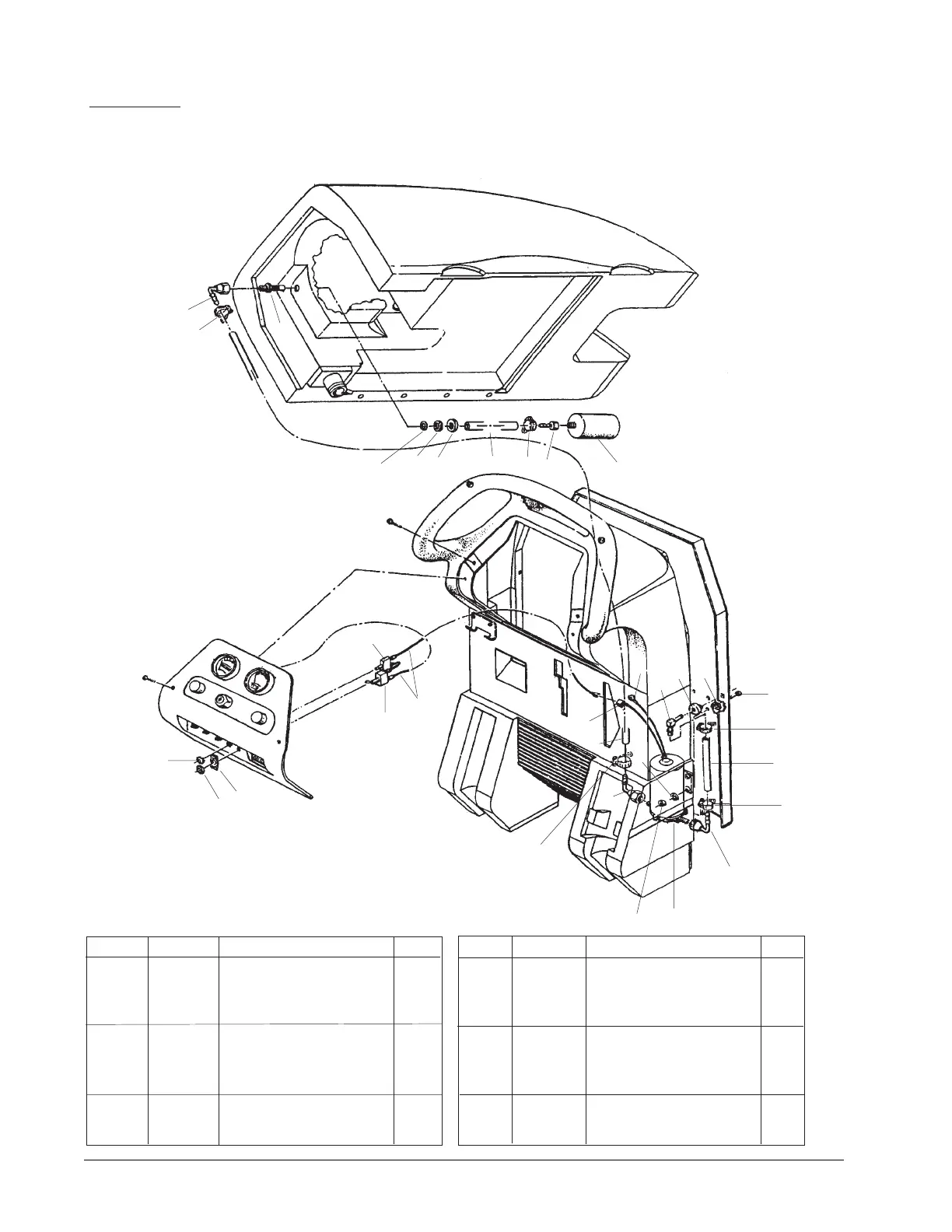

Encore S20/L20 Drawing & Parts List
ESP Recycle System Kit 10663A 7/02
To Next Page
