Operator's Manual - Encore S20/L20 Page -47-
Clarke
®
Encore S20/L20

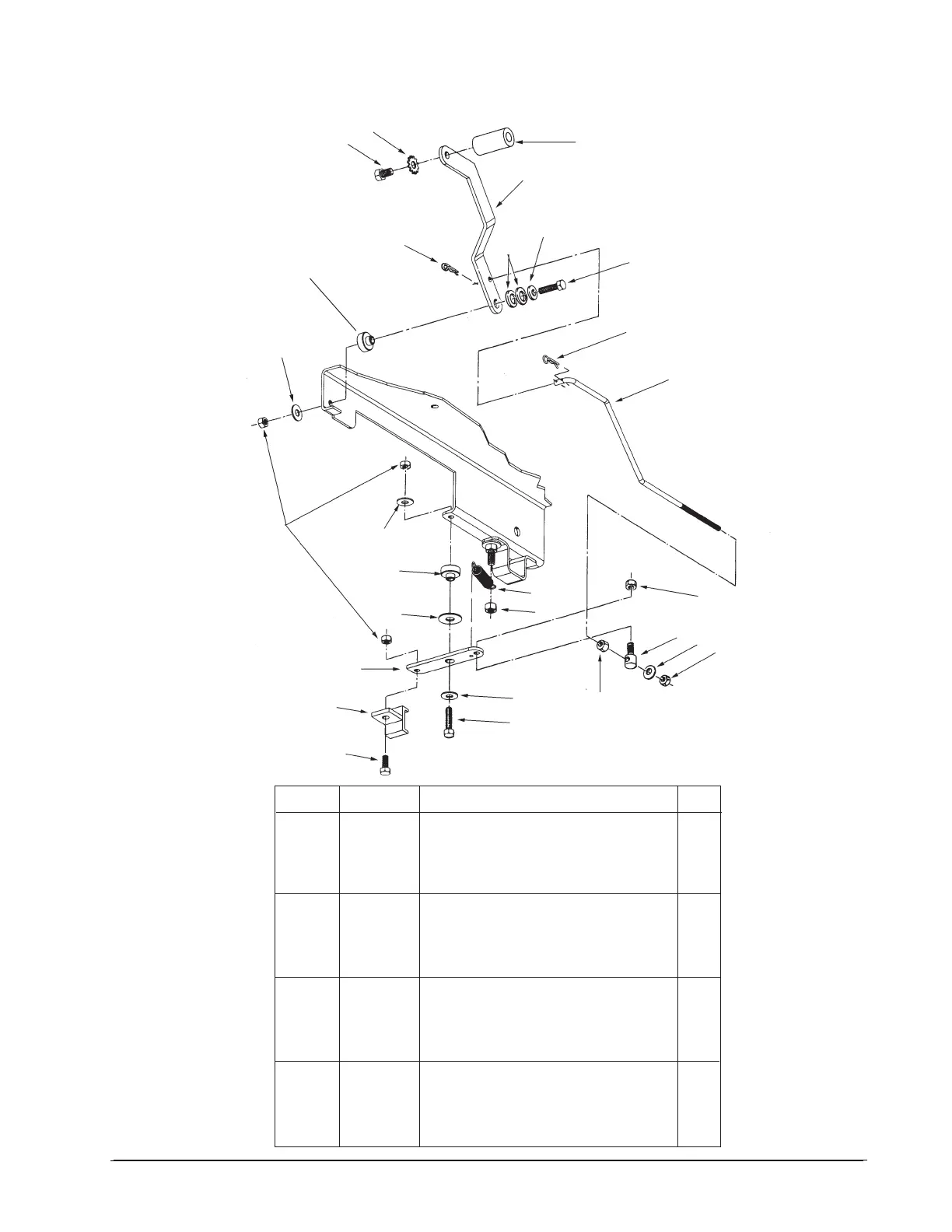

Optional Brake Drawing and Parts List 7/02
Form # 10635A
Ref # Part No. Description Qty.
1 85389A Screw,
3
/8-16 x
5
/8 1
2 980666 Washer, Starlock,
3
/8 1
3 64490A Handle 1
4 65627A Brake, Lever 1
5 980651 Washer, Flat,
5
/16 4
6 85814A Screw,
5
/16-18 x 1¼ 2
7 836711 Clip 2
8 67161A Rod, Brake 1
9 81104A Nut, ¼-20 ESNA 2
10 87026A Washer, Flat, ¼ 1
11 848508 Swivel, Rod, Brake 1
12 920110 Nut,
5
/16-18 ESNA 4
13 848302 Spring, Arm, Brake 1
14 81105A Nut,
3
/8-16 ESNA 1
15 85811A Screw,
5
/16-18 x
3
/4 1
16 66212A Pad, Brake 1
17 60451A Bar, Brake 1
18 87607A Washer, Flat, Nylon, ½ 1
19 67877A Spacer 2
20 980673 Washer 2
1
2
3
4
20
7
5
6
7
8
12
11
10
9
9
13
14
5
6
15
16
18
19
12
5
5
17
19
