Page -58- Clarke
®
Operator's Manual -Encore S20/L20
Clarke
®
Encore S20/L20

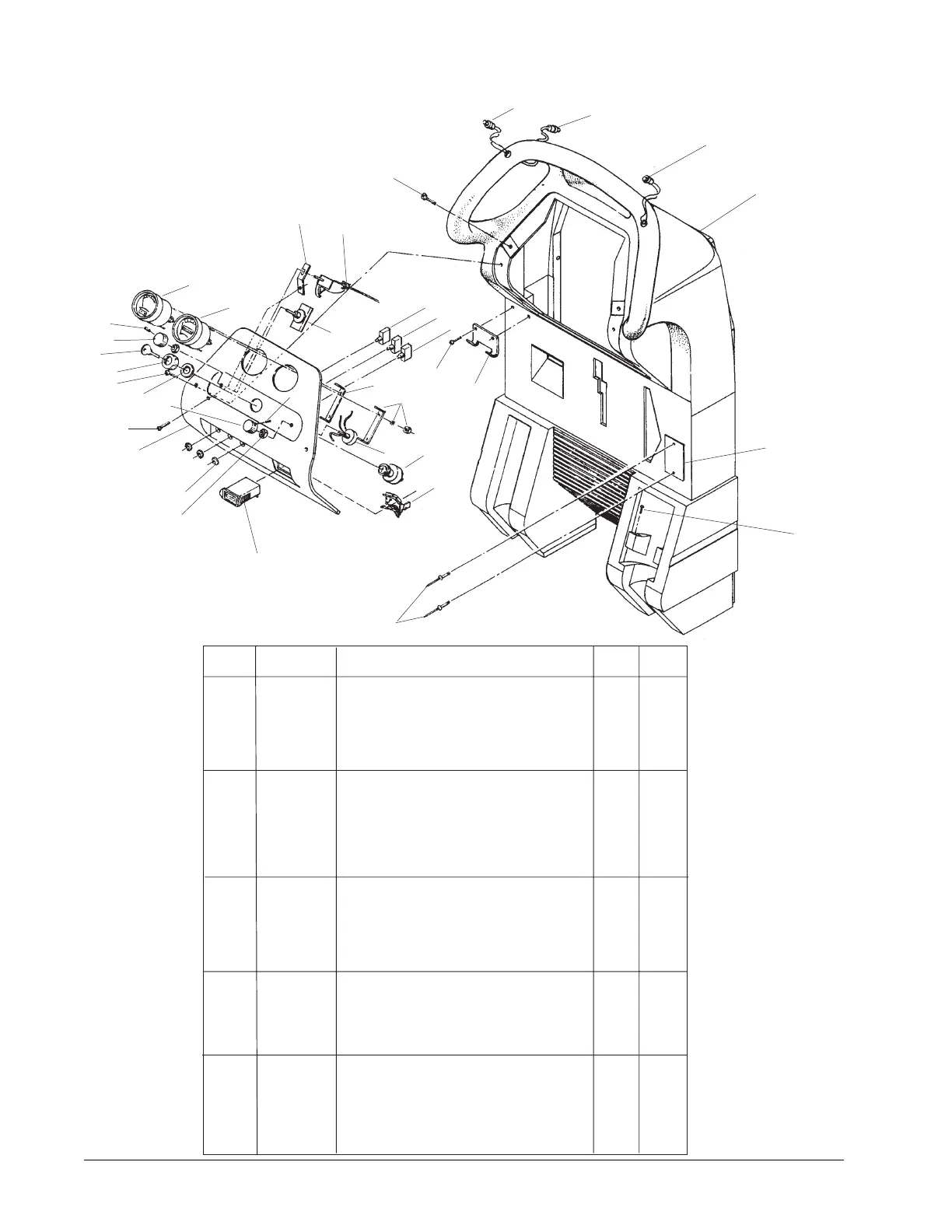

Electrical Cover Assembly Drawing and Parts List 7/02
Ref # Part No. Description
1 53078B Switch, Reverse 1 -
2 53077B Switch, Forward/Reverse 2 -
3 30252A Cover, Rear Encore 20L 1
30253A Cover, Rear Encore 20S 1
4 962957 Screw 2 2
5 66987A Hanger, Hose 1 1
6 84237A Screw 4 4
7 41433A Breaker, 40 Amp, Brush 1 1
8 45702A Potentiometer, Asm. 1 -
(Included w/mach. harness 49765A)
9 47380A Switch, Key 1 1
10 44308B Control, Flow, Solution 1 -
11703A Cable, Solution - 1
11 912226 Meter, Hour 1 -
12 962262 Screw, Set, 8-32 x ¼ 2 1
13 55502A Knob 2 1
14 32405A Panel, Control L20 1 -
32413A Panel, Control S20 - 1
15 87052A Washer, Switch 1 1
16 55413A Key (included with #9) 2 2
17 66988A Retainer, Clip - 1
18 40217B Meter, Battery 1 1
19 40218A Meter, Brush 1 -
20 41422A Breaker, 25 Amp, Traverse 1 -
21 41448A Breaker, 30 Amp, Vac 1 1
22 85518A Screw, ¼-20 x
3
/4 PN 2 2
23 83010A Rivet 2 2
24 70080A Plate (models without brake) 1 1
70079A Plate (models with brake) 1 1
25 85388A Screw 10-24 x ½ TP-F - 1
NI 47708A ¼ F.I.M.Q.D 6 -
NI 47700A ¼ F.I.F.Q.D 1 -
Qty.
L20
Qty.
S20
1
2
2
3
4
5
6
7
21
20
18
19
8
9
11
11
8
7
14
12
13
6
15
9
16
13
12
18
19
10
22
17
10
23
24
25
(for machines with a 41150B traverse controller)
