Clarke
®
Operator's Manual - Encore S20/L20 Page -51-
1
Clarke
®
Encore S20

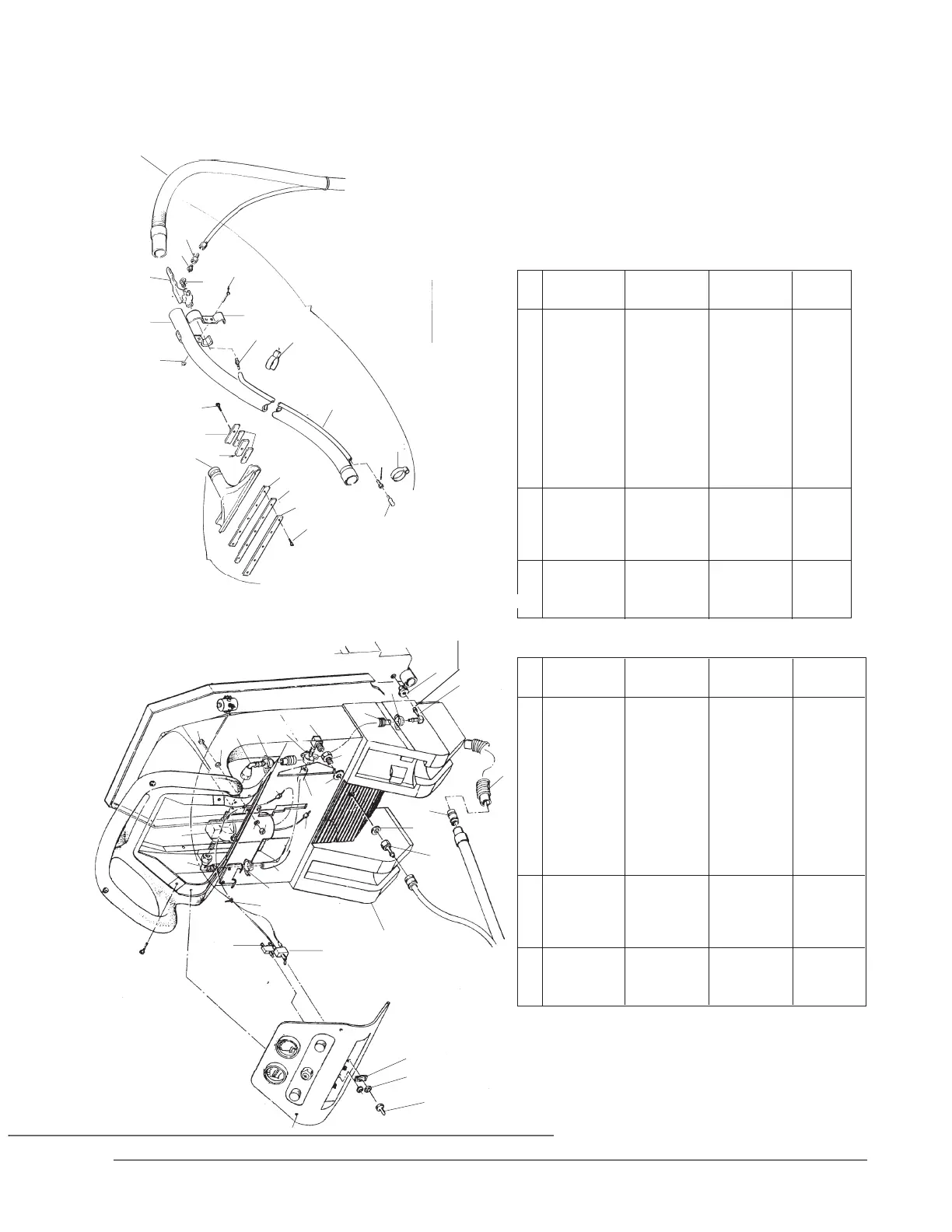

Powerwand System Kit 10662A
Ref # Part No. Description Qty
1 59232A Hose Assembly 1
2 699450 Valve 1
3 639804 Wand Assembly 1
4 920296 Nut, 10-24 Nylok 6
5 962862 Screw, 10-24 x 1½ PN 6
6 646302 Plate, Switch 1
7 19518A Spray Wand Assembly 1
8 47704A Terminal 1
9 30916A Inner Blade 2
10 682012 Blade Clamp 2
11 30917A Blade, Outer 3
12 84200A Screw, 8-32 x ½ FH 5
13 54149A Nozzle, Wand 1
14 722195 Hose Clip 4
15 50301A Adapter 1
16 30421A Hose, Wand 1
17 720271 Adapter 1
18 62426A Clamp, Valve 2
19 722824 Elbow, ¼-45
0
1
20 697501 Reducer 1
21 737140 Q.D. Male 2
22 47320A Toggle Switch 1
23 49771A Harness, Wiring 1
Ref # Part No. Description Qty
24 53607A Elbow, Hosebarb 1
25 722021 Clamp, Hose 4
26 41431A Circuit Breaker 35A 1
27 30450A Hose Clear 14” 1
28 692870 Elbow 2
29 631806 Floor Tool 1
30 45937A Pump - 24V 1
31 911933 Terminal, Ring 1
32 980643 Washer, Flat #10 8
33 751321 Boot, Switch 1
34 51518A Bushing 1
35 51526A Barb 90° 1
36 727595 Reducer 1
37 35138A Hose 1
38 --------- Existing Squeegee Vac Hose (ref.)
39 --------- Rear Cover (ref.)
40 682408 Hose Connector 1
*41 638828 Floor Tool Assembly 1
42 980673 Washer 2
43 962122 Screw 8-32 x 5/8FH 5
44 639002 Tube, Adapter 1
NI 699202 Wire Tie 12
*NOTE: #41 includes- #'s 9-12, 29, 43
21
20
5
19
2
18
14
17
7
3
4
43
44
41 10
9
11
9
11
10
12
16
15
14
13
22
23
26
6
22
33
21
42
40
38
35
34
25
37
24
36
42
25
25
28
32
5
27
8
31
4
32
27
25
28
30
39
Long end of hosebarb goes
into tank.
