Page -48- Clarke
®
Operator's Manual -Encore S20/L20
Clarke
®

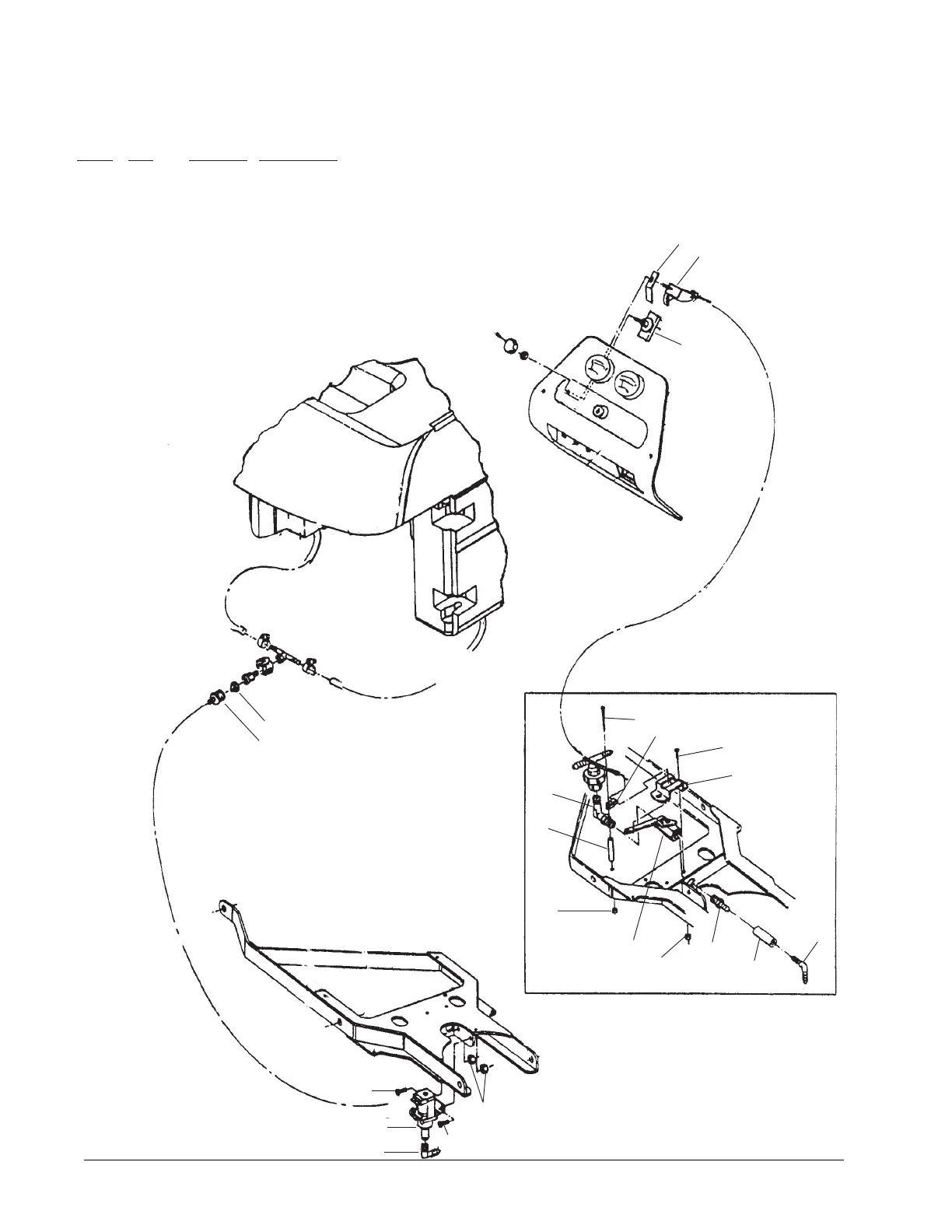

Encore S20 Drawing & Parts List
Electronic Solution Valve Kit 10669A 8/04
(this diagram is for models without Solution Shut-Off)
Parts included in Kit:
Ref # Qty Part No. Description
1 1 53619A Hosebarb, 3/8 x ¼ NPT
(for use on models w/shut-off valve only)
2 1 44308A Solution Control Module
3 1 51526A Hosebarb, Elbow
4 1 59610A Solution Valve
5 2 85391A Screw ¼-20
6 2 81104A Nut, ¼-20 ESNA
7 1 30131A Hose, Adapter
8 1 838517 Filter, Screen
NI 1 49776A Harness, Solution Valve
NI 6 699202 Cable Ties
2
7
8
6
5
5
4
3
*
*
*
*
*
*
*
*
NOTE: * indicates parts included
in Kit.
NOTE: x indicates parts that are
shown only for removal and are
already present on machine.
x
x
x
x
x
x
x
x
x
x
x
x
x
x
