Page -46- Clarke
®
Operator's Manual -Encore S20/L20
Charger Charger
Ref. No. Description 40512A 40513A
1 Charger Case 41129A ----------
2 Transformer ----------- 48409A
3 Electronic Controller Kit 47500A 48200A
4 Capacitor, 660 V.A.C. 912132 912132
5 Heat Sink Assembly 912212 912212
6 Ammeter 40200A 40200A
7 Fuse Holder 912382 912382
8 Strain Relief, A.C. Cord ---------- ----------
9 Strain Relief, D.C. Cord 747553 747553
10 D.C. Cord Assembly 51986A 51986A
11 A.C. Cord Assembly 51974A 908947
12 Housing, Red 911470 ----------
13 D.C. Plug Lock Key 795020 795020
Clarke
®
Encore S20/L20

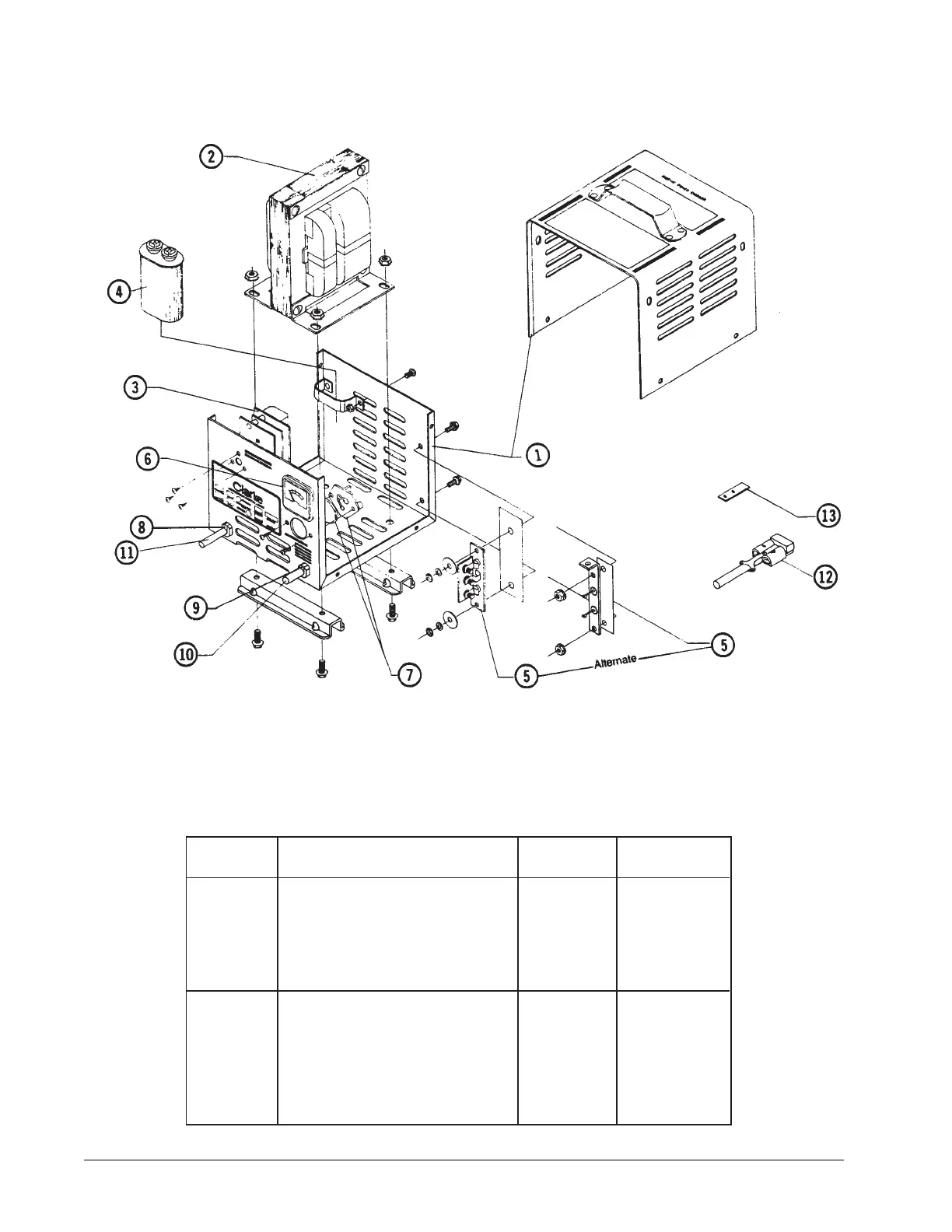

Battery Charger Drawing and Parts List 7/02
Charger #40512A: 24 volt, 25 amp D.C., 115 volt, A.C., 60 Hz.
Charger #40513A: 24 volt, 25 amp D.C., 230 volt, A.C., 50 Hz
WARNING: All electrical repairs must be performed by qualified personnel only.
*
*
*
*
* NOTE: Parts not available at this time.
*
