Operator's Manual - Encore S20/L20 Page -35-
Clarke
®
Encore S20/L20

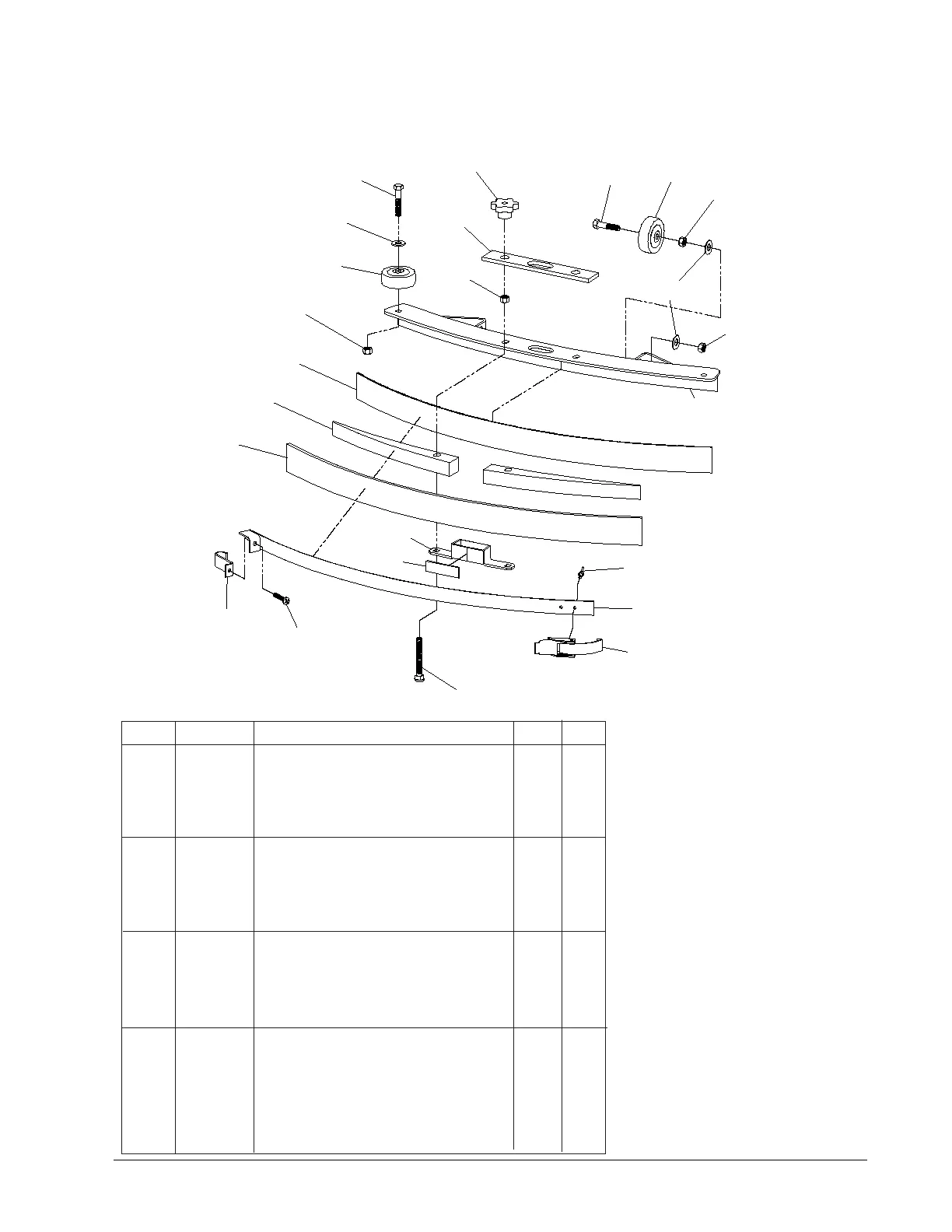

Squeegee Assembly Drawing and Parts List 8/04
29" Asm. - 18820A (Optional)
33" Asm. - 18821A (discontiued, use 10129A)
Ref # Part No. Description 29" 33"
1 962522 Screw, 3/8-16 x 2" Hex 4 4
2 980687 Washer, 15/32 I.D. x 15/16 O.D. 6 6
3 59950A Wheel, Guide 2 2
4 81111A Nut, 3/8-16 ESNA 4 4
5 30950A Blade, Ribbed, Urethane - 1
30951A Blade, Ribbed, Urethane 1 -
6 38713A Spacer, 29" 2 -
38719A Spacer, 33" - 2
7 30931A Blade, Rubber, Outer 1 -
30946A Blade, Rubber, Outer - 1
8 62421A Clamp, End 1 1
9 86004A Screw, ¼-20 x 1½ Hex 1 1
10 62712A Duct, Squeegee Inlet 1 1
11 37016A Pad, Squeegee Grip 1 1
12 80011A Screw, 3/8-16 x 3 CR S.S. 2 2
13 55722A Latch, Squeegee Strap 1 1
14 62441A Clamp, Squeegee 29" 1 -
62445A Clamp, Squeegee 33" - 1
15 170932 Rivet, Pop 3.16 S.S. 1/8" 2 2
16 69059A Squeegee Weldment 29" 1 -
69672A Squeegee Weldment 33" - 1
17 81207A Nut, 3/8-16 S.S. 2 2
18 419702 Wheel 2 2
19 81301A Nut, 3/8-16 Jam S. S. 2 2
20 25201A Knob Ref Ref
21 34260B Gasket Ref Ref
Optional:
NI 30938A Nitrile 29" Outer Blade
NI 30949A Nitrile 33" Outer Blade
NI 30930A Rubber 29" Inner Blade
NI 30947A Rubber 33" Inner Blade
NOTE:
When changing blades loosen nuts #19.
Clamp blades on squeegee. Retighten
#19 nuts. This will allow spacer #6 to
readjust to different blade thickness.
13
14
15
16
4
2
17
18
1
19
21
20
1
2
3
4
5
6
7
10
11
8
9
12
