Operator's Manual - Encore S20/L20 Page -45-
Clarke
®

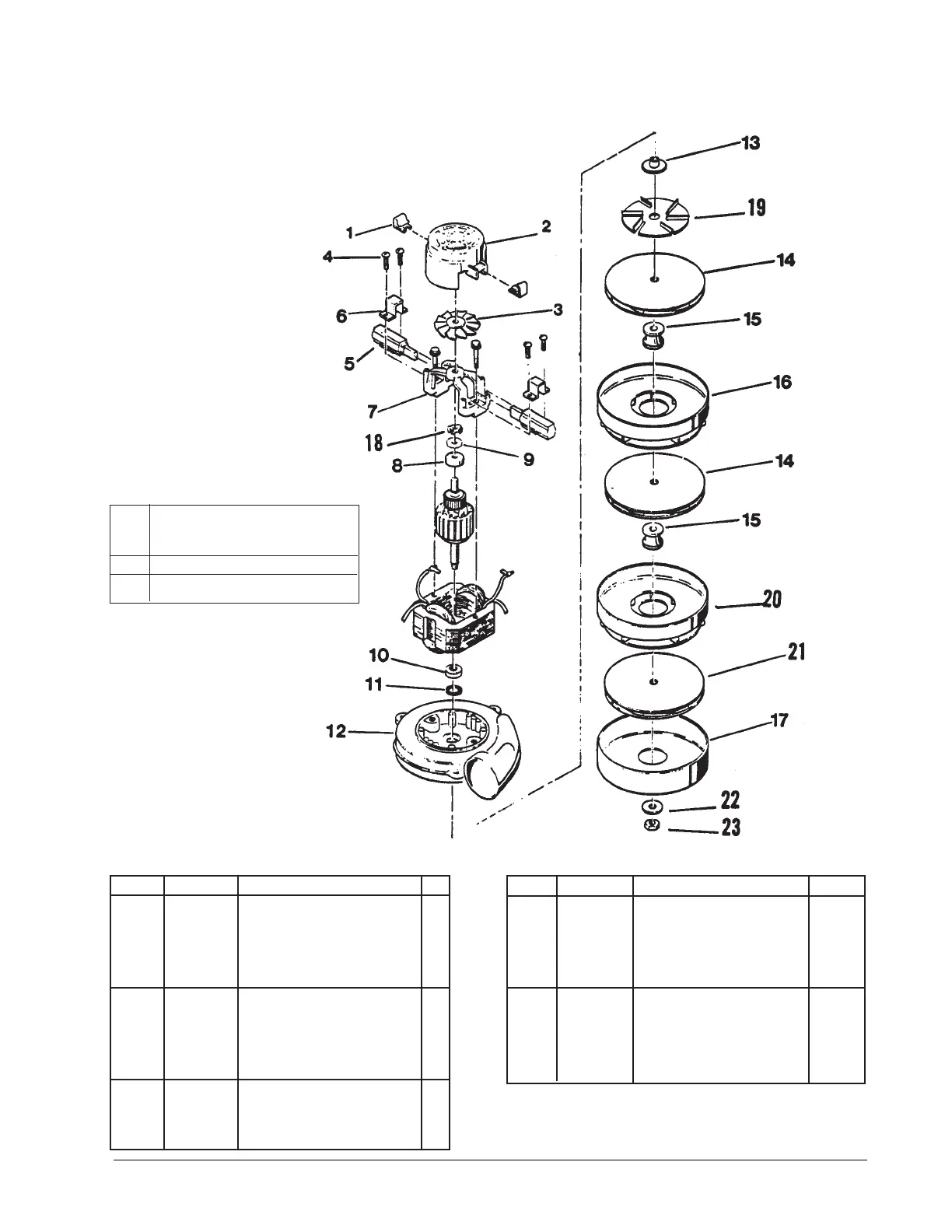

Encore S20/L20
Vacuum Motor Model
Drawing 7/02
Form # 44917A
Ref # Part No. Description Qty
1 Clip (optional) 2
2 54809A Housing Vent 1
3 Fan 1
4 85303A Screw - 8x32 - 3/8 P.N. 4
5 40817A Brush, Mechanism 2
6 Clamp 2
7 50618A Bracket,Commutator End 1
8 Bearing 1
9 672714 Disc 1
10 Bearing 1
11 59803A Washer, Neoprene 1
12 Bracket, Fan End 1
13 Spacer 1
Ref # Part No. Description Qty
14 53914A Fan, Rotating 2
15 658201 Spacer 2
16 Fan, Stationary 1
17 Shell, Fan 1
18 Spring, Load 1
19 Fan, Air Seal 1
20 Fan, Stationary 1
21 Fan, Rotating 1
22 Washer 1
23 Nut 1
*NOTE: Parts not available at this time.
*
*
*
*
*
*
*
*
*
*
*
* Recommended Brush
Replacement
1
st
Replace at 800 hours or if
vacuum motor runs too slow
to pick up water
2
nd
50% of 1
st
3
rd
33% of 1
st
