THE SMART SOLUTION FOR ENERGY EFFICIENCY
MPC MultiProtoCol DDC Controls
November 19, 2018
45
ASW 06, 07, 08 Wall Sensors (LSTAT Sensors)
LSTAT Wall Sensors
The three different types of LSTAT ASW wall sensors feature easy to use analog to digital connections on the MPC.
With only 4 to 5 wire connections, the eld technician can easily troubleshoot to the ASW to determine if it is
operating properly.
Room temperature is measured using a 10k thermister and can be indicated on an easy to read LCD disply (with
display only wall sensor).
The set point adjust is a slide potentiometer which provides an analog output and is available with a warm/cool
legend inprinted on the unit's base. The overide is a momentary, normally open, push contact.
ASW wall sensors are suitable for direct-wall mount or electrical box mounting. Terminations are easily made at the
screw terminal block located on the wall sensor back plate.
Model Description Display
ASW06
Sensory only None
ASW07
Sensor with setpoint adjustment
and override
LED for occupancy status and
fault indication
ASW08
Sensor with setpoint adjustment
and override
LED for occupancy status and
fault indication, digital LCD display

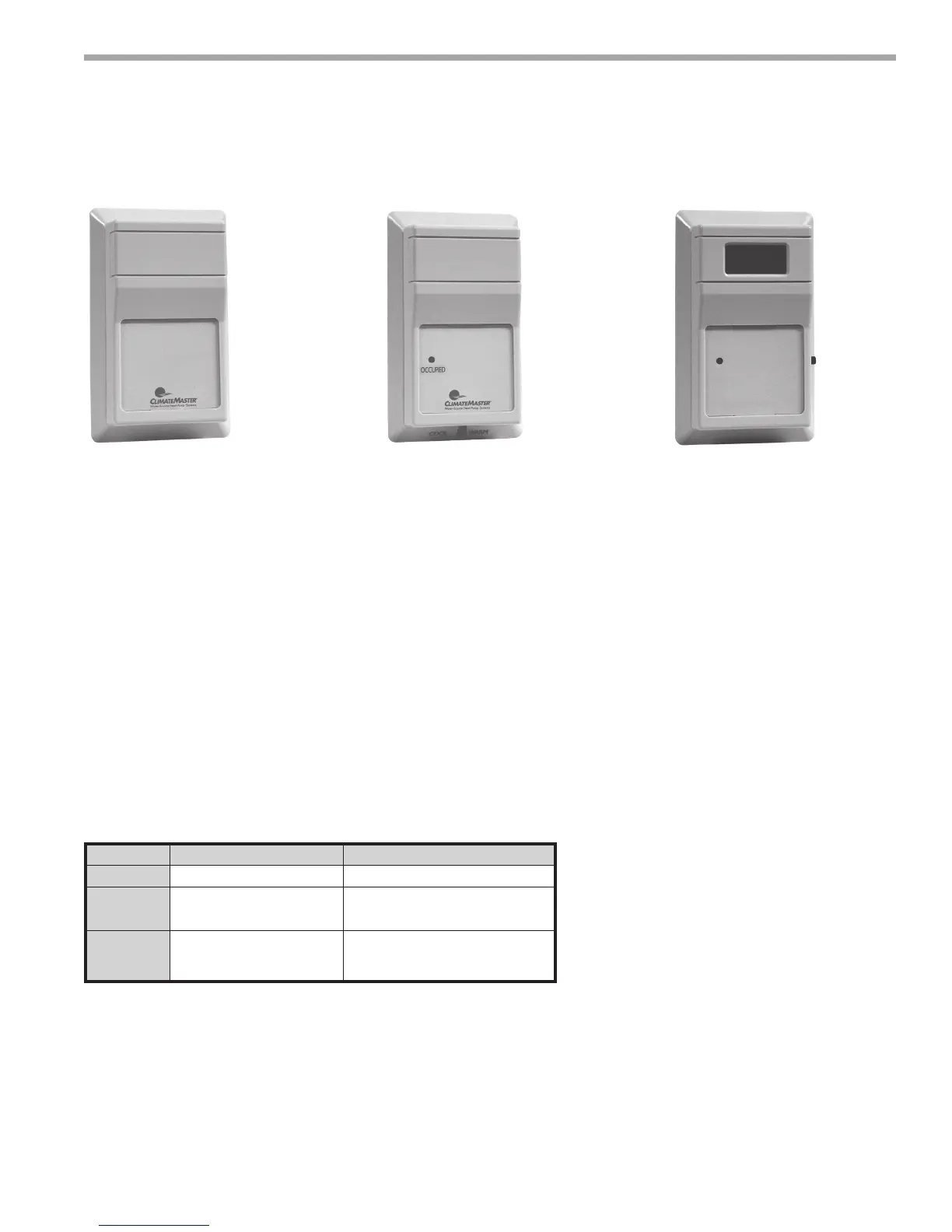

ASW06 ASW07 ASW08
Table 9:
