RNet (ZS) Sensor Setup Screen
Password Protected
This screen allows access to the Enables for the RNET
sensor Alarms. If a Sensor is installed the associated
Alarm Enable must be checked for it to generate an
alarm when not present or non-functional.
1. RNet Sensor 1 Alarm Enable- Checking this will tell
the sensor alarm logic to expect a valid sensor to be
present at Address 1. If it is not present, an Sensor
not present alarm will be generated. This is required
because the unit can have up to 5 zone sensors and
it set to look for all 5 even when only one or two are
present. (It is normally defaulted to checked.)
2. RNet Sensor 2 Alarm Enable- Checking this will tell
the sensor alarm logic to expect a valid sensor to be
present at Address 2.
3. RNet Sensor 3 Alarm Enable- Checking this will tell
the sensor alarm logic to expect a valid sensor to be
present at Address 3.
4. RNet Sensor 4Alarm Enable- Checking this will tell
the sensor alarm logic to expect a valid sensor to be
present at Address 4.
5. RNet Sensor 5 Alarm Enable- Checking this will tell
the sensor alarm logic to expect a valid sensor to be
present at Address 5.
RNet (ZS) Temp Sensor Active Screen
This screen shows which RNet Sensors are detected and
present within the system.
1. RNet Sensor 1- Address 1, Present or Not Present
2. RNet Sensor 2- Address 2, Present or Not Present
3. RNet Sensor 3- Address 3, Present or Not Present
4. RNet Sensor 4- Address 4, Present or Not Present
5. RNet Sensor 5- Address 5, Present or Not Present

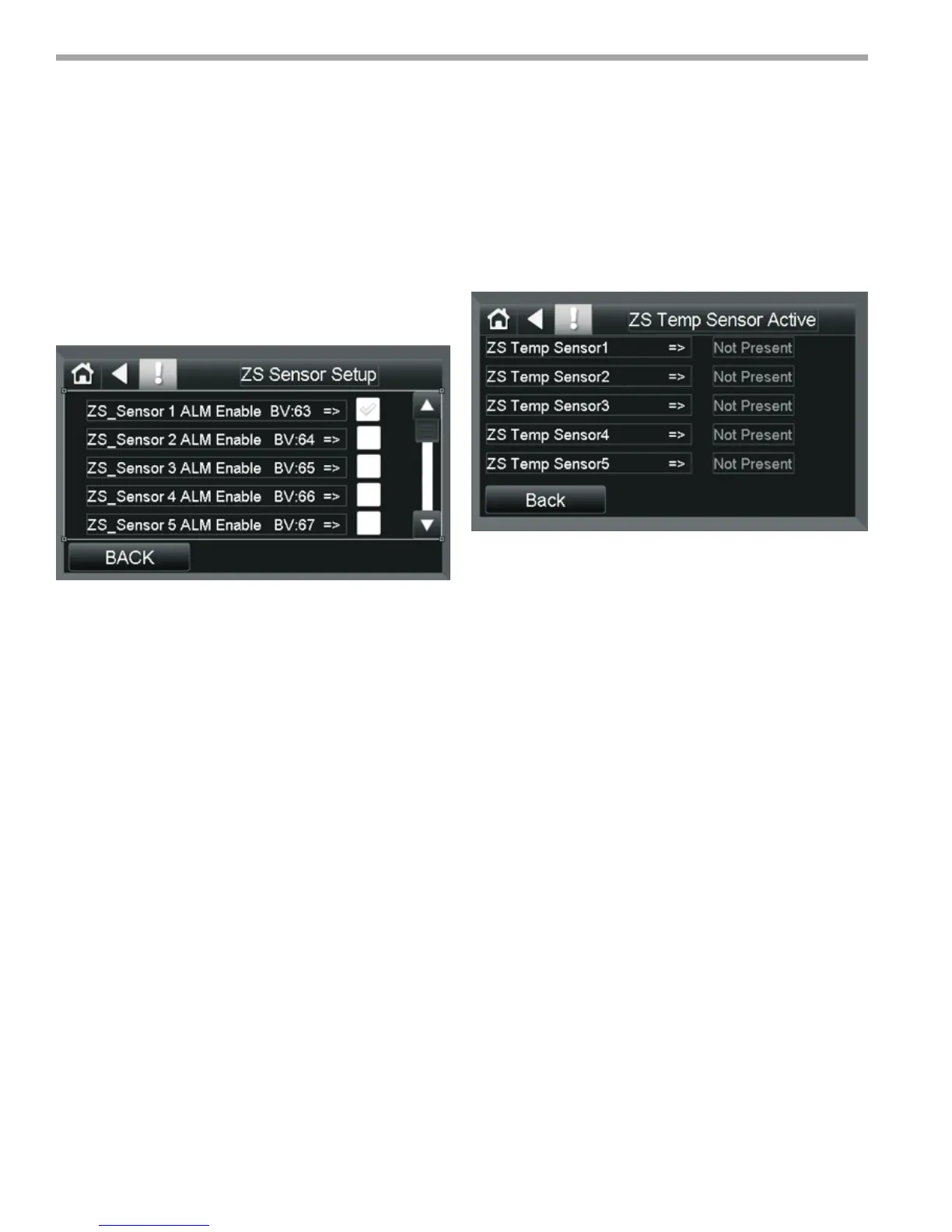

Equipment Touch Screen Descriptions
