Zone Status Screen
This screen allows the user to monitor Zone Temperature
status and PID Outputs. The PID outputs also appear in
the Maintenance Screen.
1. Zone Temp- Reports the Zone or Room Air
Temperature. It will be in F° or C° depending on the
status of the “Metric” Control point (BV:39).
2. Actual CL Setpoint- Reports the Actual Cooling
Setpoint that use the adjustment values and the
setpoints. It will be in F° or C° depending on the
status of the “Metric” Control point (BV:39).
3. Actual HT Setpoint- Reports the Actual Heating
Setpoint that use the adjustment values and the
setpoints. It will be in F° or C° depending on the
status of the “Metric” Control point (BV:39).
4. Cool PID- Displays the output of the cooling PID
calculation. Will between 0 – 100 %. This value also
appears in the Maintenance screen.
5. Heat PID- Displays the output of the heating PID
calculation. Will between 0 – 100 %. This value also
appears in the Maintenance screen.
Sensor Setup/ Status Screen Screen
The Sensor Setup/Status screen allows access to the
RNet Sensor Setup sub-screen and the RNet Sensor
Active Screen. It also contains the RS Sensor Status
and the Sensor Alarm Status. It also has a checkbox
for enabling the internal Equipment Touch Temp and
Humidity sensors.
1. RS TEMP Sensor- Status of the RS Temperature
Sensor, Present or Not Present.
2. Sensor Alarm - ON if one of the RNet Sensors
enabled is missing or not functional.
3. EQ Touch Sensor Enable- Checked to enable
internal Equipment Touch Sensors.
Equipment Touch Screen Descriptions

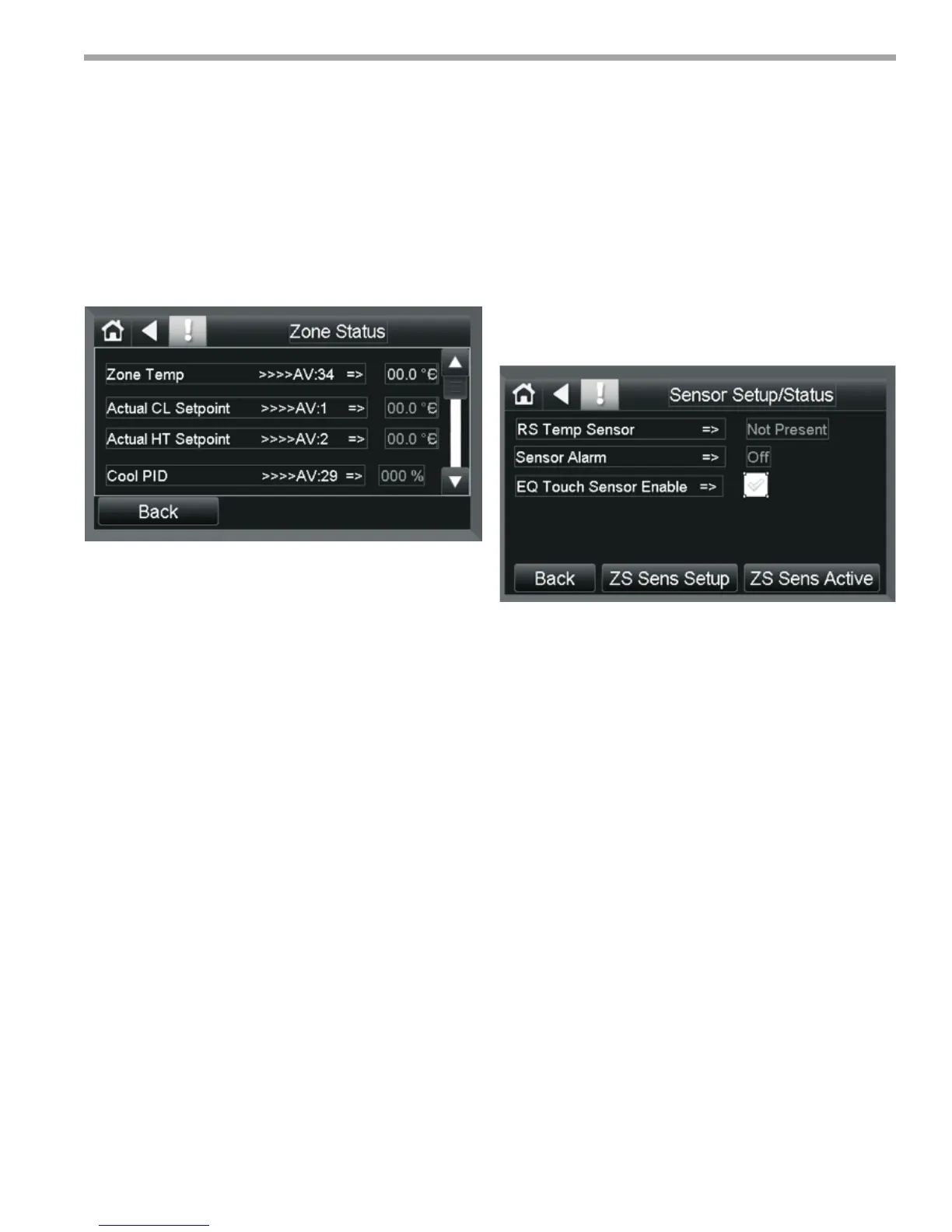

Figure 48:
Figure 49:
