Temperature Units Screen
Password Protected
User can set the Temperature units (Fahrenheit or Celsius)
via the (BV:39) checkbox and determine the current tem-
perature mode selected. Checking (BV:39) selects Metric
(Celsius) mode. The Help button takes the user to a Help
screen that explains the settings available in this screen.
1. Current Mode - displays the current Temperature
mode in Celsius or Fahrenheit, whichever is selected.
2. Metric Mode - Selection point (BV:39), Check to put
unit in Metric or Celsius mode.
Temperature Setpoints Screen
Password Protected
Gives the user access to all Temperature Related
Setpoints available in this screen. It also provides access
to the Manual Setpoints screen via the Manual SP button.
1. Master ZT – Sets the Master Zone Temperature
setpoints (F°/ C°).
2. UnOcc DB - Sets the Unoccupied Dead Band
setpoints (F°/ C°).
3. Occ DB – Sets the Occupied Dead Band Setpoints
4. UnOcc HTSP - Sets the Unoccupied Heating
Setpoints (F°/ C°).
5. Occ HTSP – Sets the Occupied Heating Setpoints
(F°/ C°).
6. UnOcc CLSP - Sets the Unoccupied Cooling
Setpoints (F°/ C°).
7. Occ CLSP – Sets the Occupied Cooling Setpoints
(F°/ C°).
8. Slave HTSP – Sets the Slave Heating Setpoints
(F°/ C°).
9. Slave CLSP – Sets the Slave Cooling Setpoints
(F°/ C°).
Equipment Touch Screen Descriptions

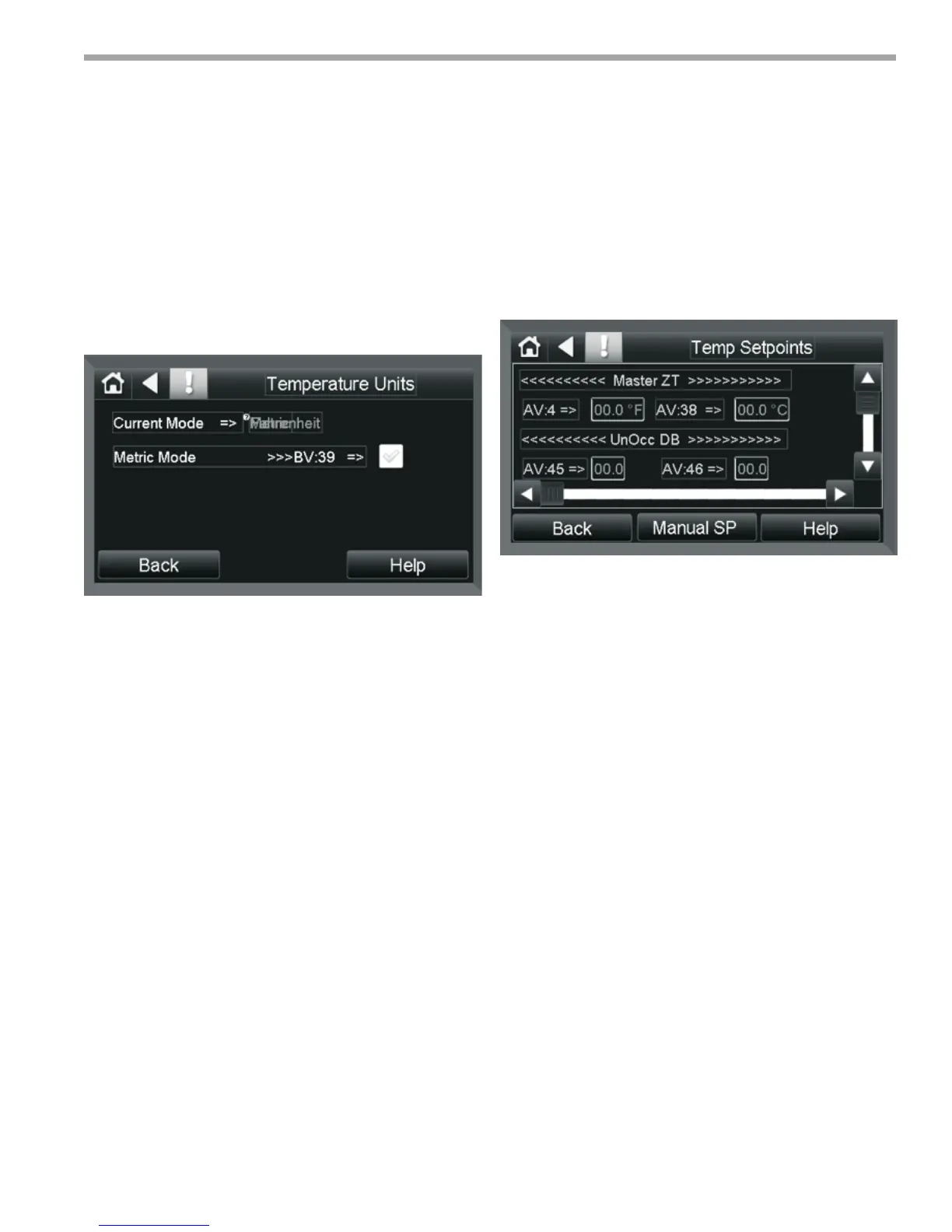

Figure 29:
Figure 30:
