ClimateMaster MPC User Manual

THE SMART SOLUTION FOR ENERGY EFFICIENCY
MPC MultiProtoCol DDC Controls
November 19, 2018
56

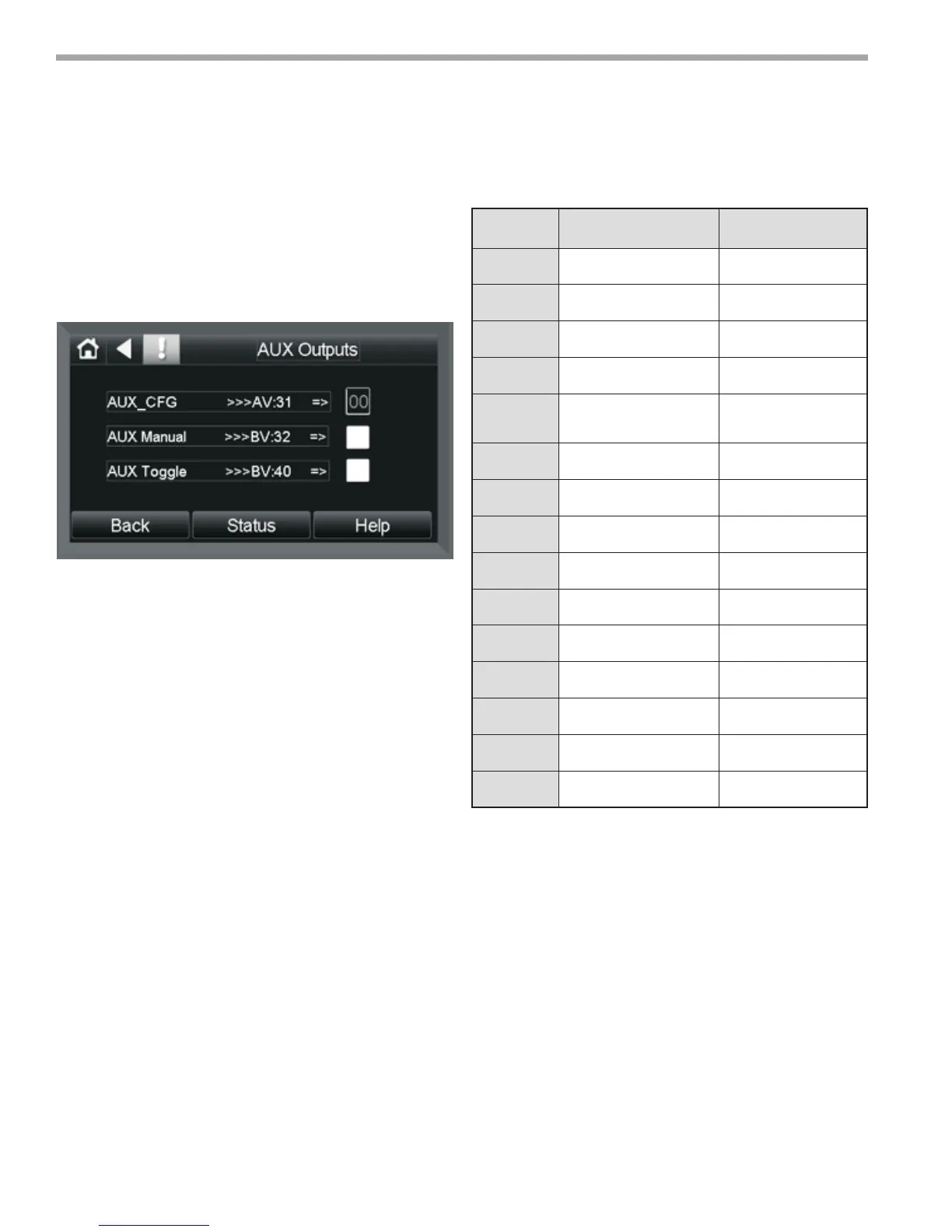

Aux Outputs Screen
Password Protected
This Screen allows user to set AUX Cong, AUX Manual
and Aux Toggle in addition to monitoring the same via
the Status sub screen.
1. AUX_CFG - Controls the output function of the AUX
output dependent on the value of AV: 31. See Table
to the right.
2. AUX_Manual - AUX Manual will turn on/ turn off
the AUX output. Must be in TEST Mode for this to
function.
3. AUX_TOGGLE - Sets the Value of the AUX output
while in AUX TOGGLE Mode.
AUX_CNTL
Function of
AUX Output
Behavior
1
Emergency Electric Heat
AUX ON if PID > 90%
Demand
2
Cycle with Compressor
AUX ON when
Compressor (C1) ON
3
Cycle with FAN
AUX ON when FAN( SF)
ON
4
Slow Opening Water Valve
AUX ON with C1 or C2
Demand Call
5
High Speed Fan
AUX ON if HMODE or
CMODE < FAN Speed
Trigger
6
Alarm Relay Output
AUX On anytime
ALARM is True
7
Reheat ICM & DXM STD
Reheat with MPC SF,
C and RV on
8
Reheat ICM & DXM REV
Reheat with MPC SF,
C and RV on
9
Reheat DXM STD
Reheat with MPC SF,
C and RV off
10
Reheat DXM REV
Reheat with MPC SF,
C and RV off
11
AUX Toggle
AUX will assume value
of BV:40
12
Relative Humidity Mode
AUX ON anytime RH
Exceed Trip Point
13
CO2 Trip Point Exceeded
AUX ON anytime CO2
Exceed Trip Point
14
VOC Trip Point Exceeded
AUX ON anytime VOC
Exceed Trip Point
15
Full Time Electric Heat
AUX ON anytime
Heating Call made.
Equipment Touch Screen Descriptions
Figure 35:
Table 12:
