THE SMART SOLUTION FOR ENERGY EFFICIENCY
MPC MultiProtoCol DDC Controls
November 19, 2018
57

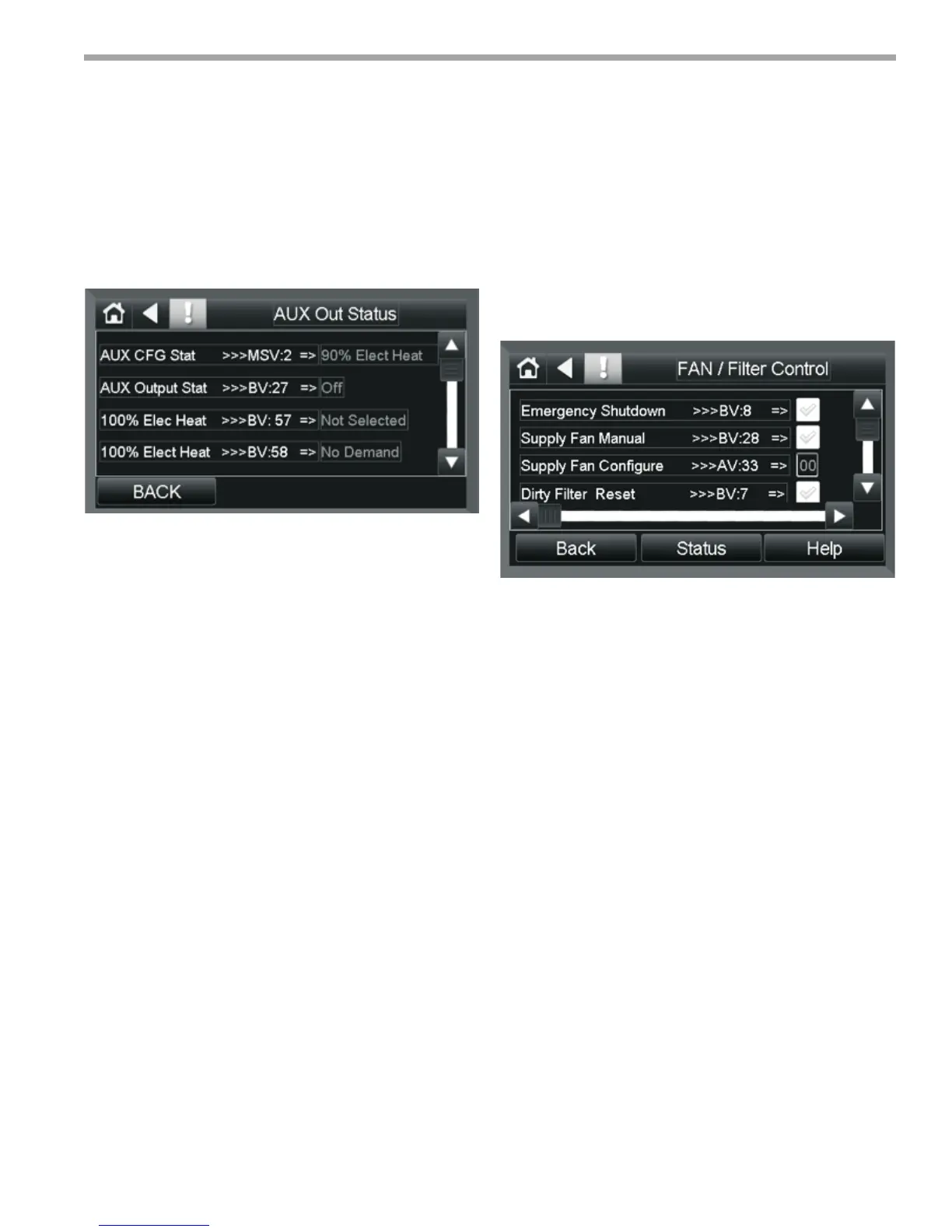

Aux Outputs Status Screen
This Screen allows user to set AUX Cong, AUX Manual
and Aux Toggle in addition to monitoring the same.
1. AUX CFG Stat - Reports current AUX CFG Setting.
2. AUX Output Stat - Repots the current state of the
AUX output.
3. 100% Electric Heat - BV:57 Reports if this mode is
selected or not selected.
4. 100% Electric Heat - BV:58 Reports if there is
ELECTRIC HEAT demand or no demand.
Fan/ Filter Control Screen
Password Protected
Provides access to all control points associated with
controlling the FAN or the Dirty Filter alarming function.
Also provides access to FAN / Filter Control Status
Screen.
Control Points associated with this screen are
described below:
1. Emergency Shutdown - This point shuts down the
fan, compressors and all associated control logic.
2. Supply Fan Congure - This point is used to control
the action and behavior of the supply fan.
1 => ON by demand, Occupied or Unoccupied.
2 => On while Occupied and ON by demand in
unoccupied hours.
3 => ON all the time.
3. Dirty Filter Reset - Resets the Dirty Filter Timer
back to Zero.
4. Dirty Filter Interval - Allows setting of time interval
for Dirty Filter. Must be in Time Mode.
5. Dirty Filter Sensor - Checking this option allows
(BI:8) to function as pressure input for Dirty Filter
Detection.
6. Fan Speed Enable - Forces AUX out to ON state
when in HIGH SPEED FAN Mode.
7. Fan Speed Triger Type - Sets the Trigger point for
the high speed fan AUX output (W) when in HIGH
SPEED FAN Mode. Should be between 41 and 99%.
Equipment Touch Screen Descriptions
Figure 36:
Figure 37:
