THE SMART SOLUTION FOR ENERGY EFFICIENCY
MPC MultiProtoCol DDC Controls
November 19, 2018
65

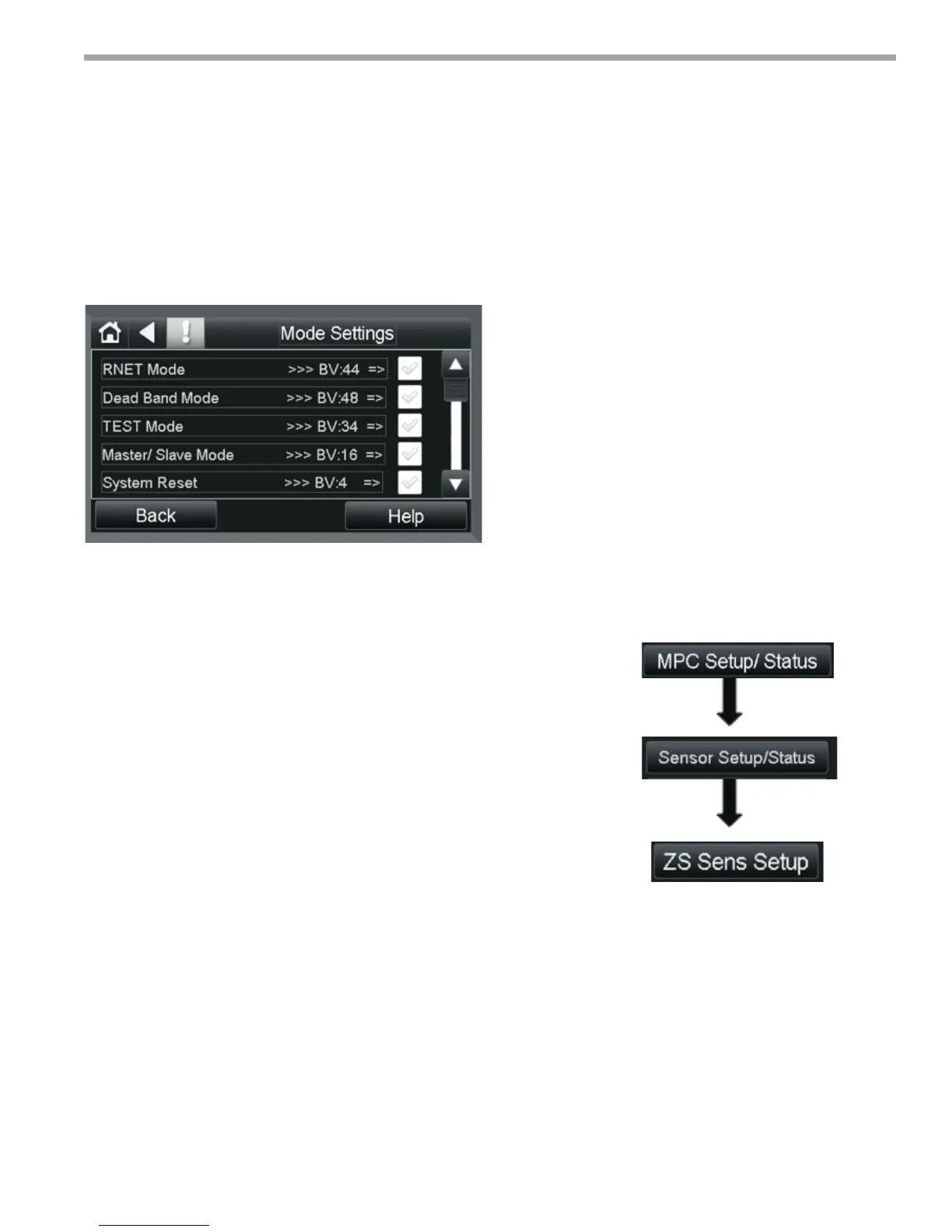

Mode Settings
Password Protected
This screen contains mode settings used to congure
and test the MPC unit.
1. RNet Mode- allows the MPC to function with LS
Sensors when RNet is OFF. Also allows monitoring of
inputs 5 and 6 (temp or dry contact) when an RNet
sensor is used.
2. Dead Band Mode- DB Mode allows the use of
either Heat / Cool setpoints for Gen 5 or Cooling /
Dead Band like Gen4 and prior versions.
3. TEST Mode- Shuts everything down so that the
Compressors, Supply Fan and Reversing Valve can
be tested manually via their associated manual
control points.
4. Master/Slave Mode- Checking this box puts the unit
in slave mode.
5. System Reset- Reset the MPC.
Initial Sensor Setup
Revision 7 programming and later can handle up to 5
-RNet Sensors connected in parallel or one RS sensor
(Obsolete). The Equipment Touch itself can also function
as a temperature/Humidity in place of the RNet/RS
sensors. All setup and screens related to sensor function
is covered below.
RNet Sensor Setup
The RNet sensor address must be between 1 and 5. Set
the address on the back of the sensor as required. It is
best to start at one and increase the address for each
additional unit connected. Make sure all of the required
sensors are wired up and connected properly to the
RNet Connector.
Equipment Touch has an alarm feature that will set off
an alarm if the Alarm Enable is selected and no sensor is
present. The ALARM will reset automatically anytime a
sensor is plugged in after the ALARM has triggered.
To congure the Equipment Touch for RNet sensors.
Navigate to the following menu
(RNet (ZS) Sensor Setup)
Equipment Touch Screen Descriptions
Figure 52:
Figure 53:
