ClimateMaster MPC User Manual

THE SMART SOLUTION FOR ENERGY EFFICIENCY
MPC MultiProtoCol DDC Controls
November 19, 2018
52

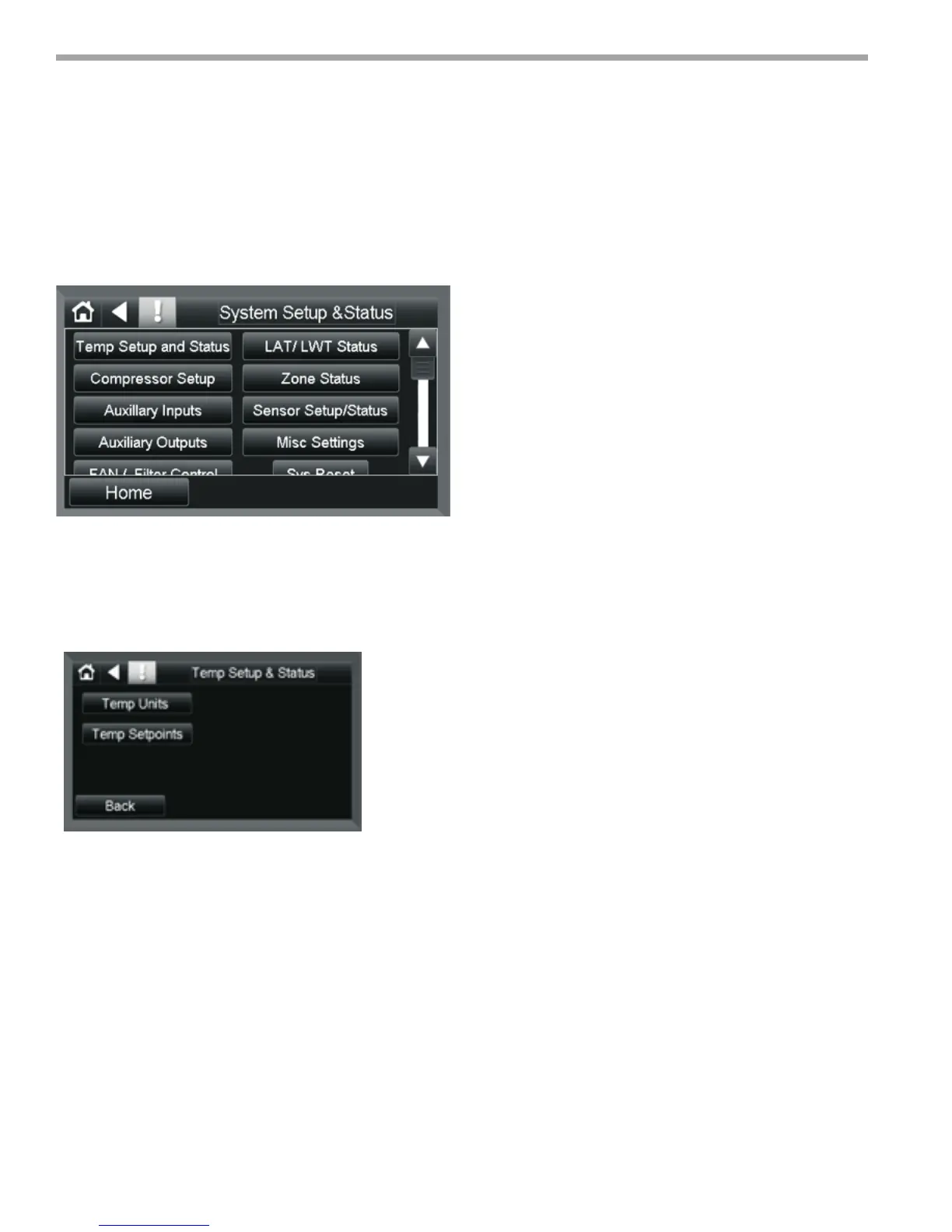

MPC Setup/Status Screen
From this screen, you can access all control and status
checking functions within the MPC GEN 7 Controller.
1. Temp Setup and Status- Provides user access to
Temp Units and Temp Setpoints screens for setting
temperature units and temperature setpoints respec-
tively. There are no control or status points on this
screen.
2. Compressor Setup - Provides user access to all con-
trol points and status points related to compressor
operation. All control points are on the main screen
while status points are contained in a sub menu
called Status.
3. Auxiliary Inputs – Provides user access to the con-
trol/ status points associated with the auxiliary Inputs
and the status of the auxiliary Inputs.
4. Auxiliary Outputs - Provides user access to the
control/ status points associated with the auxiliary
outputs and the status of the auxiliary outputs.
(Control/ Status).
5. Fan/ Filter Control - Provides access to all control/
status points associated with controlling the FAN or
the Dirty Filter alarming function. (Control/ Status).
6. CO2/ VOC/Humidity - Provides access the control
and status points related to the CO2/VOC and
Humidity sensing functions.
7. Occupancy - Provides access to the control points
related to setting and the overriding of Occupancy.
(Control/ Status).
8. Heat/Cool Contro l - Provides access to the control
points and status screen related to controlling
Heating and Cooling function. (Control/ Status).
9. MPC Alarms - Provides access to the MPC Alarm
Status Screen (Status Only).
10. MPC Faults - Provides Access to the MPC Fault
Status Screen (Status Only).
11. LAT/ LWT Status - Provides Access to I/O related to
LWT/ LAT points (Status Only).
12. Zone Status - Provides access to Zone Temperature
Status and PID Outputs.
13. Sensor Setup/ Status - Provides access to RNet
Sensor Setup sub-screen and the RNet Sensor
Active Screen.
14. MISC Settings - Provides access to miscellaneous
control settings such as Test Mode, RNet Mode and
Dead Band Mode etc.
15. Maintenance Screen - Provides access to the Screen
used to monitor normal operation of the MPC unit.
Equipment Touch Screen Descriptions
Figure 27:
Figure 28:
