Chapter 3: To use easyMail
62 Set up PC communication with the SAILOR 3027

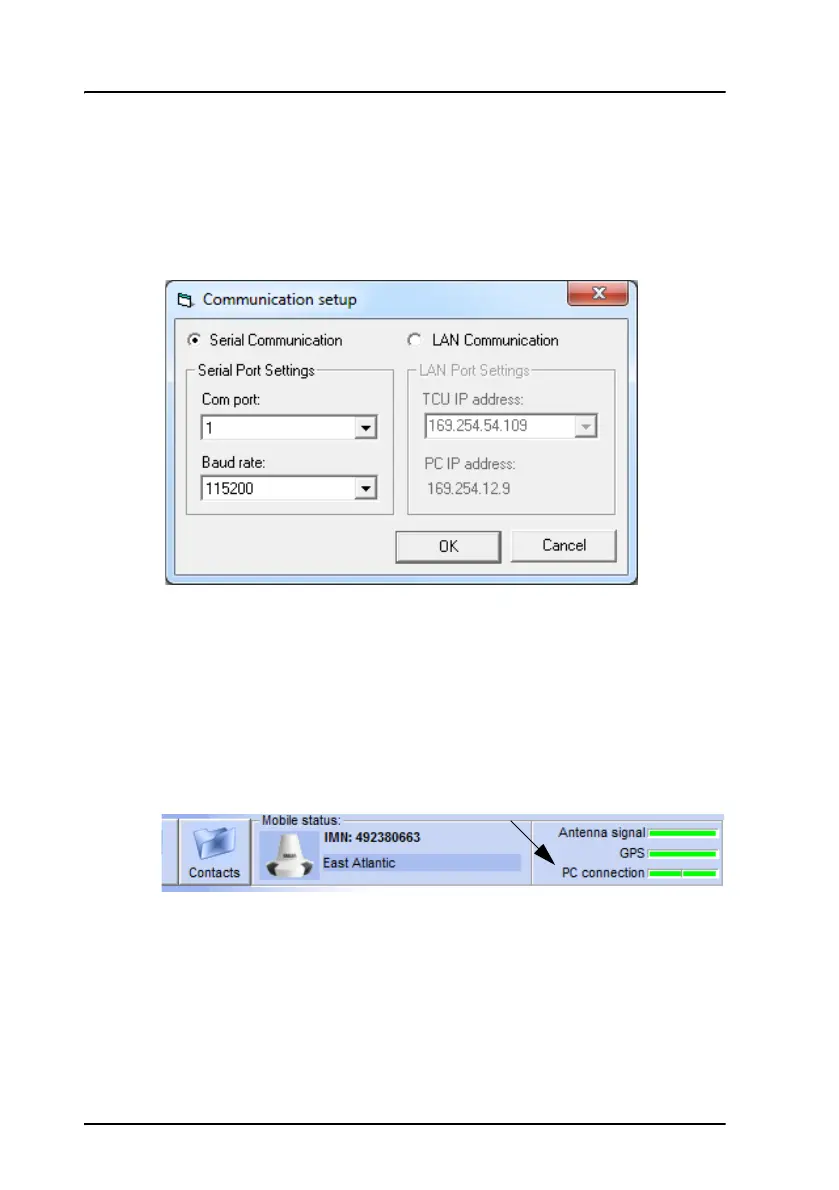

To set up RS-232 communication
To set up easyMail for RS-232 communication with the SAILOR 6194 and
thereby the SAILOR 3027, do as follows:
1. Select Setup > Communication setup.
2. Select Serial communication.
3. Select the COM port you are using on your computer and the Baud
rate of the SAILOR 6194 (default is 115200).
4. Click OK.
easyMail now tries to establish a connection to the SAILOR 6194 and
thereby the SAILOR 3027. When the RS-232 connection is established
the PC connection bar at the top of the easyMail window turns green.
