Chapter 1: Introduction
2System overview
System overview

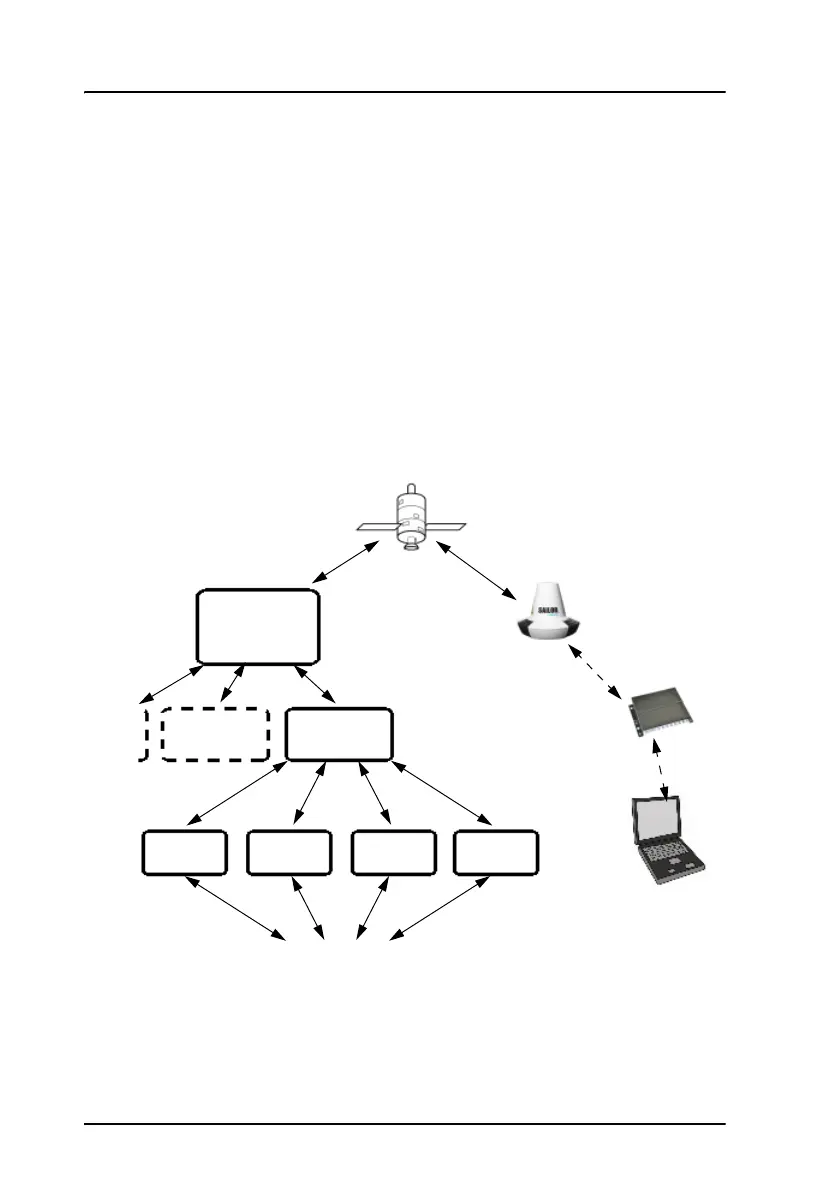

The SAILOR 6120/30/40/50 mini-C system
The Inmarsat C satellite network is the link between the mini-C system and
the destination office. It uses four geostationary satellites to cover the
world. For each satellite there is an NCS, Network Coordination Station,
handling registration of the mobile unit (in this case the SAILOR 3027) in
the Inmarsat C system.
Each NCS is associated with a number of LESes, Land Earth Stations, which
handle the transmission between the mobile units and the destination
office.
The SAILOR 3027 can work as a standalone system automatically
transmitting data on the Inmarsat C network, or you can connect alarm
buttons and/or a computer through the SAILOR 6194 Terminal Control
Unit.
NCS
Network Coordination
Station
LES
LES
Land Earth Station Land Earth Station
Internet
Telex
Network
PSDN
Network
PSTN
Network
Destination office
Satellite
SAILOR 3027
Computer
SAILOR 6194
