InteliLite4 AMF20 Global Guide
155
Example:

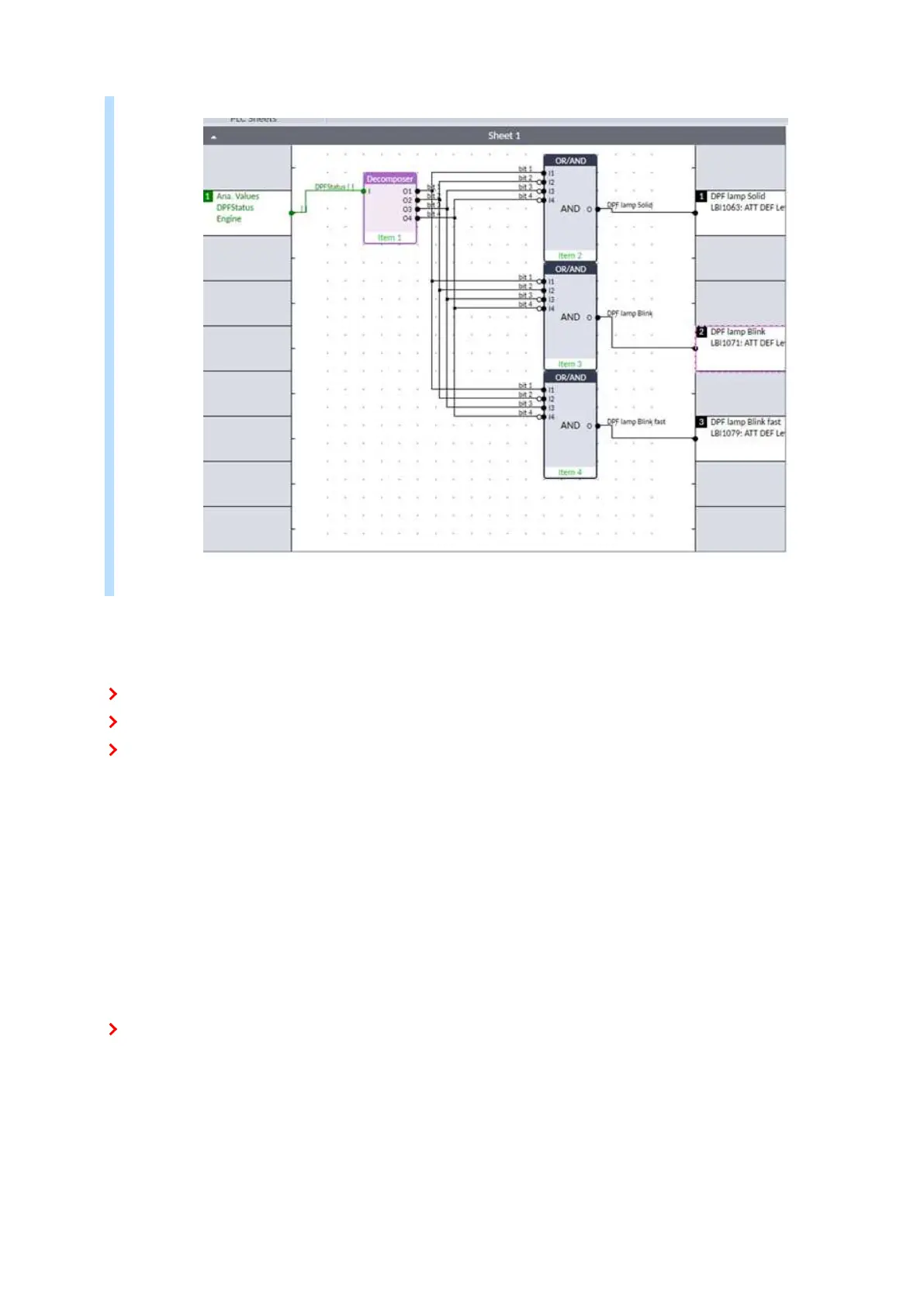

Image 5.46 The lamp state will be solid when signal is value 1, 2 = blink, 5 = blink fast
Control of After-Treatment regeneration function
Control of the non-mission regeneration is dependent on several conditions:
Controller is in MAN mode
GCB muset be open only when GCB Control Mode (page 217) = Internal
State Running
When these conditions are met, user can either switch LBI ATT INTERLOCK (PAGE 443) which acts as
acknowledgment for the ECU that everything is prepared for the DPF regeneration, after that user can start
regeneration by closing LBI ATT FORCE REGEN (PAGE 441). Some ECUs however do not include LBI ATT
INTERLOCK (PAGE 443) and closing just LBI ATT FORCE REGEN (PAGE 441) is enough to start the regeneration
process.
Some engines may require the regeneration to run on higher RPM than is normally expected. For this reason
we recommend to adjust Overspeed Limit setpoint.
The exact process and conditions for each particular engine should be studied carefully from the engine
documentation issued by the manufacturer.
User can also inhibit regeneration process by:
ATT INHIBIT REGEN (PAGE 442)
By doing so, the process of regeneration will be postponed until user switches the LBI back to open position.
The Regeneration Inhibit lamp should be usually on solid when the LBI is closed. If the LBI is closed during
regeneration, the process stops and it will have to start over if the ECU allows it.
