InteliLite4 AMF20 Global Guide
235
Subgroup: Starting Timers
Fuel Solenoid Lead
Setpoint group Engine settings Related FW 1.3.0
Range [units] 0,0 .. 25,0 [s]
Default value 0,5 s Alternative config NO
Step 0,1 s
Comm object 10525 Related applications AMF,MRS
Config level Advanced
Setpoint visibility Always
Description
Delay between FUEL SOLENOID (PAGE 477) and STARTER (PAGE 501) logical binary outputs.FUEL
SOLENOID (PAGE 477) is active before STARTER (PAGE 501). Lead time is adjusted via this setpoint.

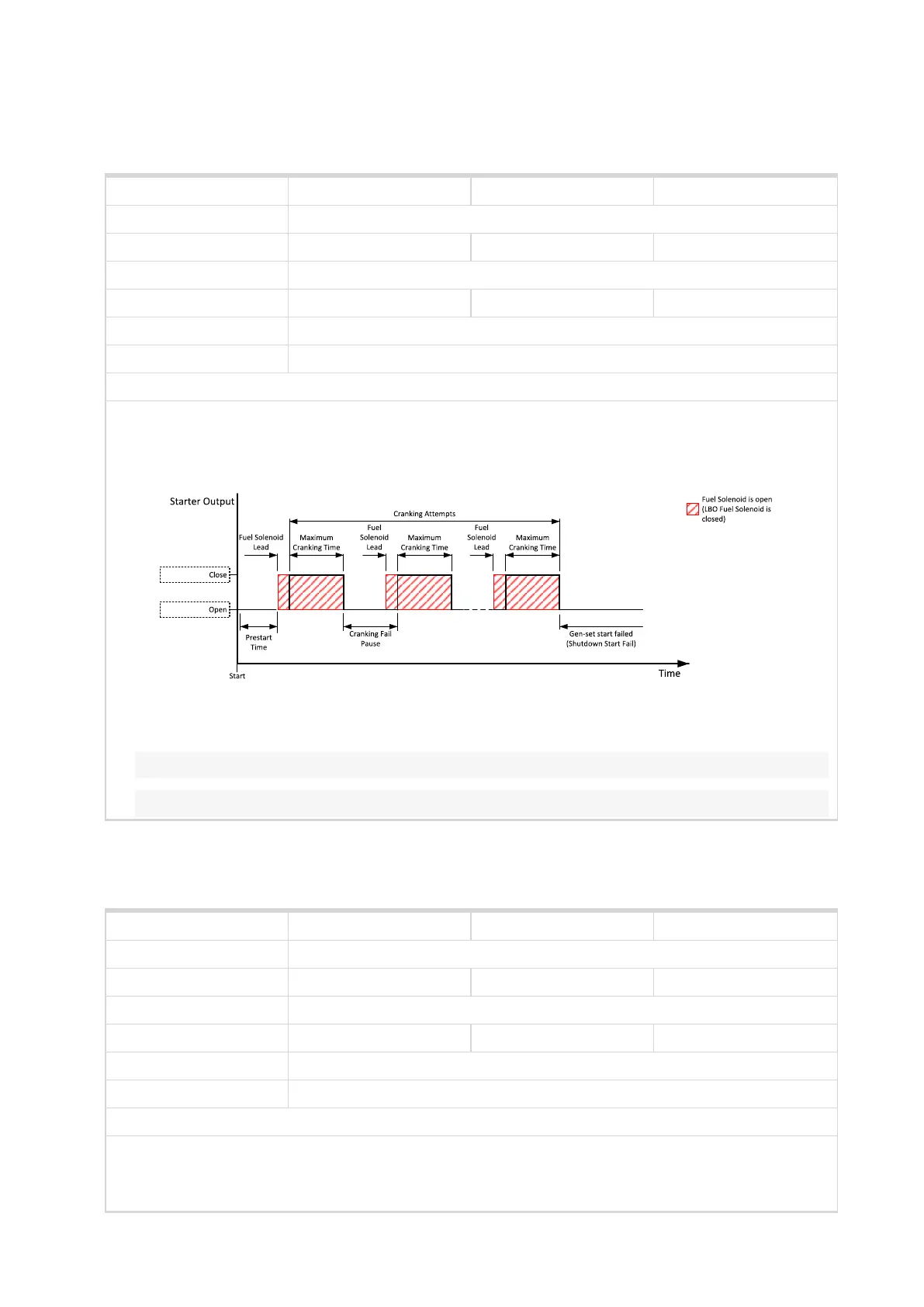

Image 8.2 Fuel Solenoid Lead
Note: LBO PRESTART (PAGE 496) goes to logical zero when Fuel Solenoid Lead goes to logical one.
Note: This setpoint is used only for diesel Fuel Solenoid (page 225)
6 back to List of setpoints
Idle Time
Setpoint group Engine settings Related FW 1.3.0
Range [units] 0 .. 600 [s]
Default value 12 s Alternative config NO
Step 1 s
Comm object 9097 Related applications AMF,MRS
Config level Standard
Setpoint visibility Always
Description
Idle Time delay starts when RPM exceeds Starting RPM (page 227). Start fail is detected when during
Idle state RPM decreases below 2 RPM.
The output IDLE/NOMINAL (PAGE 487) remains inactive during the idle period. Binary output Idle/Nominal
