InteliLite4 AMF20 Global Guide
263

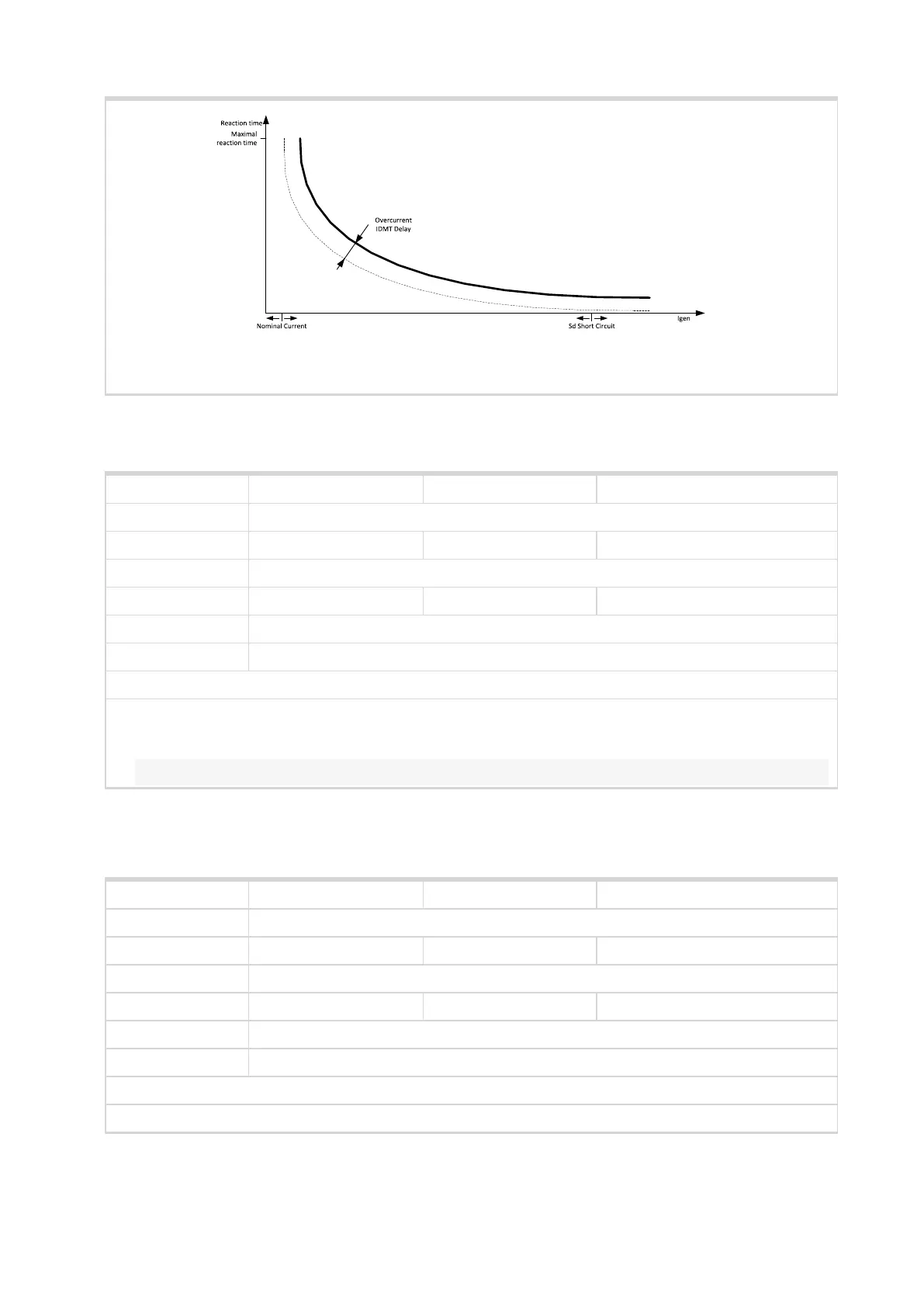

Image 8.15 IDMT Overcurrent Delay
6 back to List of setpoints
Current Unbalance BOC
Setpoint group Generator settings Related FW 1.3.0
Range [units] 1 .. 200 [%] of Nominal Current (page 207)
Default value 50 % Alternative config NO
Step 1 % of Nominal Current (page 207)
Comm object 8284 Related applications AMF,MRS
Config level Advanced
Setpoint visibility Conditioned by the setpoint Connection type (page 209)
Description
Threshold for generator current asymmetry (unbalance).
Protection is BOC (Breaker Open and Gen-set Cooldown).
Note: When there is no control of breakers, the type of protection is Sd not BOC.
6 back to List of setpoints
Current Unbalance BOC Delay
Setpoint group Generator settings Related FW 1.3.0
Range [units] 0.0 .. 600.0 [s]
Default value 5.0 s Alternative config NO
Step 0.1 s
Comm object 8285 Related applications AMF,MRS
Config level Advanced
Setpoint visibility Conditioned by the setpoint Connection type (page 209)
Description
Delay for Current Unbalance BOC (page 263) protection.
6 back to List of setpoints
