ComAp InteliLite AMF25 User Manual

InteliLite Global Guide
126

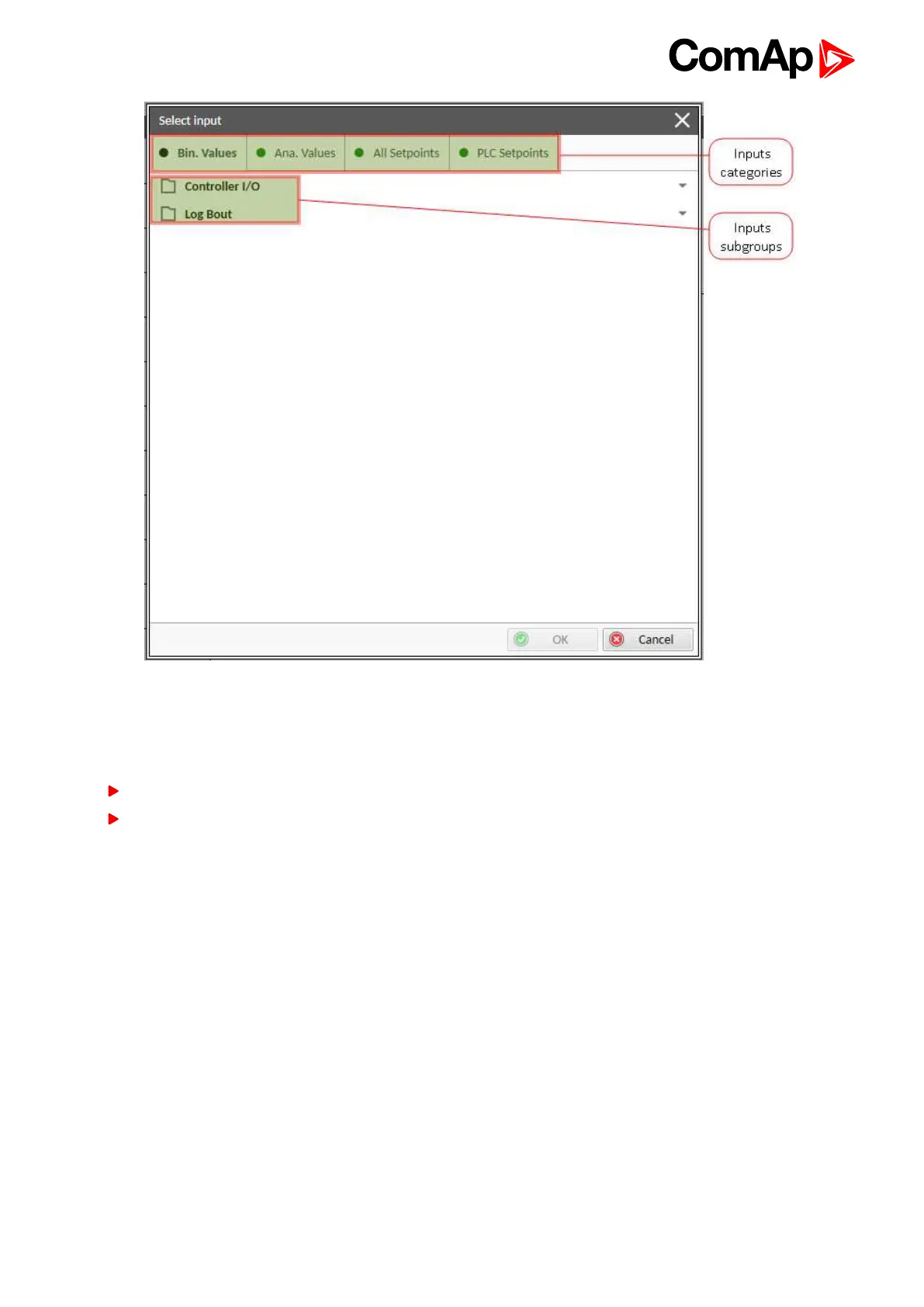

Image 5.36 PLC inputs
Outputs
Sheet outputs are located at the right side of a sheet. Follow the procedure below to add or edit an input.
Doubleclick on a free output position to add new sheet output.
Doubleclick on an already created output to configure the output onto a controller output terminal or a logical
binary input (first of all some PLC block output has to be connected to this output to enable configuration of
output).

ComAp InteliLite AMF25 Specifications

General

Inputs	8 binary inputs
Outputs	8 binary outputs
Power Supply	8-36 V DC
Communication	RS232, RS485
Operating Temperature	-20°C to +70°C
Supported Generators	Diesel, gas
Controller Type	Automatic Mains Failure Controller
Protection	IP65
