Compaq dc5800 - Microtower PC Reference Guide

Fan/Air Baffle
1. Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2. Remove the computer access panel (
Computer Access Panel on page 66).
3. Unplug the fan cable from the system board (CHFAN, P9).
4. Remove the processor baffle.
5. Remove the silver T15 screw that secures the baffle to the base of the chassis.
6. Unplug the speaker cable.

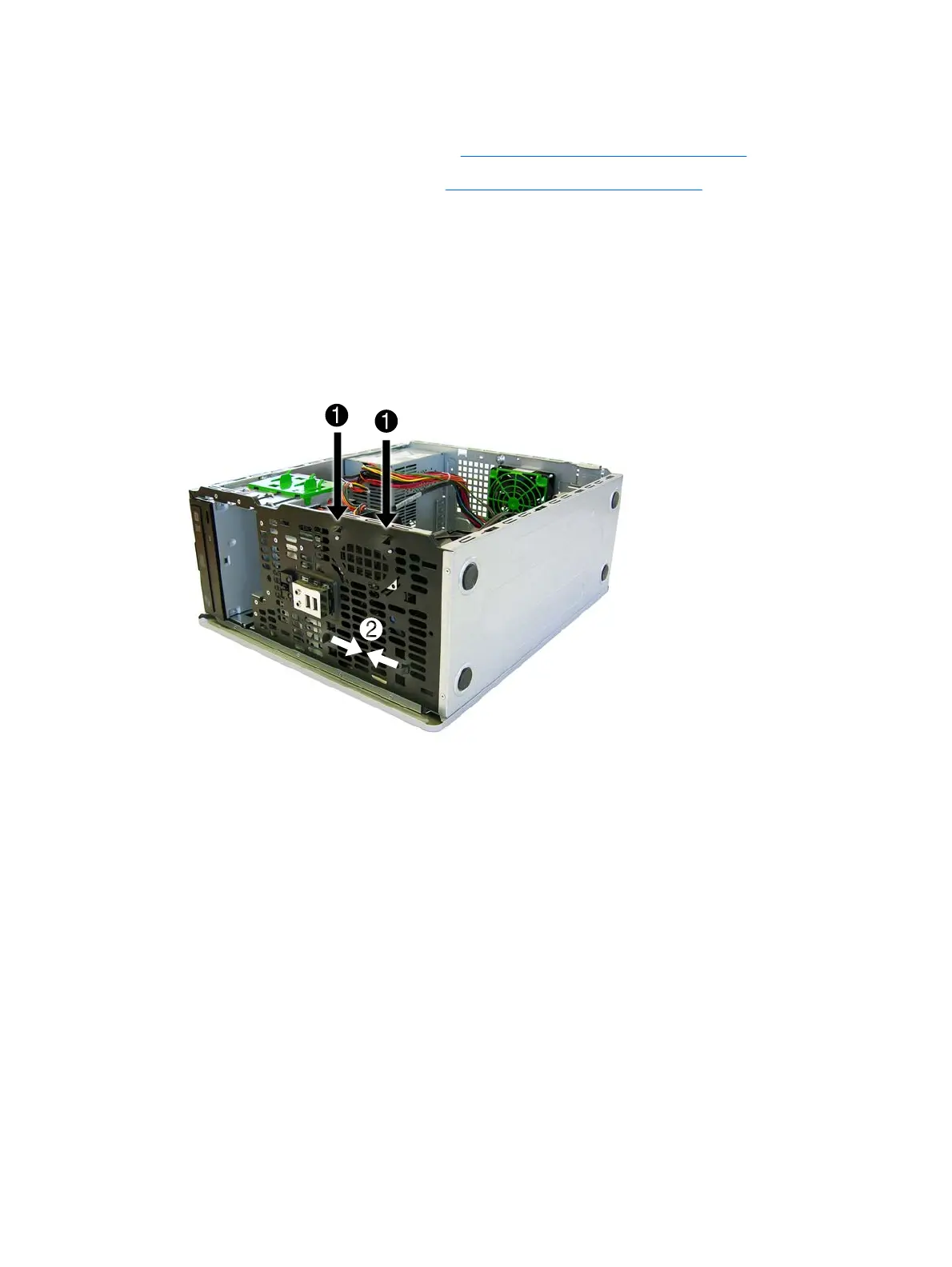

7. Push down on the two top tabs that secure the baffle to the front of the chassis (1), and then push
the two bottom tabs toward each other (2).
8. Slide the baffle about 1 inch (2.5 cm) toward the rear of the unit, and then lift the baffle up and out
of the chassis while threading the speaker cable through the hole on the side of the baffle.
To reinstall the fan/air baffle, reverse the removal procedure.
When reinstalling the baffle, be sure to thread the speaker cable back through the hole in the side of
the baffle, and then plug the cable back into the system board.
96 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
