Compaq dc5800 - Microtower PC Reference Guide

Front I/O Device
You do not have to remove the fan/outer baffle to remove the front I/O device.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 110).
2. Remove the access panel (
Computer Access Panel on page 116).
3. Remove the front bezel (
Front Bezel on page 117).
4. Disconnect the front I/O cable (FRONT_AUD, P23) from the blue connector on the system board
and the USB cable (FRONT_USB, P24) from the yellow connector on the system board.
5. Rotate the drive cage to its upright position.

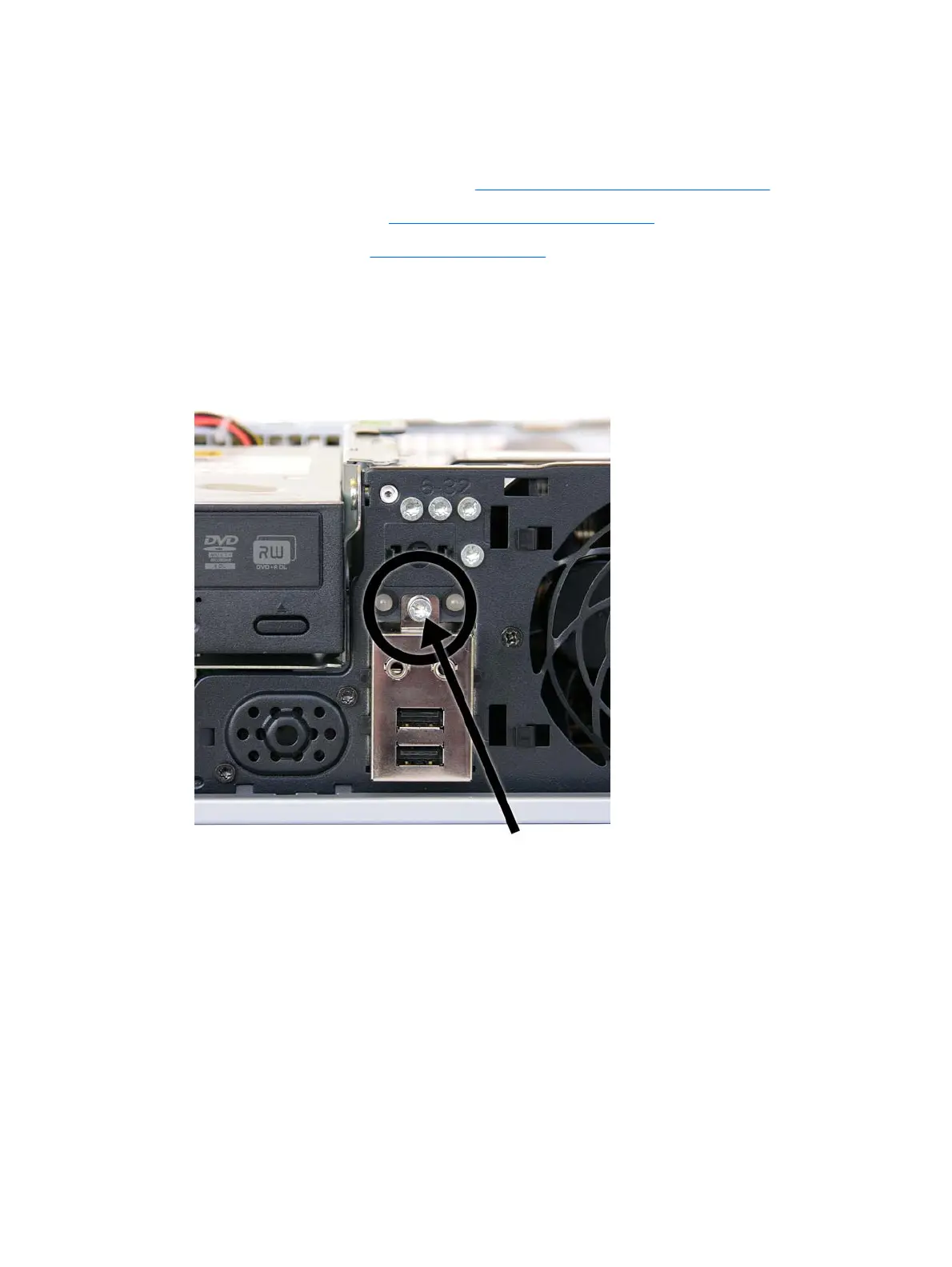

6. Remove the silver T15 screw that secures the front I/O device to the chassis.
7. Pull the device from the chassis and guide the cables through the hole to remove them from the
chassis.
To reinstall the front I/O device, reverse the removal procedure.
When reinstalling the front I/O device, be sure to guide the cables through the opening in the drive cage
directly behind the front I/O device slot in the front of the chassis.
Front I/O Device 157

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
