Computer Access Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 110).

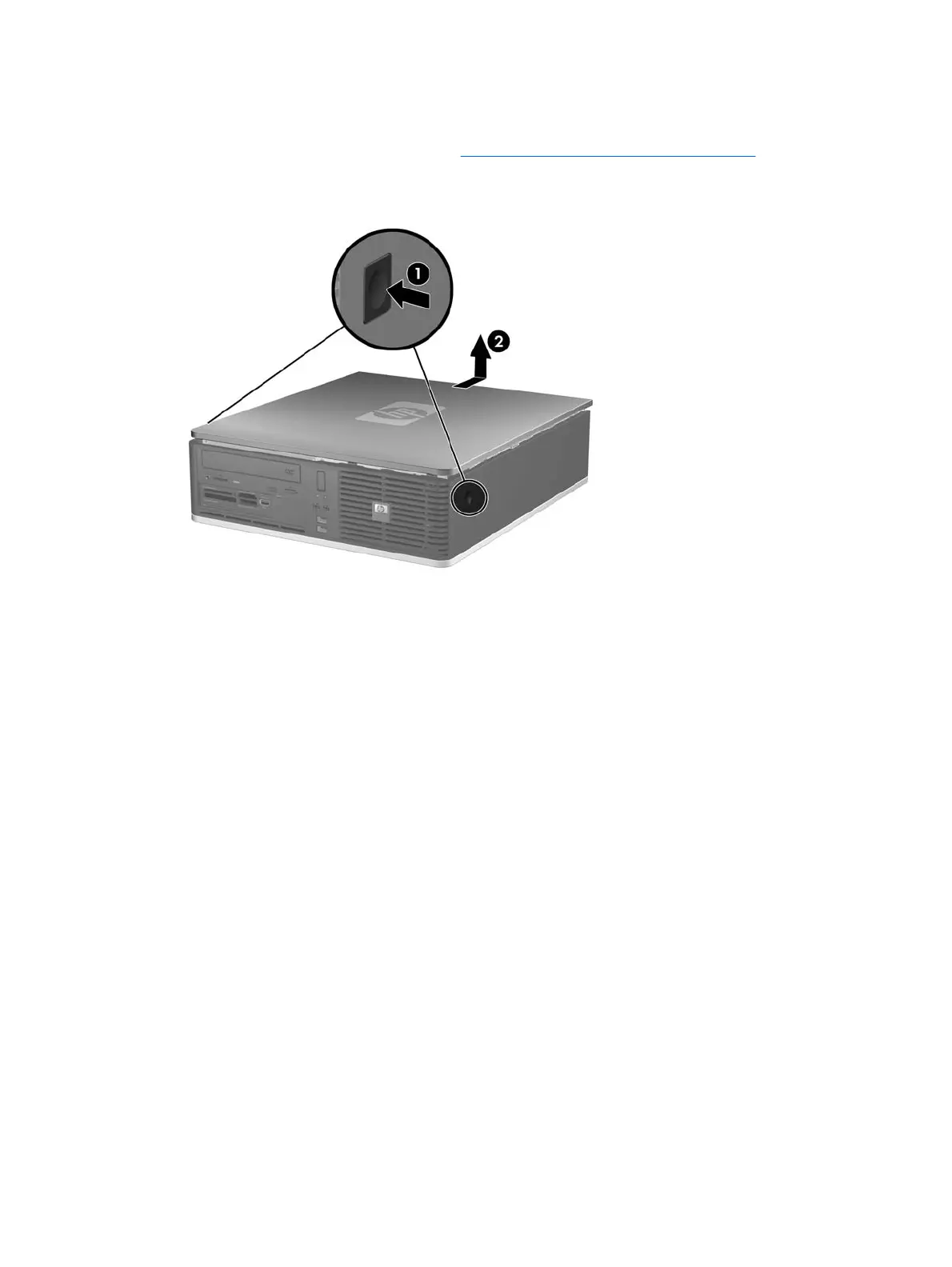

2. Press the buttons on the left and right sides of the computer (1) then slide the access panel back
until it stops and lift it up and off the chassis (2).
To install the access panel, reverse the removal procedure.
116 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
