Compaq dc5800 - Microtower PC Reference Guide

Cable Routing
When servicing the computer, please note the original locations of the cables and how they are routed
in the chassis. There are two white plastic cable clamps in the chassis located under the drive cage —
one attached directly to the drive cage, the other attached to the chassis base. Make sure to replace all

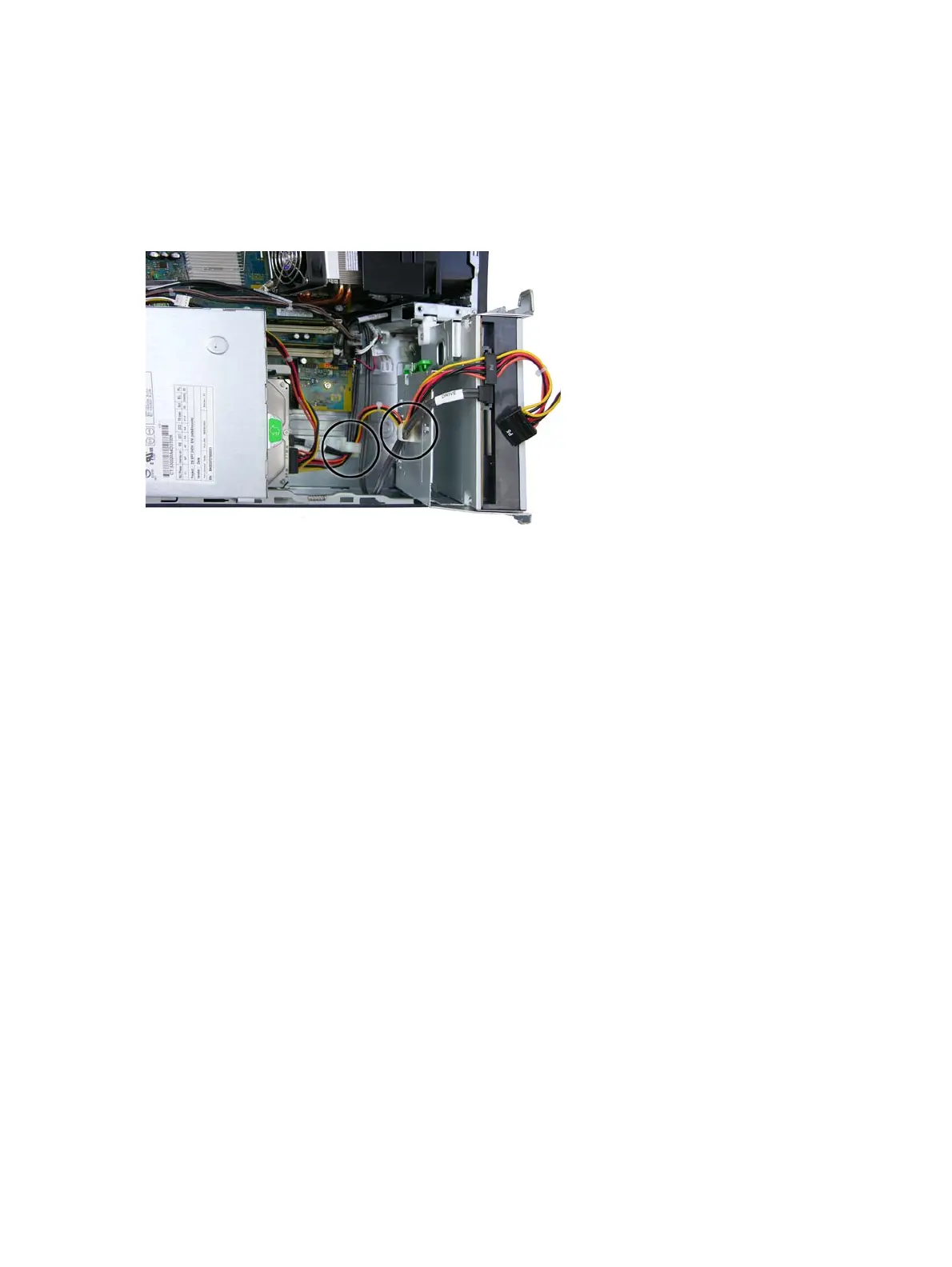

cables to their proper locations when reassembling the computer. The image below illustrates proper
cable routing.
152 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
