5. Go to step 7.
6. If using a new heatsink, remove the protective covering from the bottom of the heatsink and place
it in position atop the processor.
7. Secure the heatsink to the system board and system board tray with the four captive screws and
attach the heatsink control cable to the system board.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an
X) to evenly seat the heatsink on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at:
http://h18000.www1.hp.com/support/files.

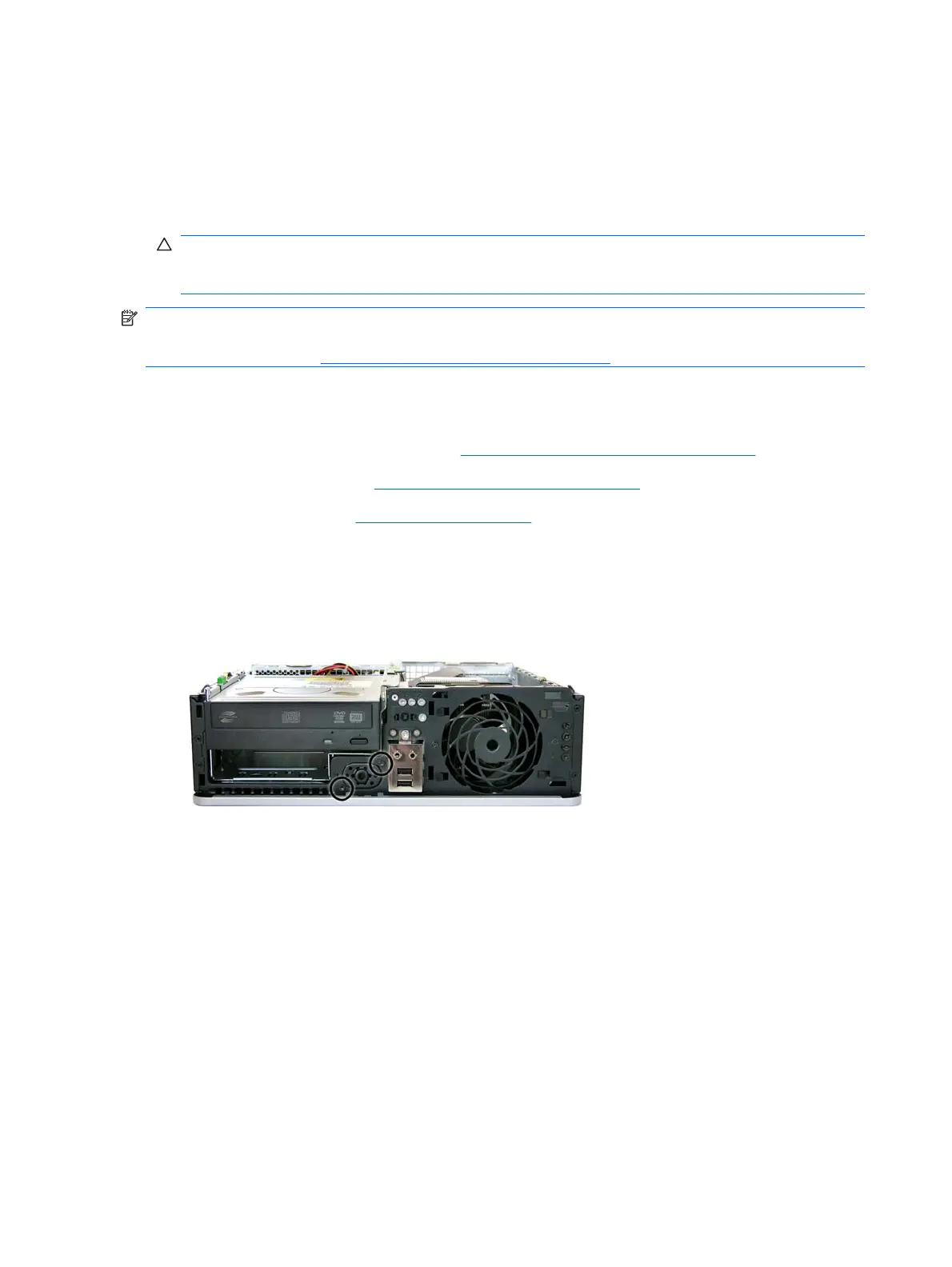

Speaker
1. Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2. Remove the access panel (
Computer Access Panel on page 116).
3. Remove the front bezel (
Front Bezel on page 117).
4. Rotate the drive cage to its upright position.
5. Disconnect the speaker wire from the system board (SPKR, P6).
6. Remove the two black T15 screws that secure the speaker to the chassis.
7. Lift the speaker up and out of the chassis while guiding the wire through the hole in the drive cage.
To install the speaker, reverse the removal procedures.
When reinstalling the speaker, be sure to run the speaker wire through the hole in the drive cage directly
behind the speaker.
160 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
