Compaq dc5800 - Microtower PC Reference Guide

Front USB Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2. Remove the computer access panel (
Computer Access Panel on page 66).
3. Remove the front bezel (
Front Bezel on page 67).
4. Disconnect the front I/O cable from the blue system board connector (P6) and the USB cable from
the yellow system board connector (FRONT_USB, P24).
5. Stand the unit upright.

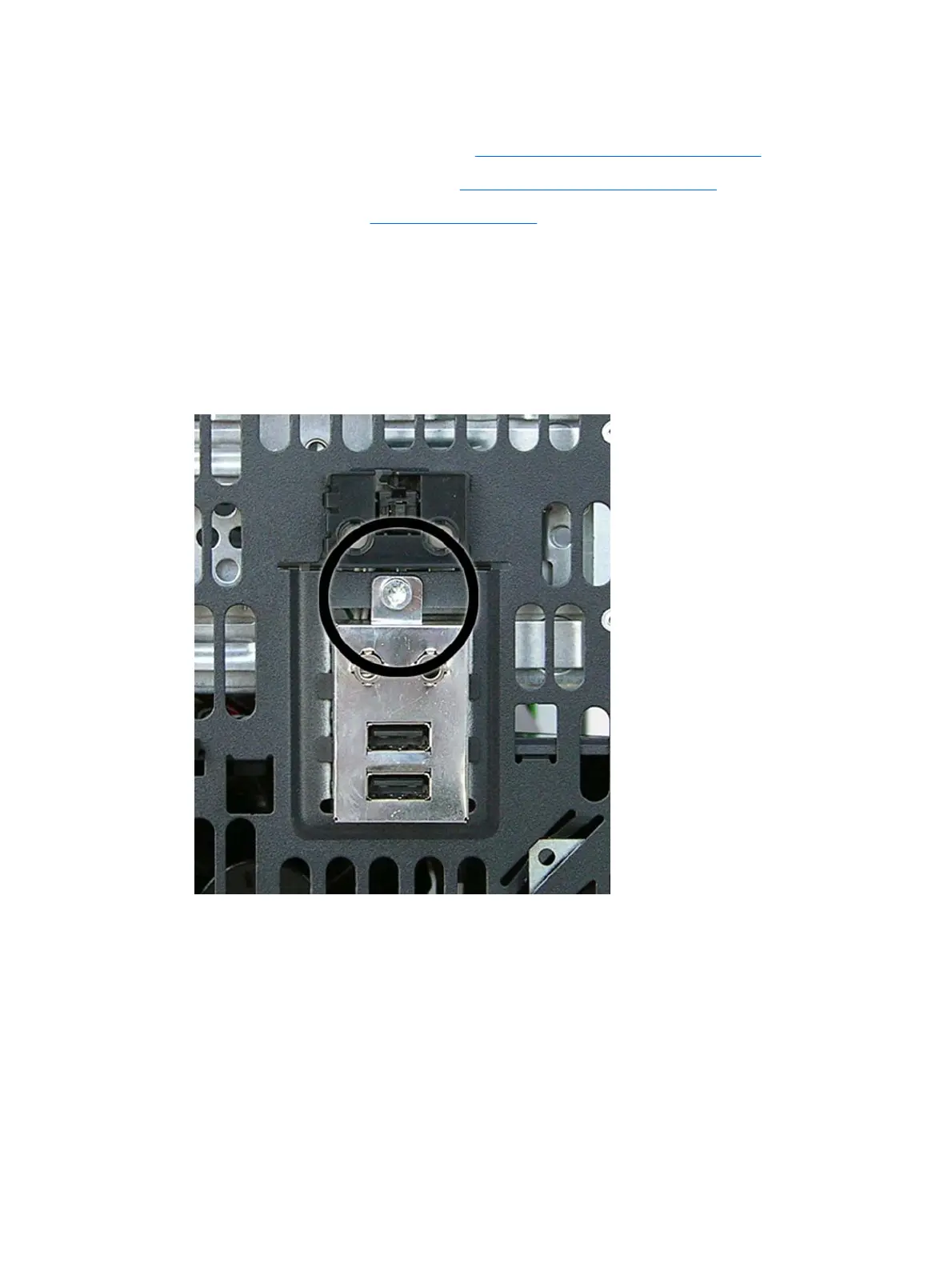

6. Remove the silver T15 screw that secures the panel to the chassis.
7. Pull the panel away from the unit while threading the wires between the drive cage and the baffle
and through the hole in the front of the chassis.
To reinstall the panel, reverse the removal procedure.
Front USB Panel 97

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
