Compaq dc5800 - Microtower PC Reference Guide

Power Switch Assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2. Remove the access panel (
Computer Access Panel on page 116).
3. Remove the front bezel (
Front Bezel on page 117).
4. Remove the fan/outer baffle (
Fan/Outer Baffle on page 155).
5. Rotate the drive cage to the upright position.
6. Unplug the power switch cable from the system board (P5, PB/LED).

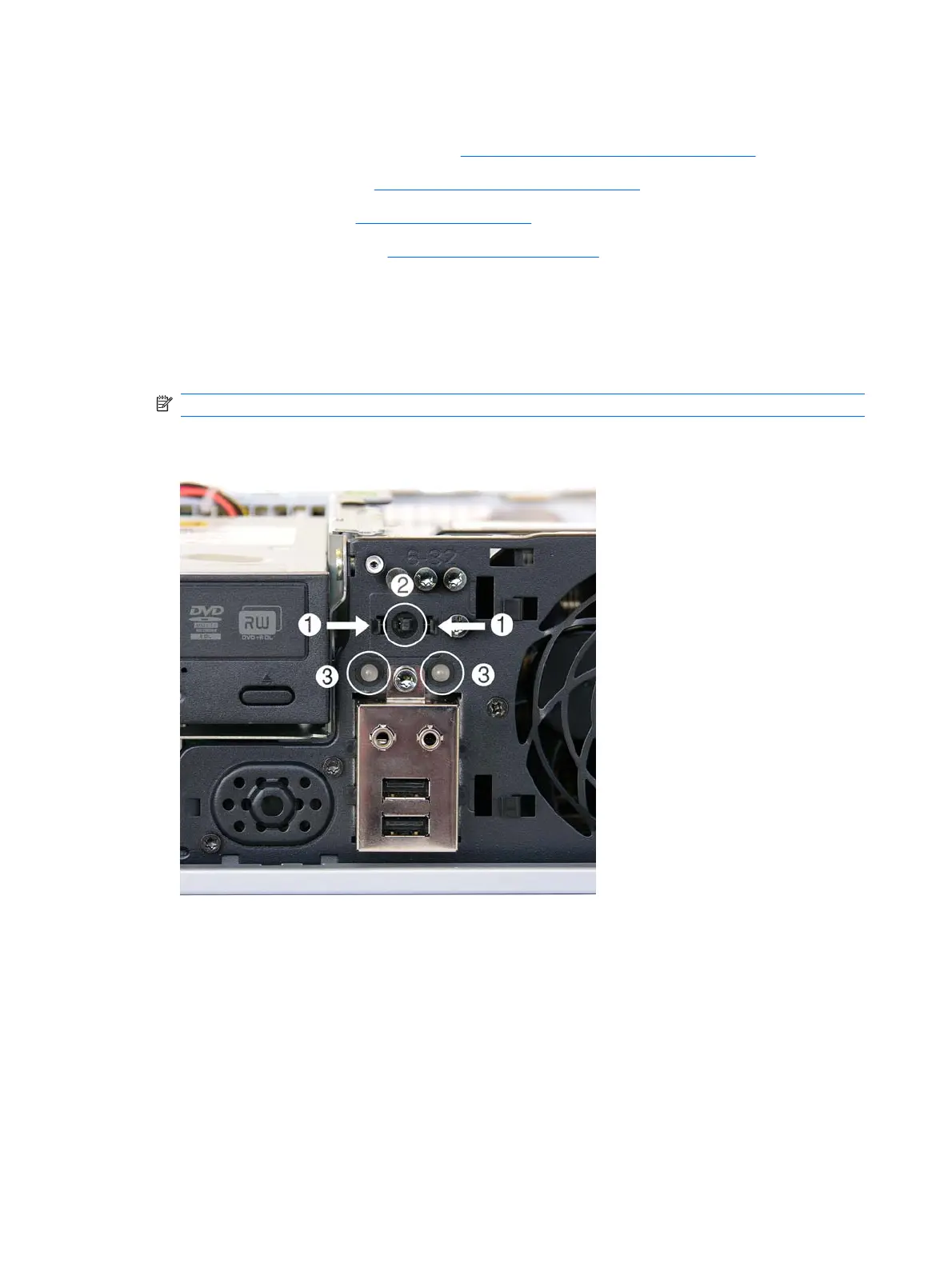

7. Squeeze the switch holder retaining clips together at the front of the chassis (1) and push the switch
assembly into the chassis (2).
NOTE: Note the location of each LED so you can reassemble in the correct order
8. Push the two LEDs into the chassis (3).
9. Remove the assembly from the chassis.
To install the power switch assembly, reverse the removal procedure.
When installing the power switch, replace the LEDs first. You may need to first insert one clip and the
power button, then use a small flat-blade screwdriver to help guide the other clip into its slot.
156 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
