Power Supply
1. Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2. Remove the computer access panel (
Computer Access Panel on page 66).
3. Disconnect all power cables from the drives and from the system board.

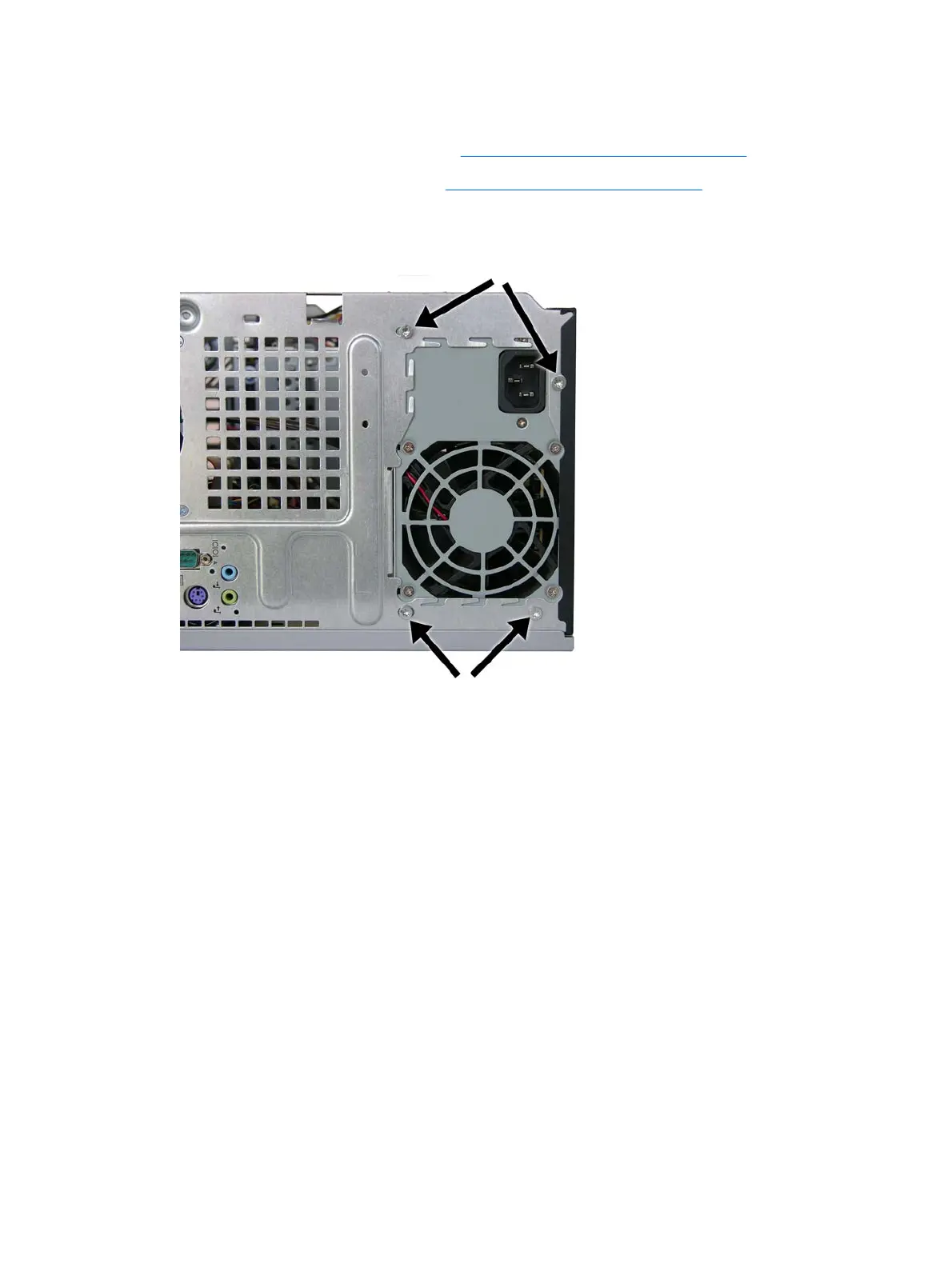

4. Remove the four silver T15 screws that connect the power supply to the chassis.
104 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
