Compaq dc5800 - Microtower PC Reference Guide

Fan/Outer Baffle
1. Prepare the computer for disassembly (Preparation for Disassembly on page 110).
2. Remove the access panel (
Computer Access Panel on page 116).
3. Remove the front bezel (
Front Bezel on page 117).
4. Remove the inner baffle (
Inner Baffle on page 154).
5. Unplug the fan cable from the system board (P9, CHFAN).

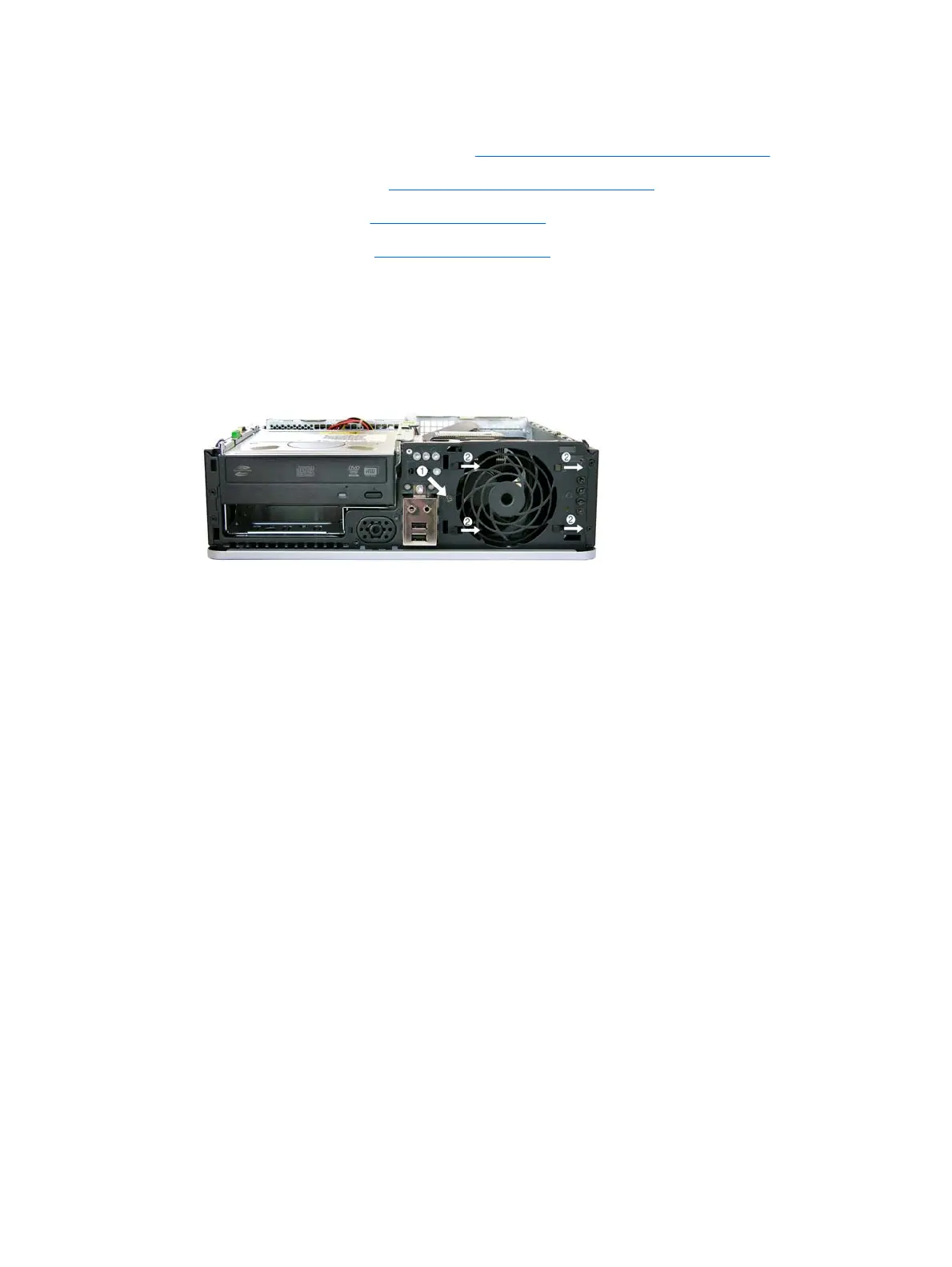

6. Remove the black Phillips screw (1) that secures the baffle to the front of the chassis.
7. When viewed from the front, slide the baffle toward the right to loosen the tabs (2) from the front
of the chassis, and then lift the assembly from the chassis.
To install the fan/outer baffle, reverse the removal procedure.
Be careful of the power switch wires when reinstalling.
Fan/Outer Baffle 155

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
