Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 61).
2. Remove the computer access panel (
Computer Access Panel on page 66).

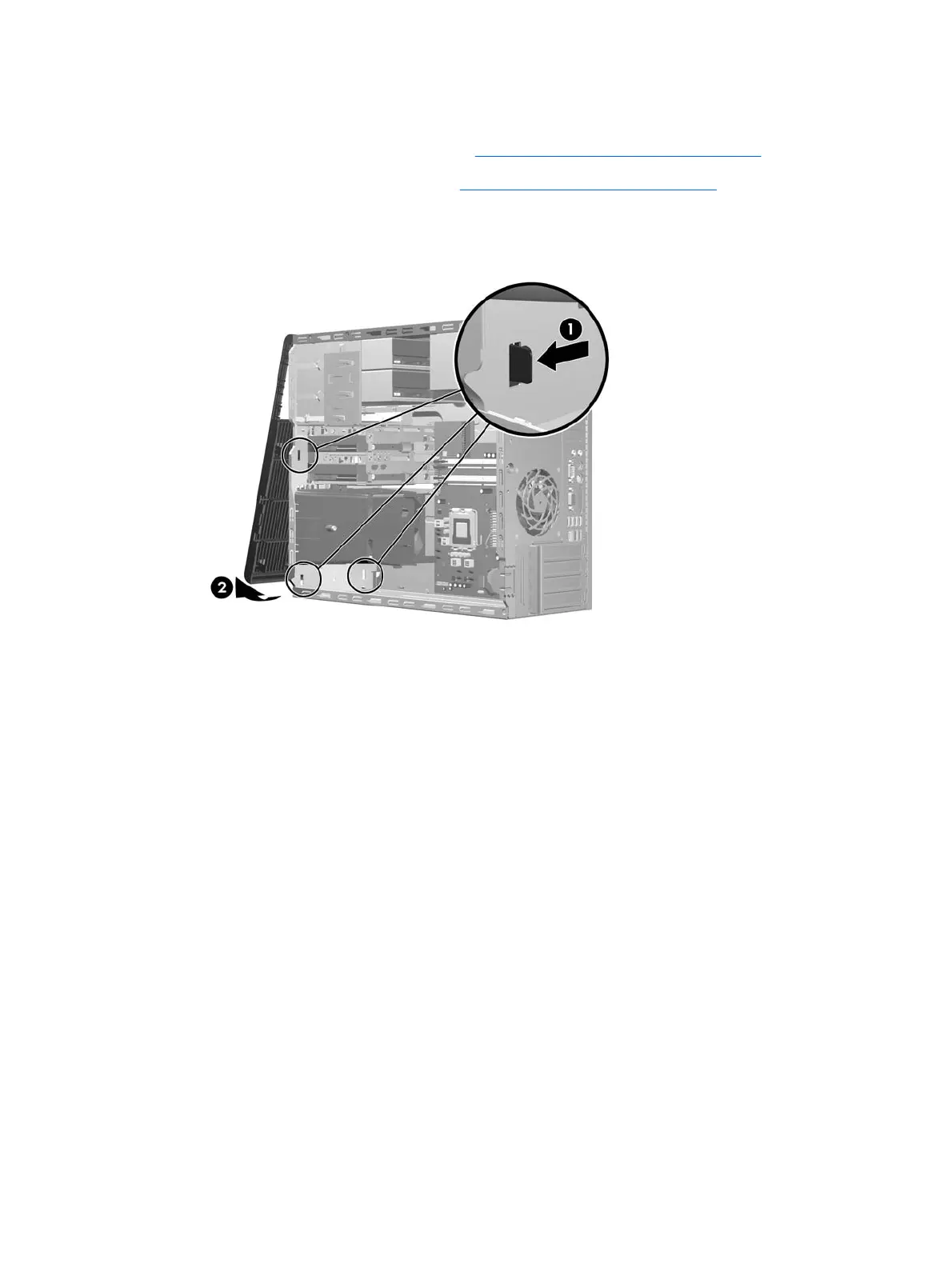

3. Press outward on the two latches on the right side of the bezel and the single latch on the left side
of the bezel (1) to release the bottom of the bezel, then swing the bottom of the bezel away from
the chassis (2) to release the top of the bezel.
To reinstall the front bezel, reverse the removal procedure.
Front Bezel 67
