System Board Drive Connections

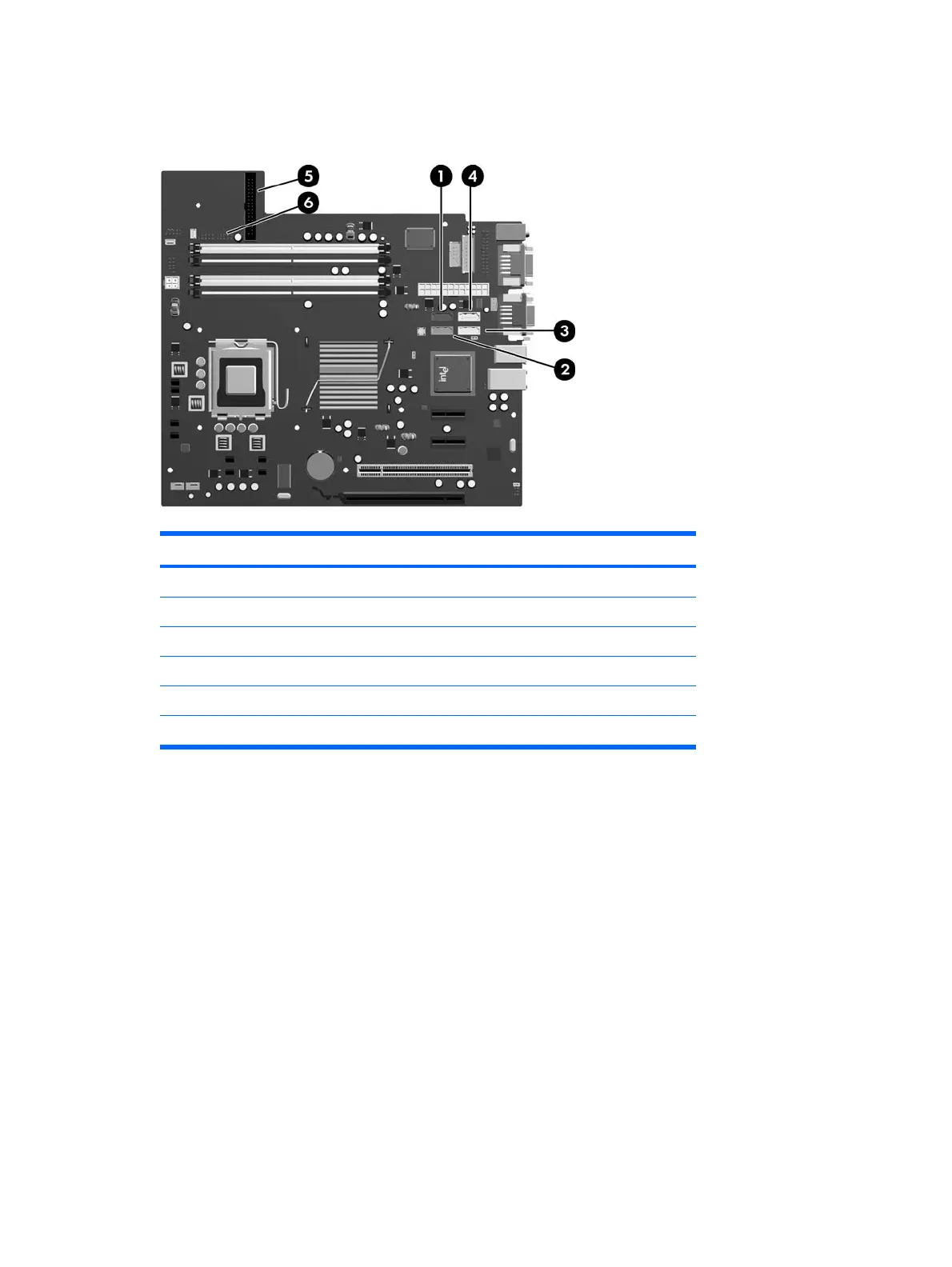

Refer to the following illustration and table to identify the system board drive connectors.
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA4 SATA4 light blue
4 SATA5 SATA5 orange
5 Diskette Drive FLOPPY black
6 Media Card Reader MEDIA black
Drives 135
