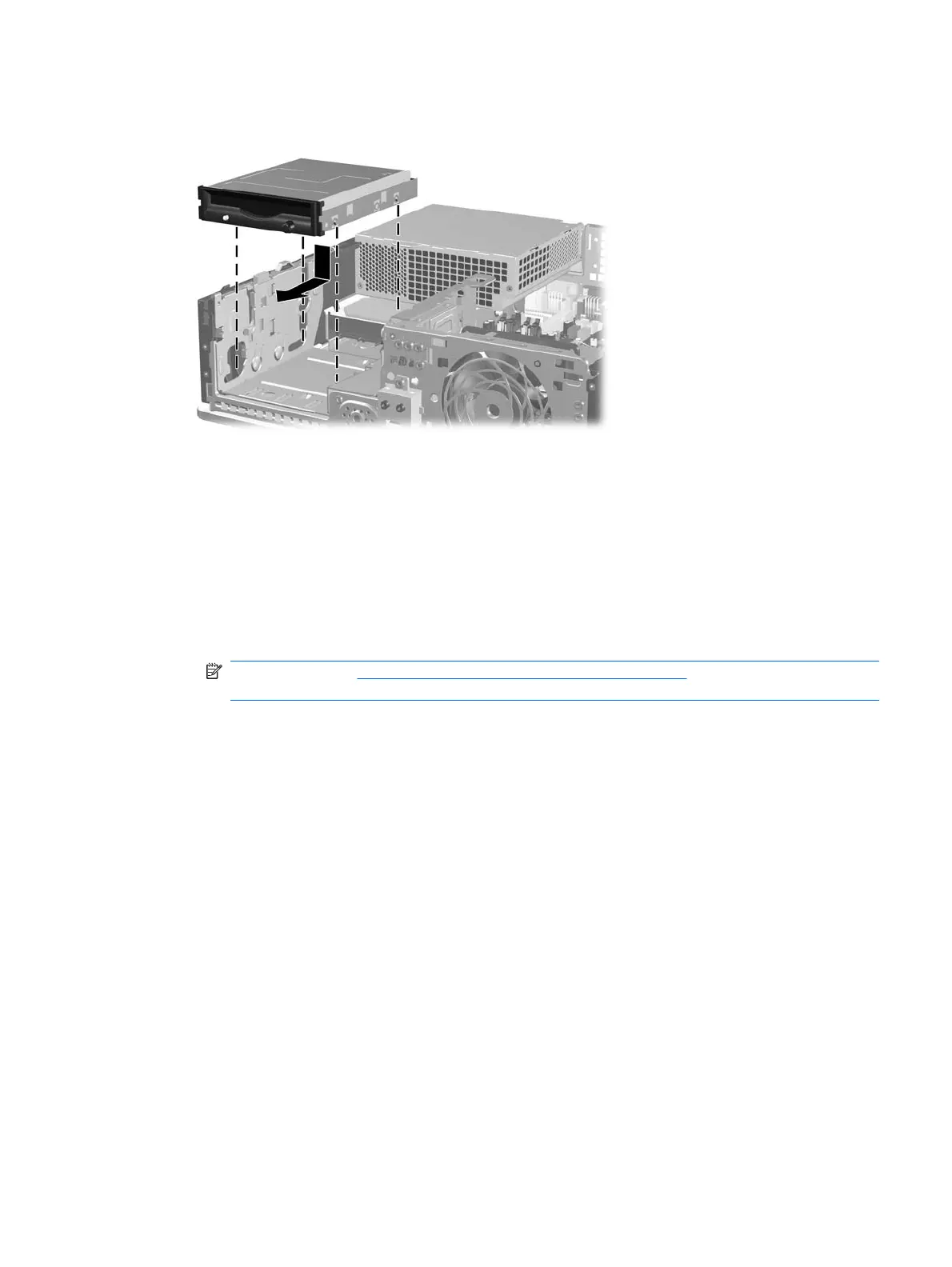

3. Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
4. Connect the appropriate drive cables:
a. If installing a diskette drive, connect the power and data cables to the rear of the drive and
connect the other end of the data cable to the connector on the system board labeled FLOPPY.
b. If installing a second hard drive, connect the power and data cables to the rear of the drive
and connect the other end of the data cable to the next available (unpopulated) SATA
connector on the system board in the following order: SATA0, SATA1, SATA5, SATA4.
c. If installing a media card reader, connect the USB cable from the media card reader to the
USB connector on the system board labeled MEDIA.
NOTE: Refer to System Board Drive Connections on page 135 for an illustration of the
system board drive connectors.
5. Replace the optical drive.
Drives 143
