Compaq dc5800 - Microtower PC Reference Guide

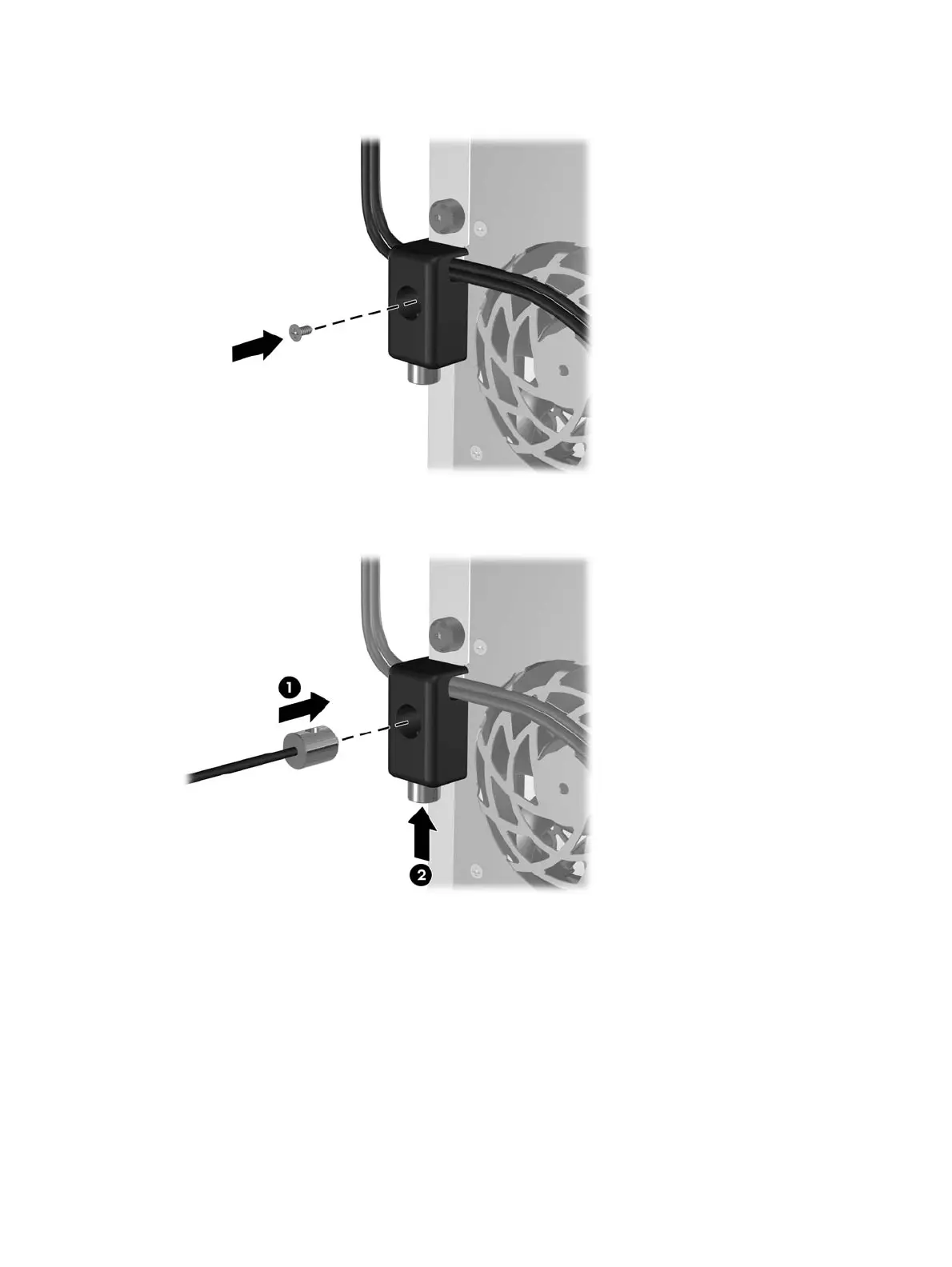

3. Screw the lock to the chassis using the screw provided.
4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
64 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
