Compaq dc5800 - Microtower PC Reference Guide

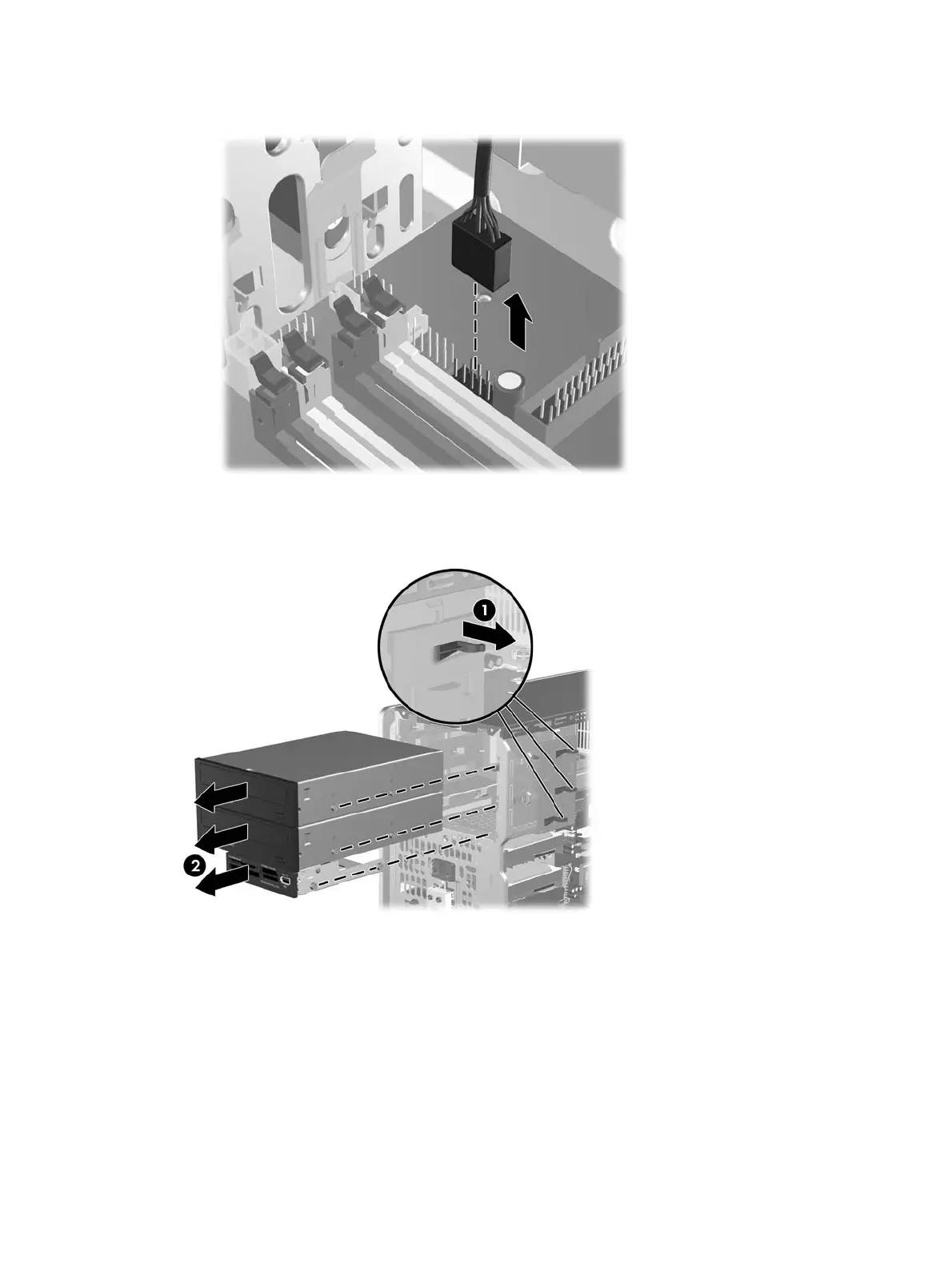

c. If you are removing a media card reader, disconnect the USB cable from the system board.
5. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
6. Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
82 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
