Compaq dc5800 - Microtower PC Reference Guide

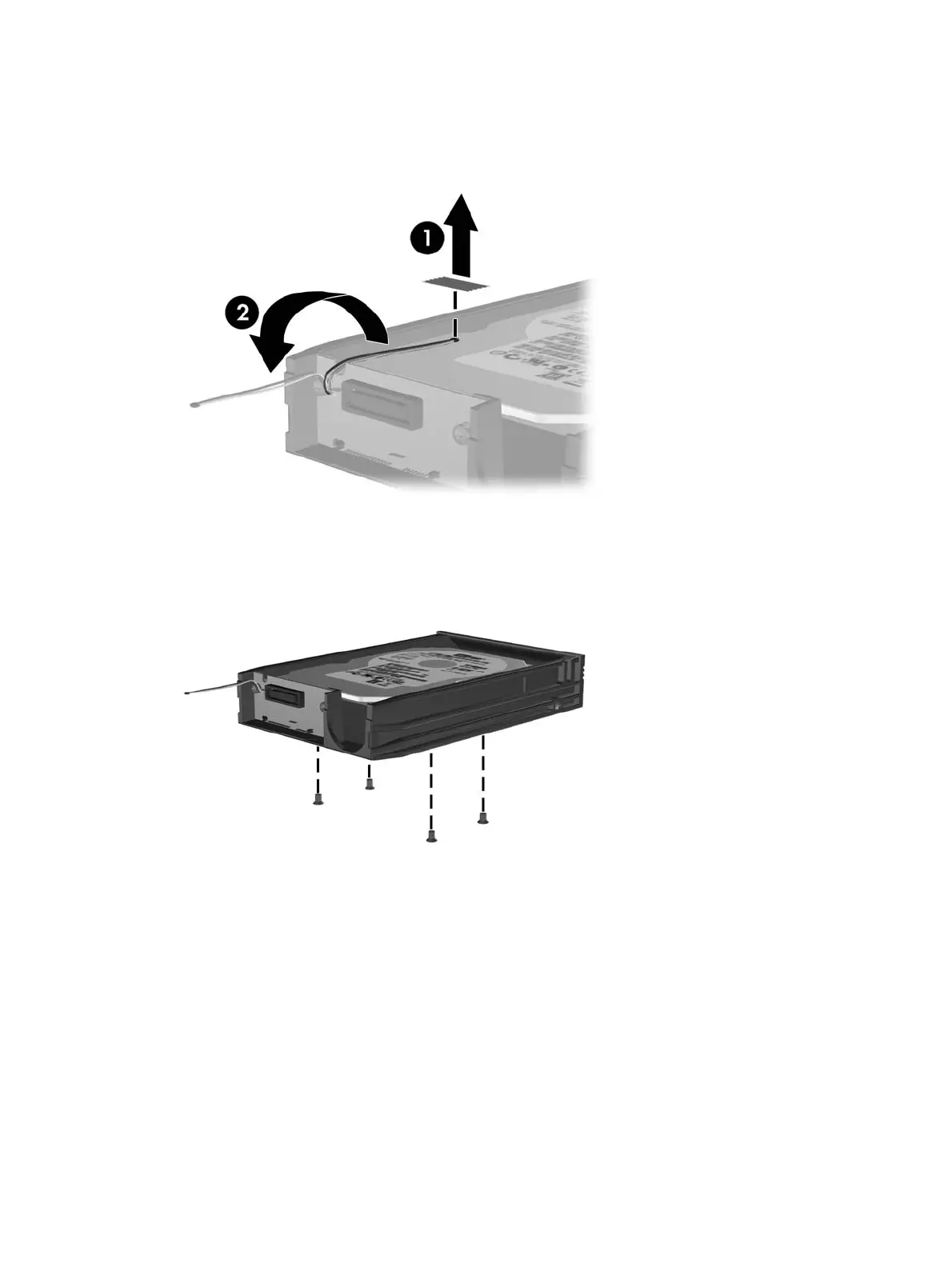

3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
4. Remove the four screws from the bottom of the hard drive carrier.
90 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
