Ethernet Interface Operation 4–35 MN-LPOD

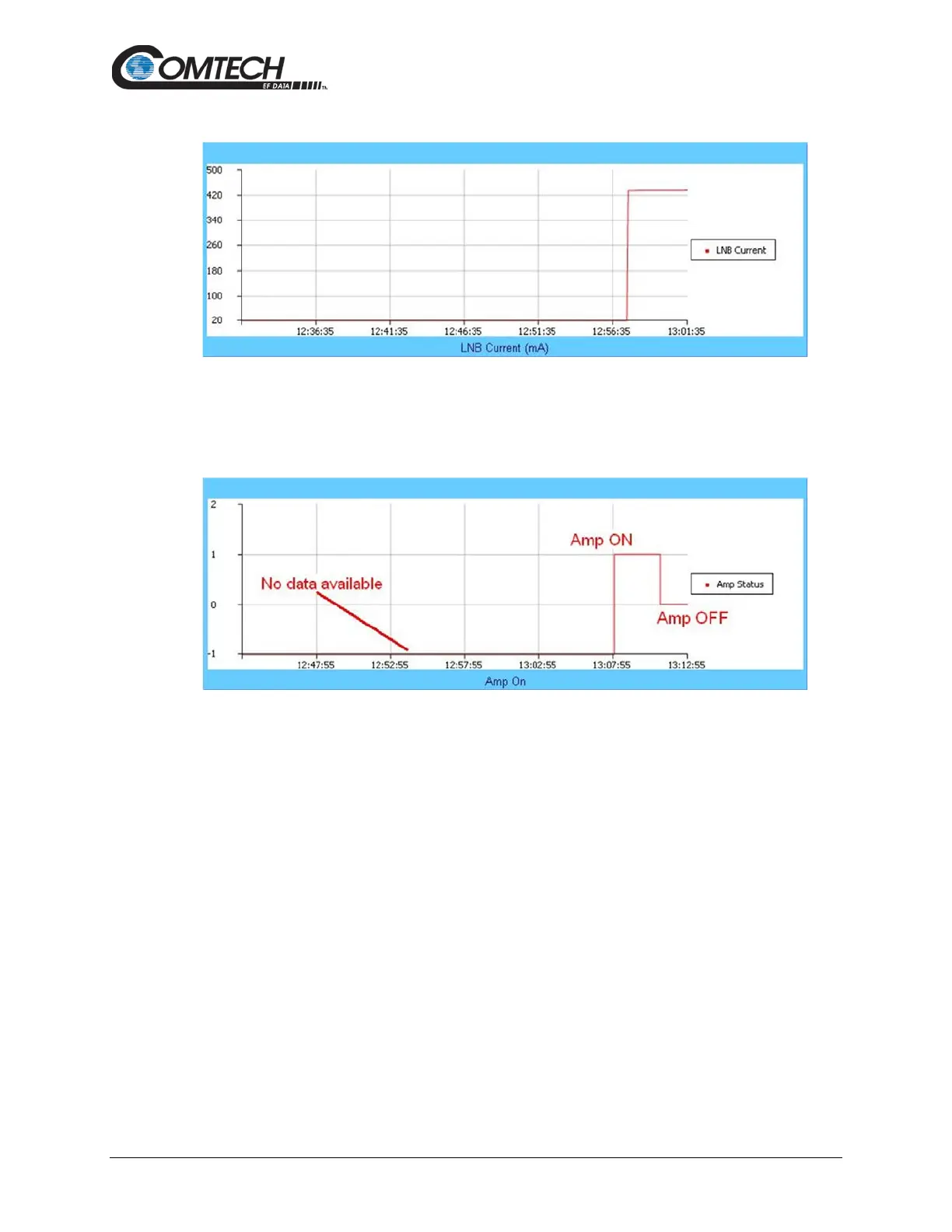

LNB Current Graph
This graph displays the LNB current only if an LNB is connected to the system and is drawing
current from the LNB current source.
Amplifier Status Graph
This graph displays the state of the RF amplifier (On/Off). As per this example:
• On is represented by a 1 (one)
• Off is represented by a 0 (zero)
• If no data is available, then the graph displays -1 (negative one)
