System Connectors, Installation, and Startup 2–21 MN-LPOD
Item
CEFD KIT / QTY REQ’D
CEFD P/N
Description
[dim in mm]
KT-0000083
KT-0000084
KT-0000085
KT-0000289
1
1 – – – FP-0000547
BRACKET, MOUNTING,
1.5” x 2.0” [38.1 x 50.8] SPAR
– 1 – – FP-0000546
BRACKET, MOUNTING,
1.75” x 4.0” [44.4 x 101.6] SPAR
– – 1 – FP-0000545
BRACKET, MOUNTING,
1.0” x 2.5” [25.4 x 63.5] SPAR
– – – 1 FP-0001330
BRACKET, MOUNTING,
72MM x 72MM SPAR
2
2
2
2
2
HW/1/4-FLT
FLAT WASHER, 1/4
3
2
2
2
2
HW/1/4-SPLIT
LOCK WASHER, SPLIT, 1/4
4
2 2 2 2 HW/1/4-20X1-1/4HEX
BOLT, HEX HEAD,
1/4-20 x 1-1/4” LG

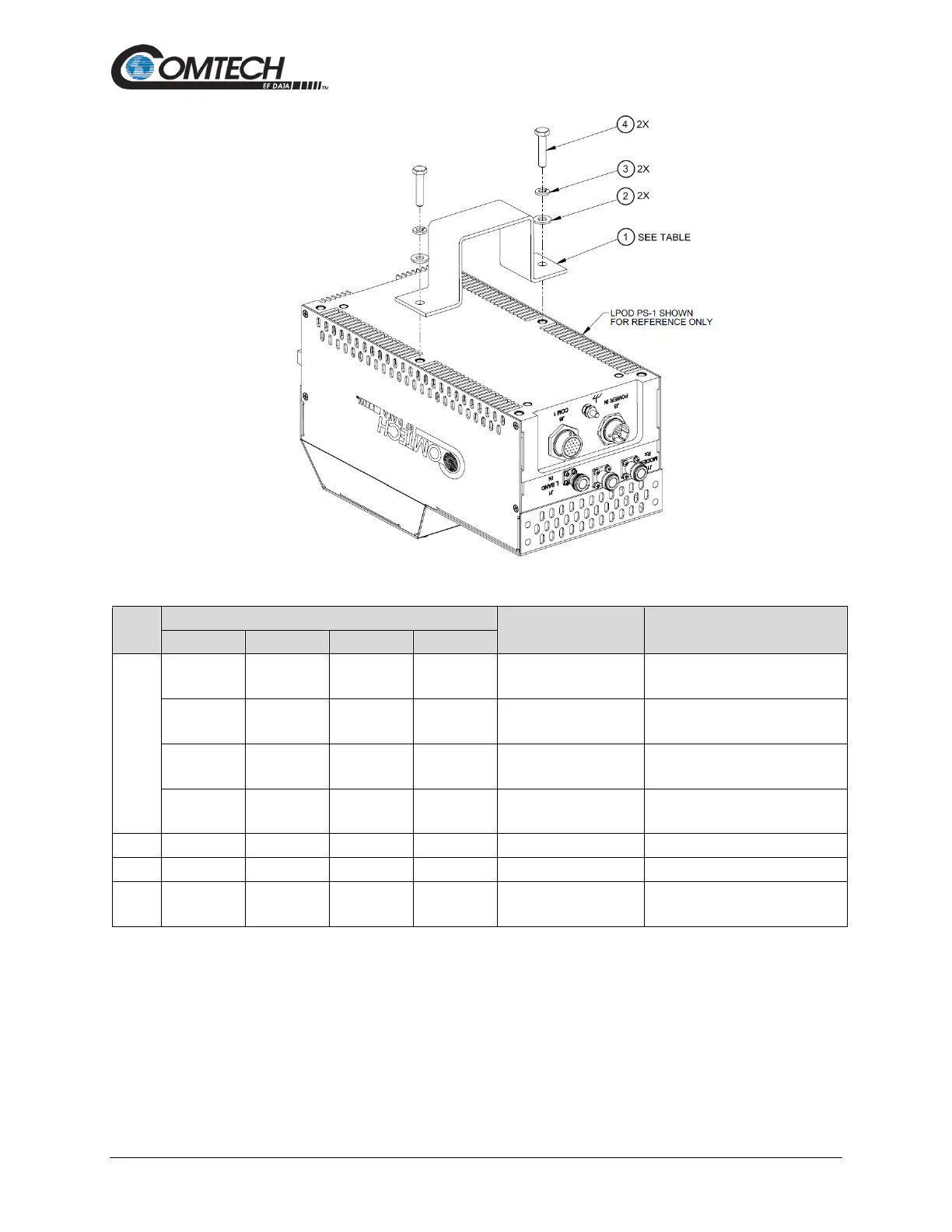

Figure 2-13. Spar Mount Installation Kits for PS 1, PS 1.5
