Contex COUGAR 36 - Fig. 3-2 LME Component Layout

FSG/MTM/001 060511
33

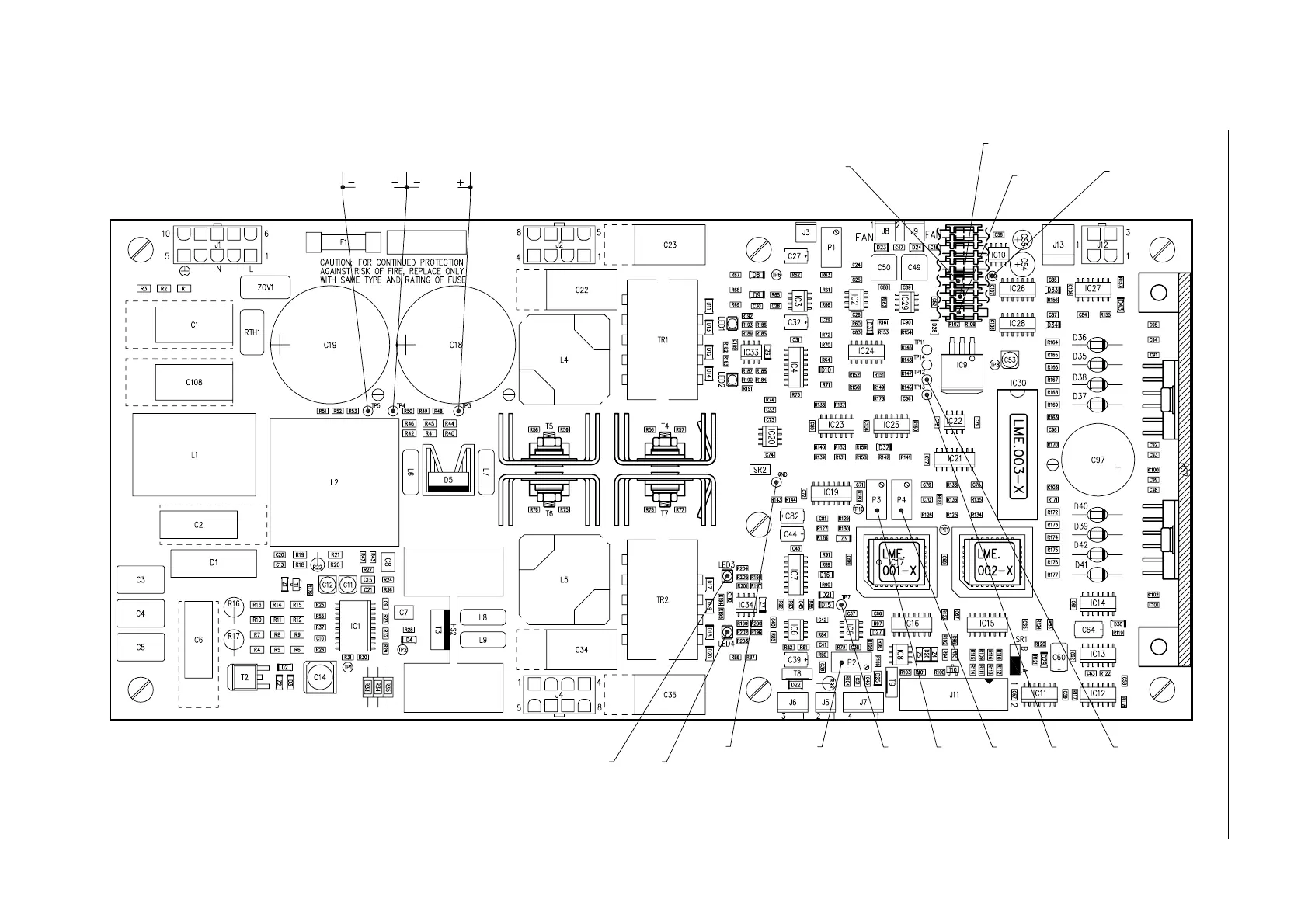

Fig. 3-2 LME Component Layout
LED4
LED3
-5V±0.5V
TP9
TP12*
TP13*
+24V±1V
J10,6
+12V+1/-0V
J10,5
* See text for adjustment procedure
GND
P3*
P4*
P2*
TP7*
TP5
TP4
TP3
+5.3V+0/-0.2V
J10,4
200V
±20V
±20V
200V
