Contex COUGAR 36 - Fig. 3-29 Adjustment of Original-Sensors

FSG/MTM/001 060511
77

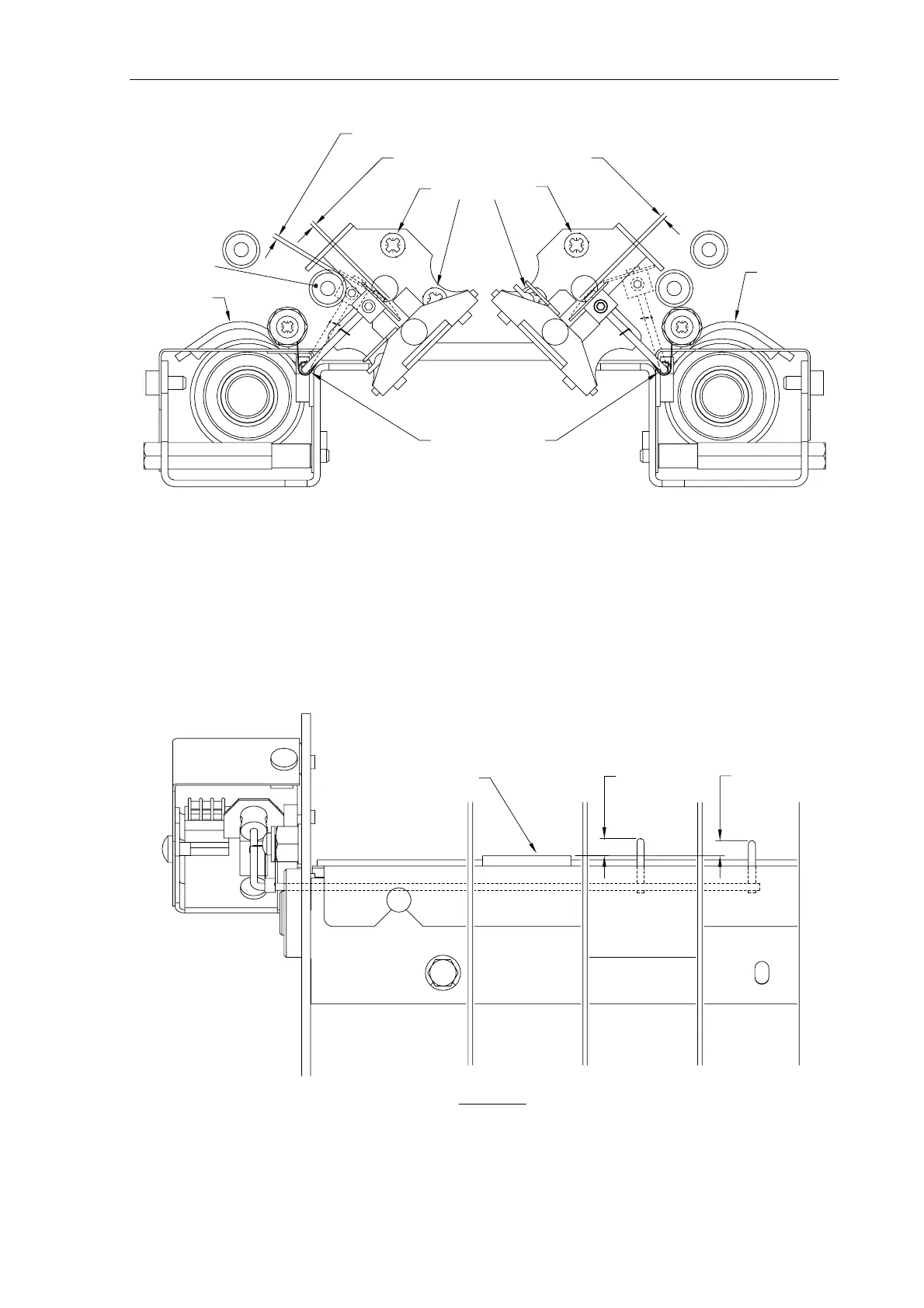

Fig. 3-29 Adjustment of Original-Sensors
Press Nut
Clerance 1:
Make sure that the shutter plates do not touch the legs of the
optointerrupter when moving (clearance >0.5 mm)
Make sure that the shutter plates do not touch the press-nut when
moving (clearance > 0.5mm)
Clerance 2:
Feed Roller
Clearance 2
Clearance 1 Clearance 1
3.9±0.5
(not on 25"
scanners)
3.9±0.5
Exit Sensor
Actuator
Entry Sensor
Actuator
Rear View
Fixing Screws
Torsion Springs
