Contex COUGAR 36 - Page 88

FSG/MTM/001 060511
84

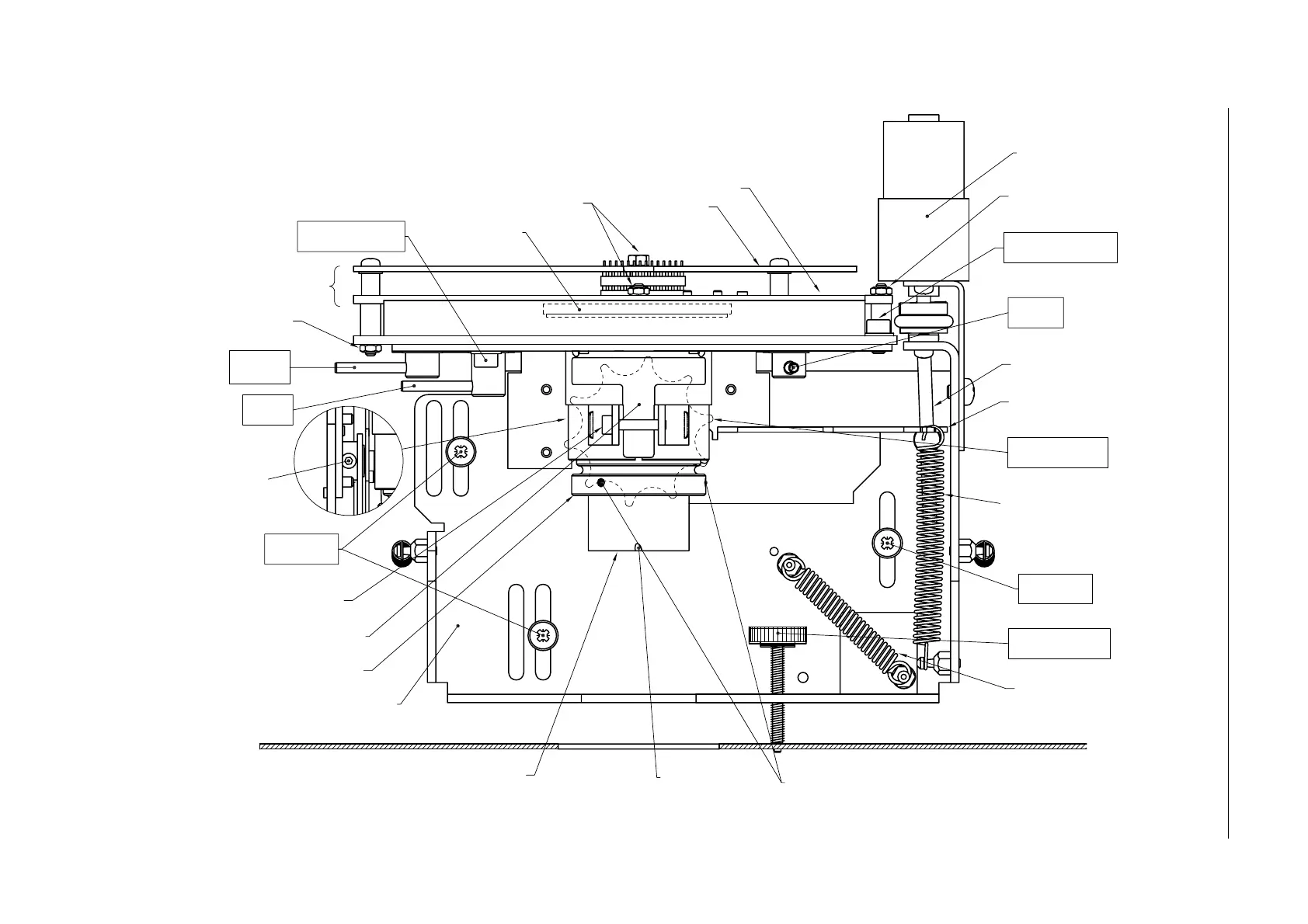

Fig. 4-3 CCD-Camera, Top View
Dot
(pointing upwards)
CCD Mounting Plate
Camera Board
Lens Fixing Screws (3 pcs.)
Vertical
Positioning Wheel
Fixing Nut for CCD Mounting Plate
Lens
Camera Base Plate
Lens
Adapter
Focus
Lock Screw
CCD
Centering
Camera
Fixing Screw
Ve rtic al
Tilt
Fixing Nut for
CCD Mounting Plate
Camera Back-Plate
Fixing Screw
Fix ing Nut fo r
CCD Mounting Plate
Tension Spring for
Vertical Alignment Arm
Vertical Alignment
Screw
Ve rtic al
Tilt
Vertical Alignment Arm
Camera Back-Plate
Fixing Screw (2 pcs.)
Camera
Fixing Screw
Scan Width
Adjustment Screw
Tension Spring for
Camera Alignment
CCD Chip
Camera Board with
CCD and M ounting Plate
Lock Screw
for Vertical
Alignment Arm
Camera Motor
Covering Tape
