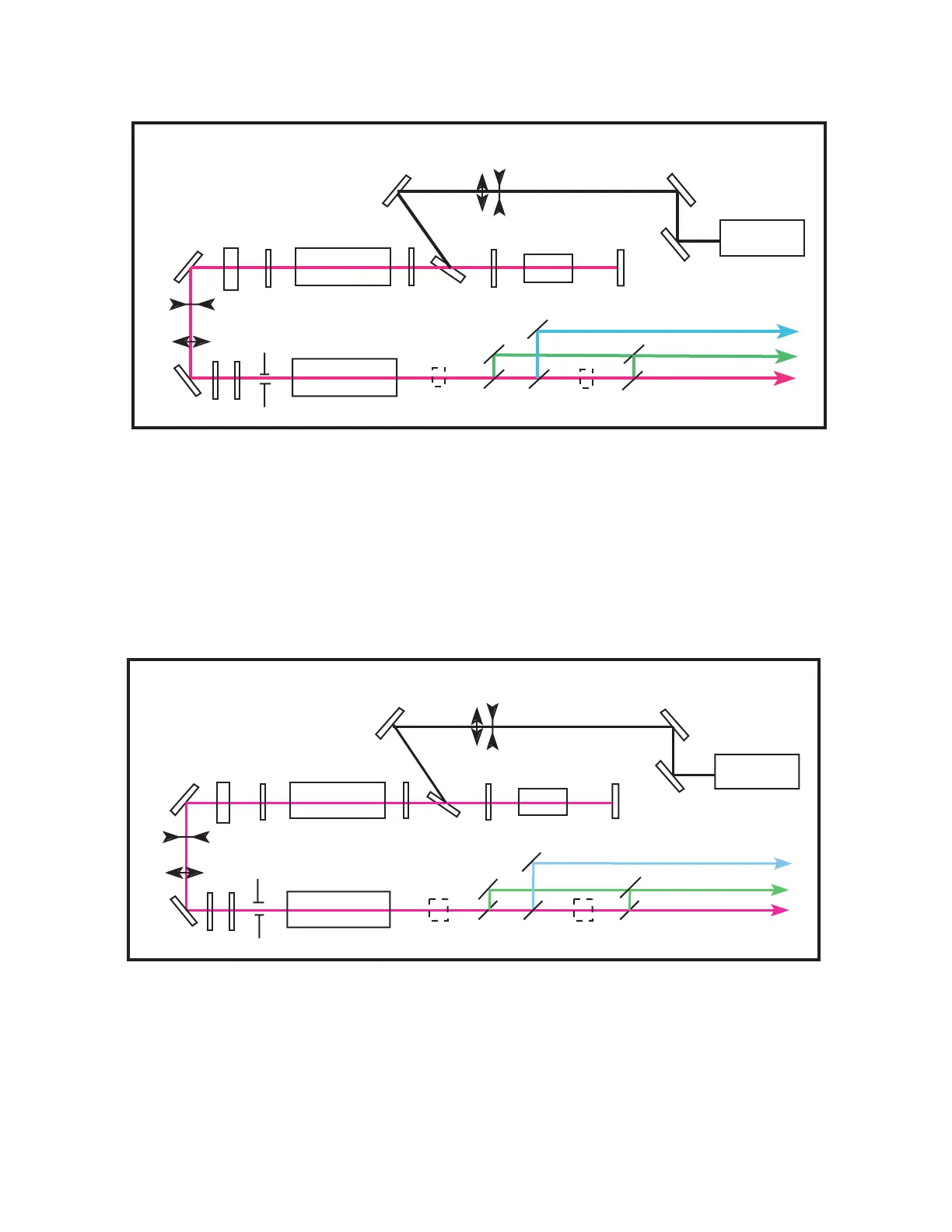

Legend for Precision 8000
1. Mirror, rear, (rep rate
dependent)
2. Pockels cell, 202-0003
3.λ/4 plate, 108-0001
4. Dielectric polarizer, 199-0116
5. 811U-06 head, 507-0700
rod, 6mm, 201-0056
flashlamp, 203-0019
12. 812V-09 head, 507-0900
rod, 9mm, 201-0005
flashlamps, 203-0032
13. Dichroics, 532nm, 105-0022
14. Dichroics, 1064nm, 105-0002
15. Dichroics. 355nm, 105-0023
or 266nm, 105-0025
16. Mirror, 20-32°, 105-0086
6. Output coupler, (rep rate
dependent)
7. Mirror, turning, 45°, 105-0002
8. Div. lens, -104mm, 102-0005
9. Con. lens, +155mm, 101-0001
10. Not used
11. Pinhole
13
seeder
1
2
3
4
3
3
5
6
7c
7d
3
8
9
11
12
14
15
7a
7b
seeder
telescope
16
532
1064
355 or 266
residual 532
& 1064
3
8000
SHG
THG or
FHG
13
14
15
Legend for Precision 8010
1. Mirror, rear, (rep rate
dependent)
2. Pockels cell, 202-0003
3. λ/4 plate, 108-0001
4. Dielectric polarizer, 199-0116
5. 811U-07 head, 507-1000
rod, 7mm, 201-0004
flashlamp, 203-0035
12. 812V-09 head, 507-0900
rod, 9mm, 201-0005
flashlamps, 203-0032
13. Dichroics, 532nm, 105-0022
14. Dichroics, 1064nm, 105-0002
15. Dichroics. 355nm, 105-0023
or 266nm, 105-0025
16. Mirror, 20-32°, 105-0086
6. Output coupler, (rep rate
dependent)
7. Mirror, turning, 45°, 105-0002
8. Div. lens, -104mm, 102-0005
9. Con. lens, +155mm, 101-0001
10. Not used
11. Pinhole
8010
15
seeder
1
2
3
4
3
3
5
6
7c
7d
3
8
9
11
12
13
14
15
7a
7b
seeder
telescope
532
1064
355 or 266
residual 532
& 1064
3
16
1413
THG or
FHG
SHG
